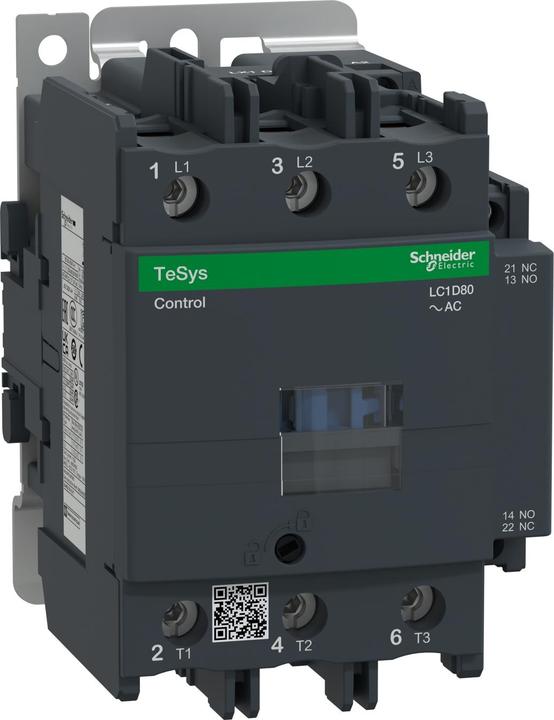

Schneider Electric power contactor LC1D80Q7
Manufacturer: Schneider Electric
Designation: Power contactor 3-pole, 1S, 1Ö
Type: LC1D80Q7
Rated control supply voltage Us at AC 50 Hz: 380 V
Rated control supply voltage Us at AC 60 Hz: 380 V
Voltage type for actuation: AC
Rated operational current Ie at AC-1, 400 V: 125 A
Rated operational current Ie at AC-3, 400 V: 80 A
Rated operational power at AC-3, 400 V: 37 kW
Rated operational current Ie at AC-4, 400 V: 32 A
Rated operational power at AC-4, 400 V: 15 kW
Suitable for series installation: No
Number of auxiliary contacts as NO contacts: 1
Number of auxiliary contacts as NC contacts: 1
Connection type main circuit: Screw connection
Number of NO contacts as main contacts: 3

Further details:
Contactor TeSys LC1D. 3 pole, 3 NO contacts. Additional auxiliary contacts: 1 NO + 1 NC, rated operational power at AC-3, 400 V: 37 kW, rated operational current Ie at AC-3, 400 V: 80 A, coil: 380 V AC.
Dimensions (WxHxD): 85 x 127 x 130 mm, weight: 1.59 kg.
Category: AC-3, AC-1, AC-4.
Without integrated wiring module. Quick and easy set-up. Safe and durable power connection with Everlink and spring terminals. Suitable for safety applications due to mechanically coupled contacts and mirror contacts.
Certifications according to LROS, DNV, GL, UL, CSA, GOST, BV, CCC, RINA.
Product standards: EAN: 3389110442861.
