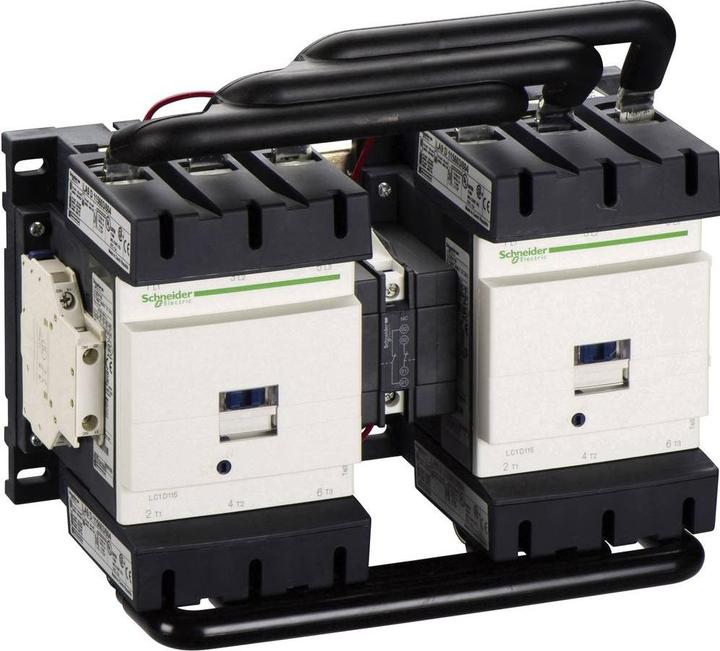

The LC2D150G7 from Schneider Electric is a powerful reversing contactor specifically designed for motor applications. With a rated power of 75 kW at 400 V and a rated operational current of 150 A, this device is ideal for demanding industrial applications. It provides reliable control of motors and allows for easy reversal of rotation direction. The integrated 120 V AC coil, which can operate at both 50 Hz and 60 Hz, ensures flexible application. The device is equipped with mechanical and electrical interlocks that provide additional safety. Installation is done via screw terminals, ensuring a simple and secure connection. The LC2D150G7 is not suitable for DIN rail mounting but offers an IP20 protection rating, which protects it from contact and solid foreign objects.

• Mechanical and electrical interlocks for enhanced safety
• Input voltage of 120 V at 50/60 Hz AC
• 3-pole design for versatile motor applications
• Screw connection for auxiliary and control circuits
• 2 NC and 2 NO auxiliary contacts for flexible control options.
