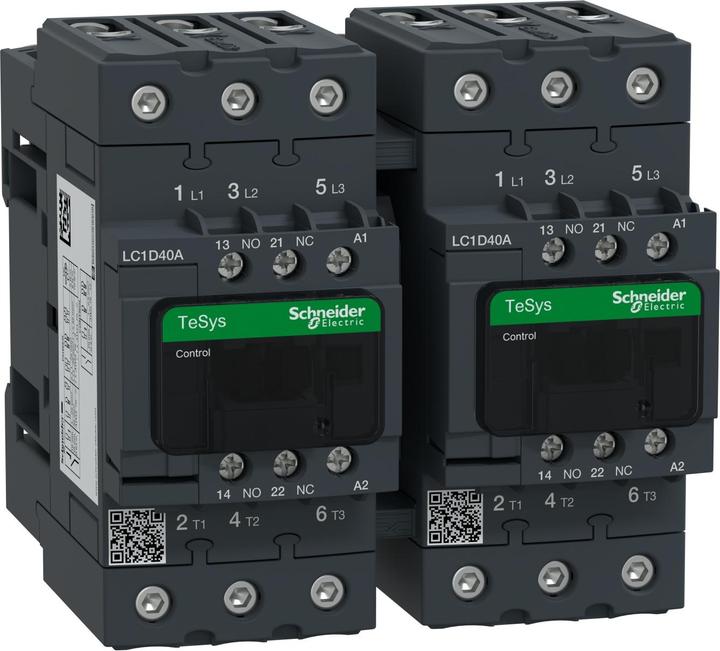

The Schneider Electric reversing contactor LC2D40AF7 is a high-performance relay specifically designed for motor applications. With a rated operational current of 40 A at AC-3 and a maximum switching power of 18.5 kW at 400 V, this device offers a reliable solution for controlling electric motors. The integrated 110 V AC coil is suitable for operation at frequencies of 50 and 60 Hz, allowing for flexible application in various electrical systems. The reversing contactor features three main contacts, as well as two normally open and two normally closed contacts, ensuring precise control of electrical loads. The mechanical interlock provides additional safety during operation. With an IP20 protection rating, the device is suitable for use in protected environments and offers easy installation through screw terminals for auxiliary and control circuits.

• 3-pole reversing contactor for motor applications
• Mechanical interlock for increased safety
• Input voltage of 110 V at 50/60 Hz
• Maximum switching power of 18.5 kW at 400 V
• Screw terminals for auxiliary and control circuits.
