SGX Power Supply with Strong 62A Single Rail
80 PLUS Gold Efficiency (up to 90%)
Fully Modular Cable Management

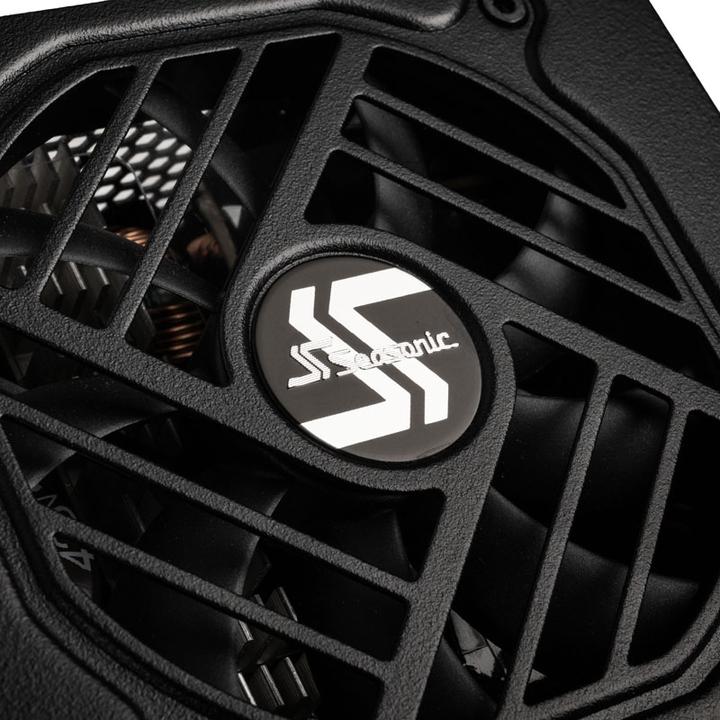

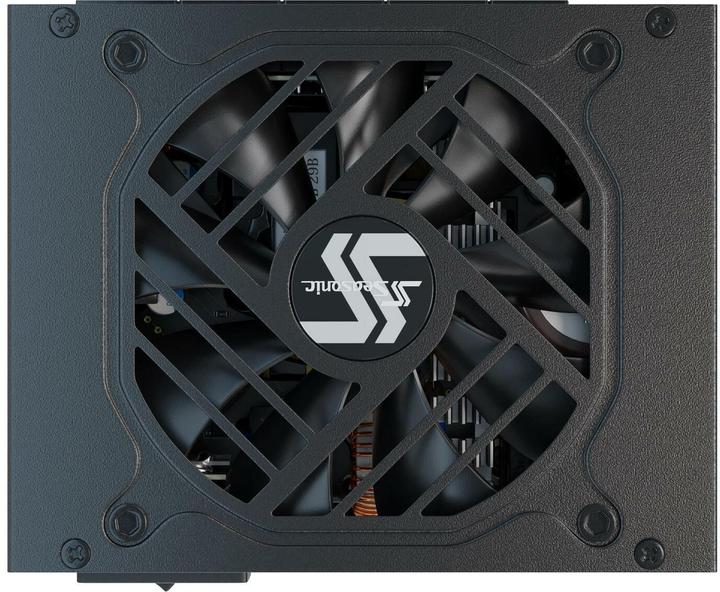

92mm Fan with Three Modes
Four PCIe Connectors for Graphics Cards
High-Quality Cables in Black

Powerful Power Supply with Innovative 3-Phase Fan Curve

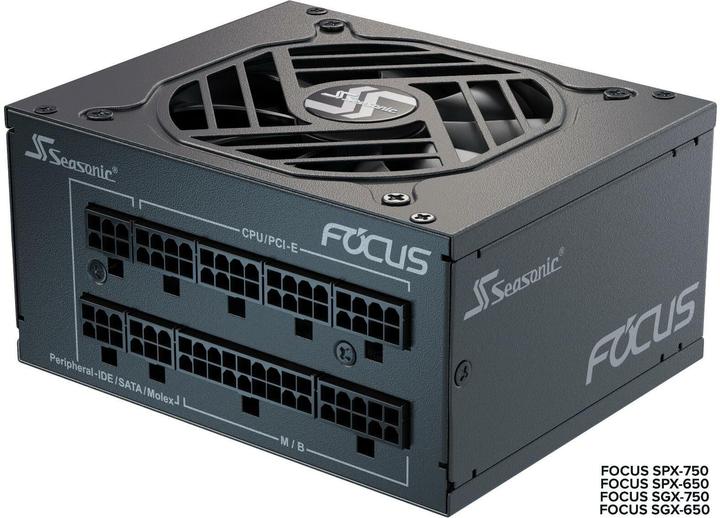

The Seasonic Focus SGX, with its total output power of 750 watts, is suitable for gaming PCs in the mid-range to high-end segment. The power supply operates very efficiently, thanks to the use of high-quality electrical components. This 80 PLUS Gold certified power supply achieves an efficiency of up to 90% at a 50% load.

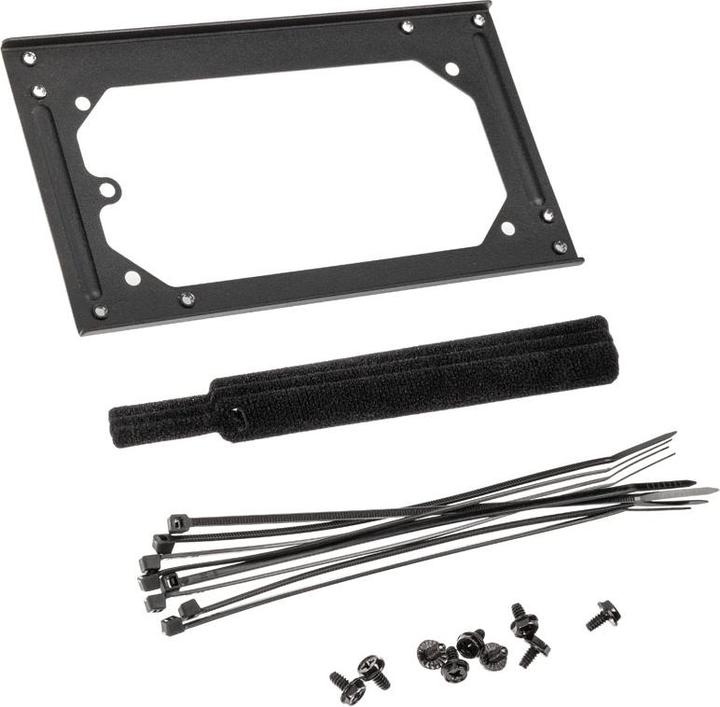

Thanks to the ATX adapter, the power supply can also be installed in the spacious power supply cages of larger midi-tower cases.

Technical Details:
Dimensions: 125 x 63.5 x 100 mm (W x H x D)

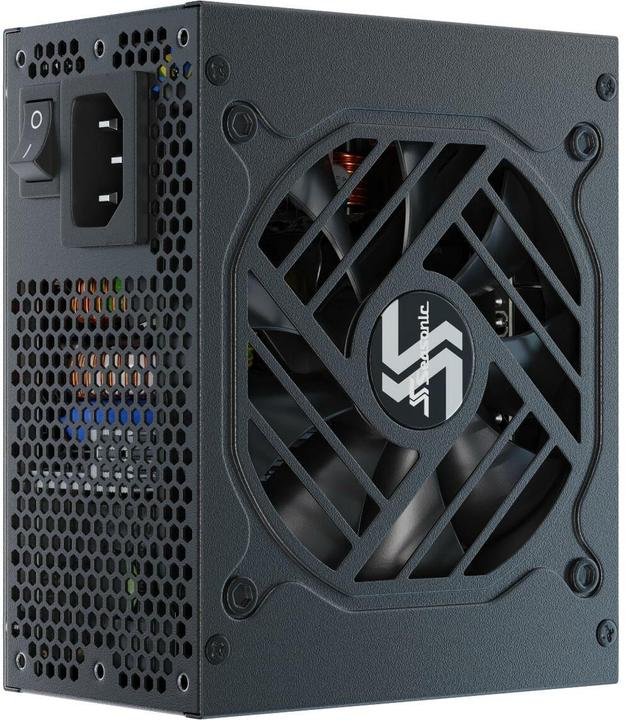

Fan Size: 92 mm
Efficiency: min. 87/90/87% @20/50/100% load at 115V, 80 PLUS Gold Certificate
Form Factor: SFX / ATX (Adapter)
Power: 750 W
+3.3V: 20 A
+5V: 20 A
3.3V+5V: 100 W
+12V: 62 A

• 12V: 0.3 A (3.6 W)

+5Vsb: 3 A (15 W)

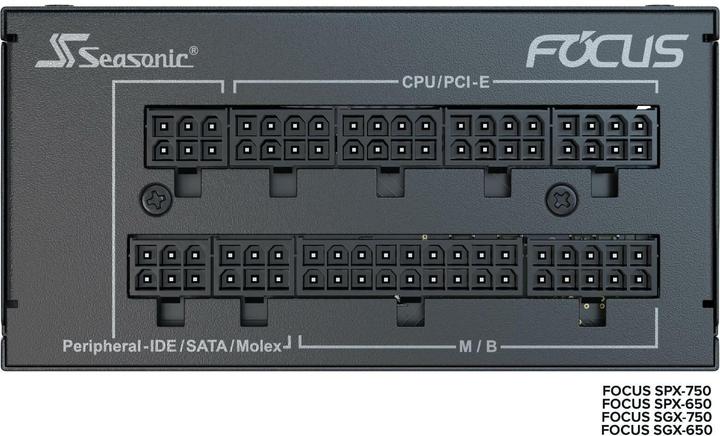

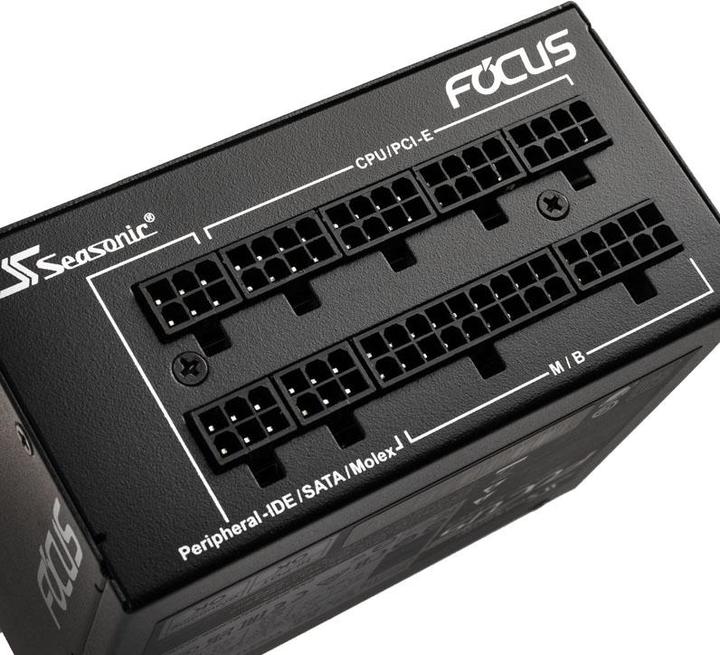

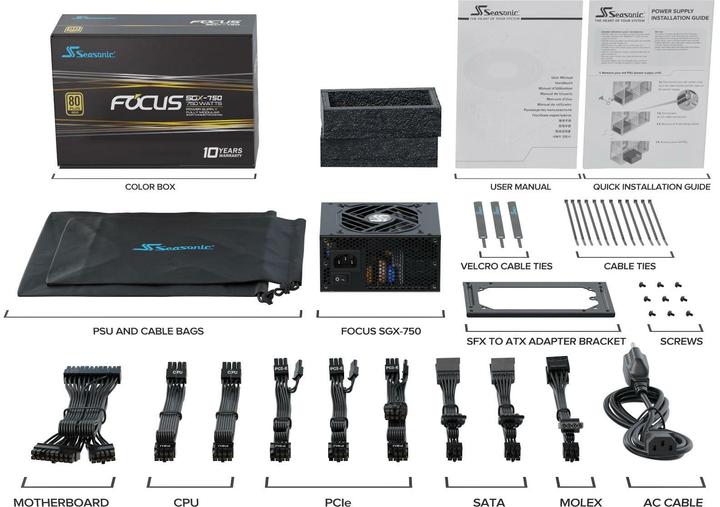

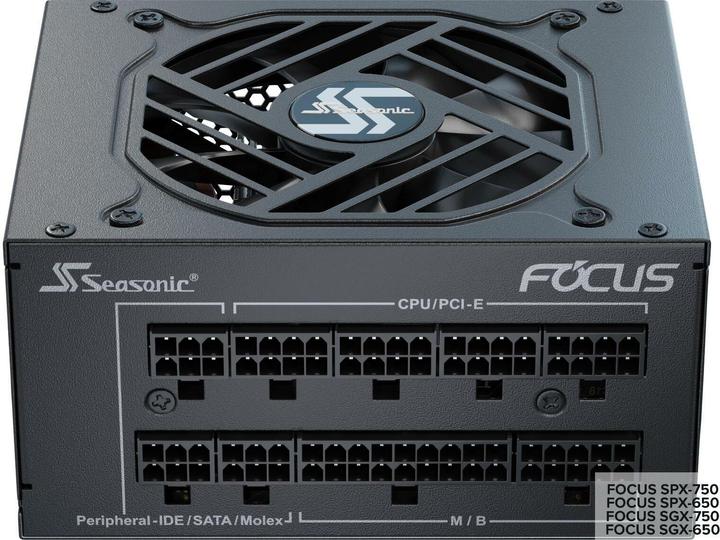

Connections (fixed):
1x 20+4-Pin
2x 4+4-Pin (ATX12V)
4x 6+2-Pin PCIe
6x SATA
3x 4-Pin Molex
Cable Length: 101 - 810 mm
Protection: OPP / OVP / UVP / SCP / OCP / OTP
Safety: cTUVus, TUV, CB, CCC, BSMI, EAC, CE.
