Shuttle Barebone SPCEL02 Intel Celeron J6412 1xSODIMM max 32GB DDR4 2x2.5G LAN
Intel Celeron J6412Only 3 items in stock at supplier
Product details
Edge SPCEL02
Robust Industrial PC with VESA/DIN-Rail Mounting

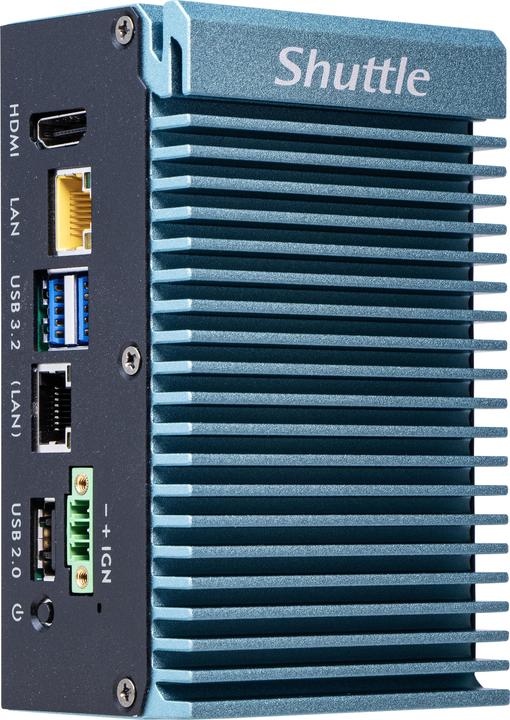

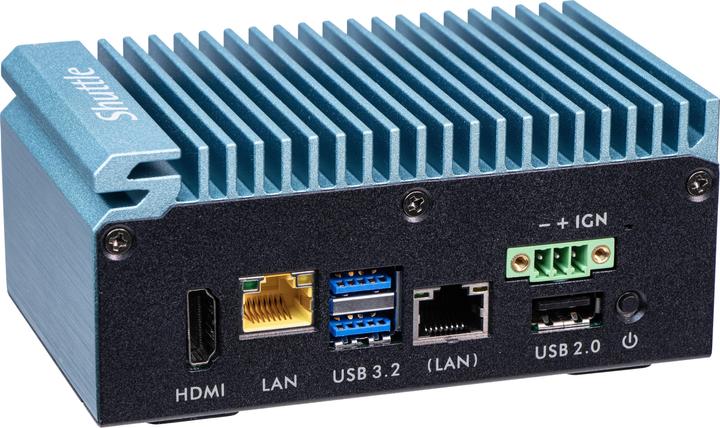

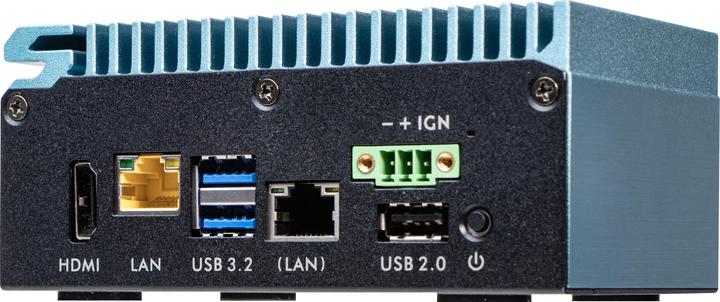

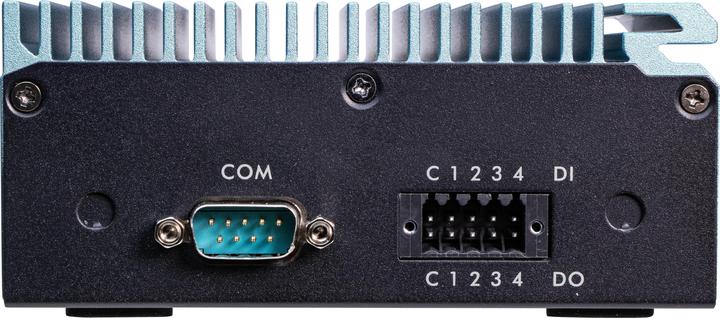

The Shuttle Edge PC SPCEL02 is a fanless IPC barebone housed in a sturdy 450 ml metal case. It can be mounted using DIN-rail or VESA brackets. It is versatile and designed for reliable maintenance-free continuous operation at temperatures up to 40 °C. Internally, it features an Intel Celeron "Elkhart Lake" processor with slots for RAM module, M.2 SSD card, and WLAN card. The compact case offers an impressive variety of connections, including dual network, COM port, and digital I/O. The Shuttle SPCEL02 is aimed at professional applications such as edge computing (IoT gateway), automation, control, digital signage, data acquisition, and video surveillance.
Fanless and Quiet
- Passive cooling through heat convection
- Large aluminum heat sink without a fan, making it virtually silent and ideal for noise-sensitive environments
- Less dust contamination, resulting in virtually maintenance-free operation
24/7 Continuous Operation
- This device is officially approved for 24/7 continuous operation.
Case
- Robust aluminum metal case
- Color: Turquoise (Blue-Green)
- Dimensions: 120 x 75 x 51 mm (LWH) = 460 ml (Height: approx. 53 mm with rubber feet)
- Weight: 720/970 g net (without/with accessories) and 1.2 kg gross
Operating Positions:
1) Mounted on a DIN rail, e.g., in a control cabinet
2) With VESA mount, e.g., behind a suitable monitor (supports 50x50 and 100x100 mm VESA standards)
3) Standing on rubber feet like a desktop PC
Operating System
- This system is delivered without an operating system.
- It is compatible with: Windows 10/11 (64-Bit), Linux (64-Bit)
Processor
- Intel® Celeron® Processor J6412, Quad Core
- Clock frequency: 2.0 GHz, max. Turbo frequency: 2.6 GHz
- Codename: "Elkhart Lake"
- 10 nm manufacturing process, FCBGA1493 package (soldered)
- CPU cores / threads: 4 / 4
- L2 cache: 1.5...
Number of processor cores | 4 -Core |
Graphics card model | Intel UHD Graphics |
Internal connection options | M.2 (1x) |
Network connections | RJ45 (2x) |
Video connections | HDMI Type A |
Memory type | DDR4-RAM |
USB ports | USB-A |
Item number | 52627021 |
Design | Small Form |
Processor type | Intel Celeron J6412 |
Clock frequency | 2 GHz |
Number of processors | 1 x |
Number of processor cores | 4 -Core |
Number of threads | 4 |
Max. turbo clock rate | 2.60 GHz |
Max. TDP | 10 W |
Processor properties | Onboard processor |
Memory type | DDR4-RAM |
Memory form factor | SO-DIMM |
Number of pins | 260 x |
Memory chip compatibility | DDR4-3200 |
Memory Slots available | 1 |
Max. memory slots | 1 |
Max. RAM | 32 GB |
Memory voltage | 1.20 V |
Graphics card model | Intel UHD Graphics |
Internal connection options | M.2 (1x) |
Data storage controller | Intel SoC |
"Number of 2.5"" drive slots" | 1 x |
USB ports | USB-A |
Exact USB ports | USB-A 3.2 Gen 2 (2x) |
Network connections | RJ45 (2x) |
Max. port speed | 2500 Mbit/s |
Connectivity | Ethernet |
Video connections | HDMI Type A |
Power | 90 W |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | DIN-RAIL MOUNTING, Ear mounting |
Weight | 720 g |
Width | 120 mm |
Length | 75 mm |
Height | 51 mm |
