Siemens Digital Industry Auxiliary Relay 3RH2131-1BW40

Manufacturer: Siemens Digital Industry

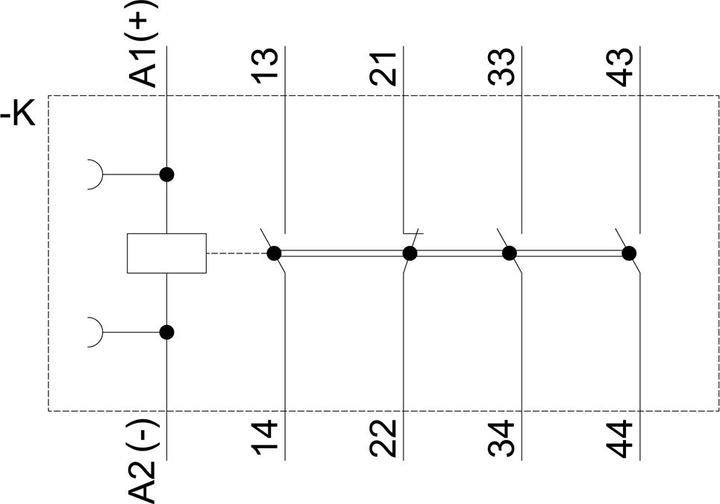

Designation: Auxiliary Relay 3S+1Ö 48VDC S00
Type: 3RH2131-1BW40
Rated control supply voltage Us at AC 50 Hz: 0 V
Rated control supply voltage Us at AC 60 Hz: 0 V
Rated control supply voltage Us at DC: 48 V
Type of voltage for actuation: DC
Rated operational current Ie, 400 V: 3 A
Connection type for auxiliary circuit: Screw connection
Interface: no
Number of auxiliary contacts as normally open: 1
Number of auxiliary contacts as normally closed: 3
With LED indication: no
Suitable for manual operation: no

Siemens Digital Industry Auxiliary Relay 3RH2131-1BW40: additional details
Auxiliary relay, 3 S + 1 Ö, DC 48V, size S00, screw connection. SIRIUS 3RH2 auxiliary relay for switching control signals in the control circuit. The SIRIUS 3RH2 auxiliary relays have standardized connection designations and a reliable, time-saving connection technology. Output multiplication allows for the simultaneous switching of multiple auxiliary circuits. All contacts are available with forced guidance for safety applications, also as SUVA variants. The auxiliary relays are climate-resistant, have high contact reliability, and are suitable for worldwide use with appropriate approvals (e.g., IEC and UL/CSA). They are available for AC or DC actuation and come with screw or spring connection technology. The basic version of the auxiliary relays is 4-pole and can be expanded to up to 8 poles with snap-on auxiliary switches. The extensive accessories for relays 3RT2 for sizes S00 to S3 can also be used for the 3RH2 auxiliary relays. The 3RH2 auxiliary relays replace the proven 3RH1 series. Simple, efficient, always up to date - the SIRIUS system modular concept.
EAN: 4011209848894.
