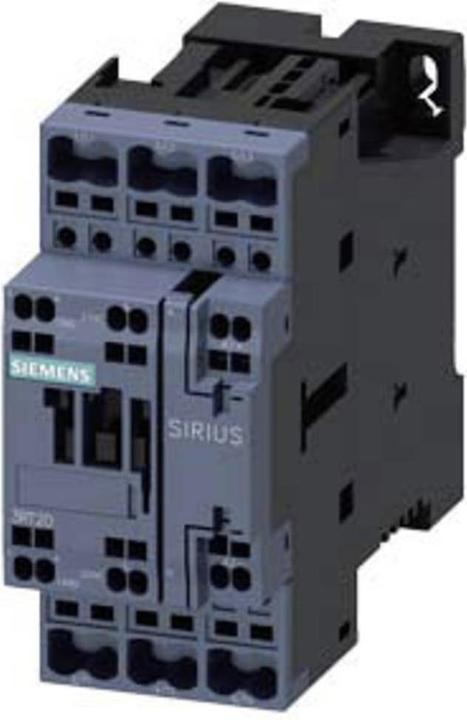

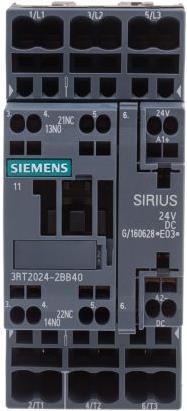

Siemens Contactor 5,5kW 24Vdc size 0
Only 4 items in stock at supplier
Product details
Range: Sirius Innovation
Series: 3RT2
Number of poles: 3
Coil voltage: 24 V DC
Nominal contact current: 12 A
Nominal contact voltage: 400 V AC

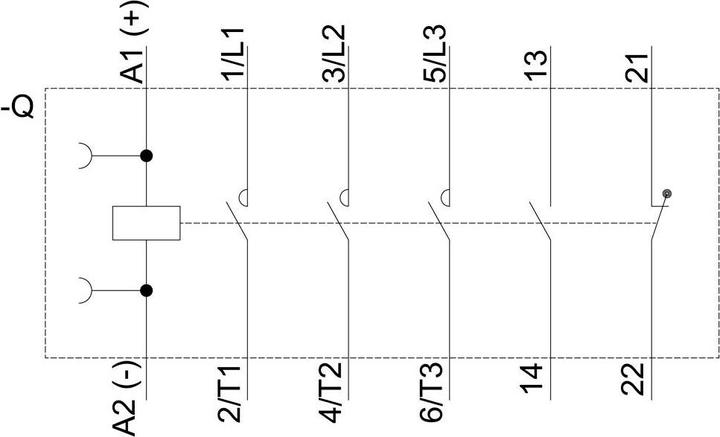

Contact configuration: 3 NO contacts
Number of auxiliary contacts: 2
Power: 5.5 kW (AC3)
Connection type: Spring-cage terminal block

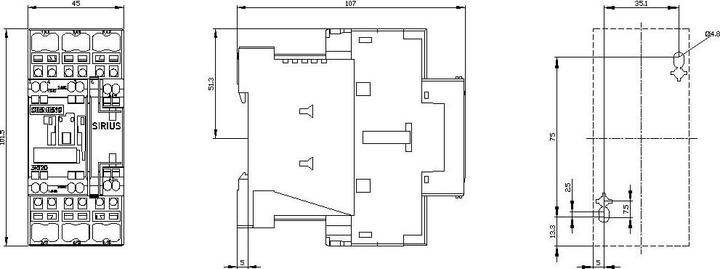

Width: 45 mm
Depth: 107 mm
CE, UL, CSA, CCC. Screw terminals can only be used with overload relays for screw terminals, and spring terminals can only be used with overload relays for spring terminals. Contactors - 3RT2 series. Contactors 3RT2 are weatherproof and suitable for worldwide use, sizes S00 to S2, up to 37 kW. Size S00, up to 7.5 kW; Size S0, up to 18.5 kW; Size S2, up to 37 kW. Screw terminal / spring terminal. Impulse withstand voltage: 6 kV. Insulation voltage: 690 V. Active power loss of only 4 W. Designation K according to DIN 40719 (expandable to IEC 204-2) and IEC 750; Q according to DIN EN 61346-2.
input voltage | 24 V |
Output current type | DC |
Relay type | Power contactor |
Item number | 9731845 |
Manufacturer | Siemens |
Category | Relays |
Manufacturer no. | 3RT2024-2BB40 |
Release date | 24.9.2018 |
External links |
Relay type | Power contactor |
input voltage | 24 V |
Output current type | DC |
Manufacturer Type | 3RT2024-2BB40 |
Smart Home | Not compatible |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Siemens fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Length | 115 mm |
Width | 45 mm |
Height | 102 mm |
