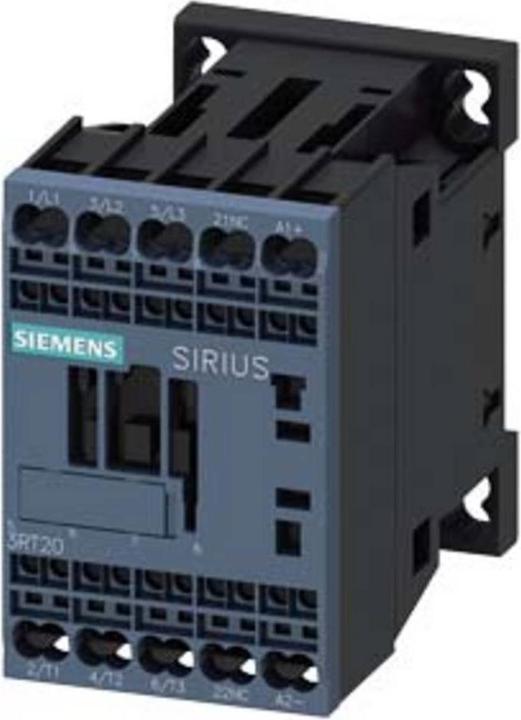

Siemens Dig.Industr. Coupling Relay 3RT2017-2KB42

Manufacturer: Siemens Dig.Industr.
Designation: Coupling Relay 5.5 kW/400 V 1Ø 24 VDC
Type: 3RT2017-2KB42
Rated Control Supply Voltage Us at DC: 24 V
Voltage Type for Actuation: DC
Number of Normally Open Contacts as Main Contacts: 3
Connection Type Main Circuit: Spring Terminal Connection
Rated Operational Current Ie at AC-1, 400 V: 22 A
Rated Operational Current Ie at AC-3, 400 V: 12 A
Rated Operational Power at AC-3, 400 V: 5.5 kW
Rated Operational Current Ie at AC-4, 400 V: 8.5 A
Rated Operational Power at AC-4, 400 V: 4 kW
Rated Operational Power NEMA: 5.51624062 kW
Number of Auxiliary Contacts as Normally Open: 1
Suitable for Rail Mounting: Yes

Siemens Dig.Industr. Coupling Relay 3RT2017-2KB42: Additional Details

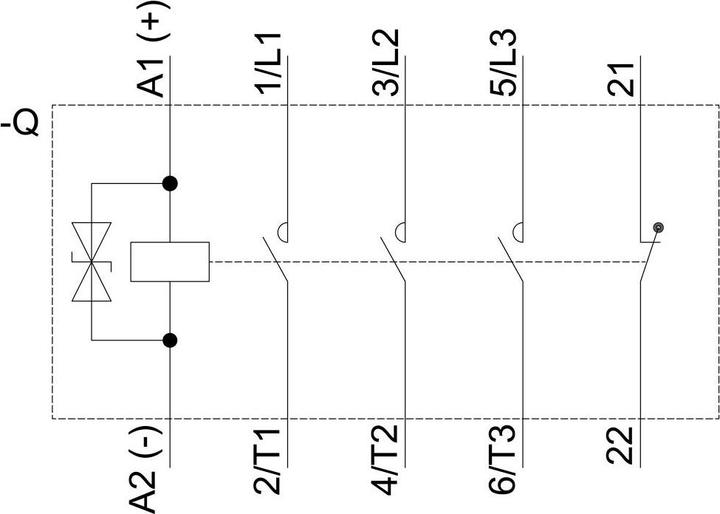

Power Relay, AC-3e/AC-3, 12 A, 5.5 kW / 400 V, 3-pole, DC 24 V, 0.7-1.25* US, with integrated suppression diode, auxiliary contacts: 1 NO, spring terminal connection, size: S00, suitable for PLC outputs, not expandable with auxiliary switch.

SIRIUS 3RT2 coupling relay for switching motors and auxiliary and control circuits, specifically designed for direct connection to electronic controls. The 3RT2 relays are part of the SIRIUS system modular kit with optimally coordinated products. They impress with high performance while maintaining a compact design and high contact reliability. They can be combined in various ways with other components in the load branch. Many device combinations are factory tested. Integrated auxiliary contacts reduce the complexity of your setup. The front connections allow for easy wiring. The 3RT2 relays are climate-resistant, globally approved (e.g., IEC and UL/CSA), and IE3/IE4 ready. In addition to screw connection technology, the devices are also available with spring terminal connection for quick, maintenance-free, and vibration-resistant connections. Simple, efficient, always up-to-date - the SIRIUS system modular kit.

EAN: 4011209847057.
