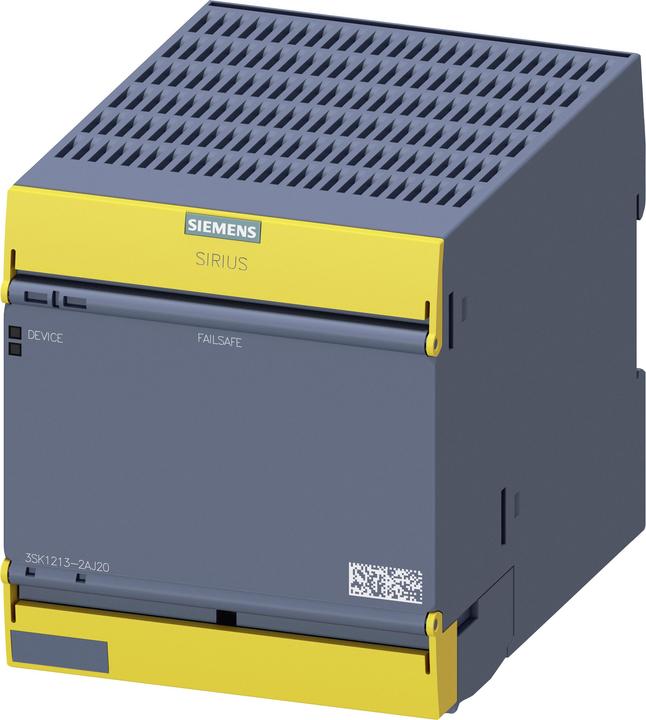

Siemens Digital Industry Safety Relay 3SK1213-2AJ20

Manufacturer: Siemens Digital Industry
Designation: Safety Relay 3RO Power
Type: 3SK1213-2AJ20
Design: other
Type of electrical connection: Spring terminal connection
Rail mounting possible: no
Rated control supply voltage Us at AC 50 Hz: 115 V
Rated control supply voltage Us at AC 60 Hz: 115 V
Type of voltage for actuation: AC
With removable terminals: no
With muting function: no
With feedback circuit: no
Stop category according to IEC 60204: 0
Performance Level according to EN ISO 13849-1: Level e
SIL according to IEC 61508: 3
With UL approval: yes

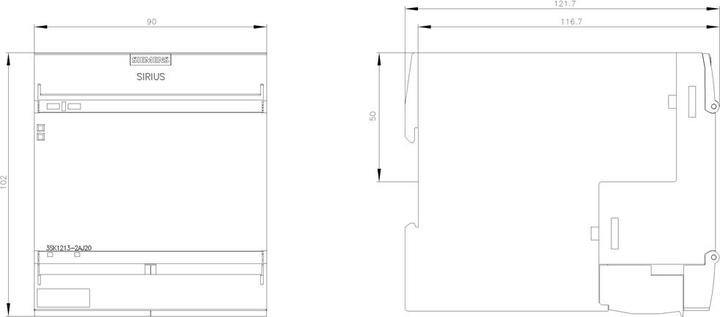

Width: 90 mm
Height: 100 mm
Depth: 121.6 mm
With TÜV approval: yes

Siemens Digital Industry Safety Relay 3SK1213-2AJ20: additional details
SIRIUS Safety Relay Output Expansion 3RO Power, with relay release circuits 3 normally closed plus relay signaling circuit 1 normally open
Us = 115 V AC
Spring terminal connection (Push-In)
Output expansion SIRIUS 3SK1 for safety relays. The 3SK output expansions serve to supplement a basic device with additional safe outputs with a switching capacity of up to 10 A. They can be connected to any 3SK basic device through wiring. All devices with a control supply voltage of DC 24 V can also be connected to the Advanced 3SK1 and 3SK2 basic devices using device connector 3ZY12. The devices feature four (AC-15 5 A) or three (AC-15 10 A) safe outputs. There is a choice between a control voltage of 24 V or wide voltage. Available with screw or spring terminal connection (Push-In). The 3SK safety relays replace the proven series 3TK28. Safety is a SIRIUS business.
EAN: 4011209913844.
