Siemens Digital Industrial Safety Relay 3SK1213-2AB40

Manufacturer: Siemens Digital Industries
Designation: Safety Relay 3RO Power
Type: 3SK1213-2AB40
Version: Other
Electrical connection type: Spring terminal connection
Rail mounting possible: No
Rated control supply voltage Us at DC: 24 V
Voltage type for actuation: DC
With removable terminals: No
With muting function: No
With feedback circuit: No
Stop category according to IEC 60204: 0
Performance level according to EN ISO 13849-1: Level e
SIL according to IEC 61508: 3
With UL approval: Yes

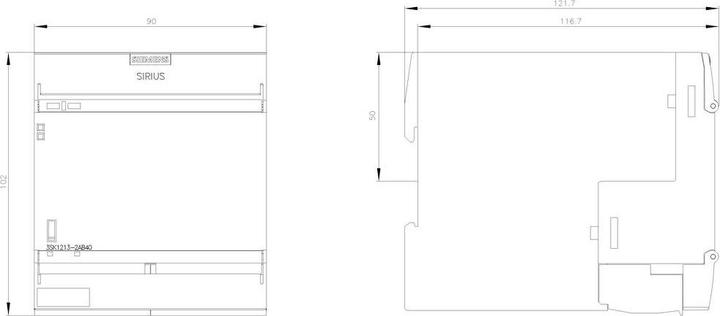

Width: 90 mm
Height: 100 mm
Depth: 121.6 mm
With TÜV approval: Yes

The Siemens Digital Industrial Safety Relay 3SK1213-2AB40 offers further details:

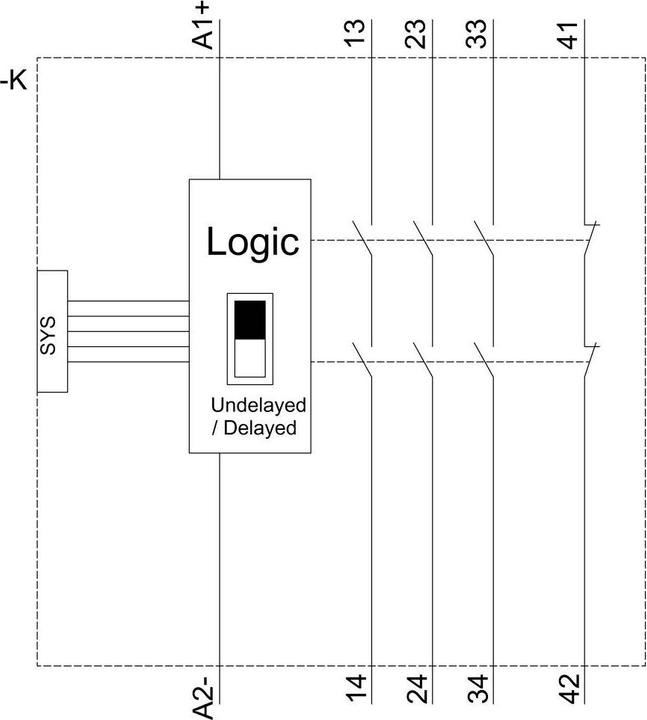

SIRIUS Safety Relay Output Extension 3RO Power, with relay release circuits (3 normally open contacts plus relay signaling circuit 1 normally closed contact). Us = 24 V DC. Spring terminal connection (Push-In).

The output extensions 3SK serve to complement a basic device with additional safe outputs with a switching capacity of up to 10 A. They can be connected to any 3SK basic device through wiring. All devices with a control supply voltage of DC 24 V can also be connected to the basic devices Advanced 3SK1 and 3SK2 via device connector 3ZY12.

The devices feature four (AC-15 5 A) or three (AC-15 10 A) safe outputs. There is a choice between a control voltage of 24 V or wide voltage. Available with screw or spring terminal connection (Push-In).

The 3SK safety relays replace the proven series 3TK28. Safety is a SIRIUS business.
EAN: 4011209913837.
