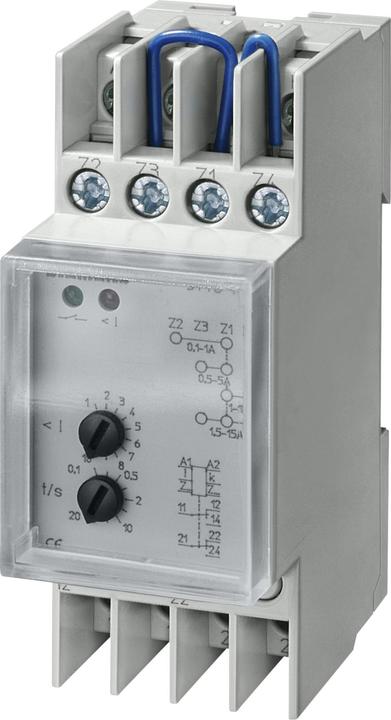

Siemens Digital Industry Undercurrent Relay T5570 5TT6113

Manufacturer: Siemens Digital Industry
Designation: Undercurrent Relay T5570 30V 1/5/10/15A 1-phase
Type: 5TT6113
Electrical connection type: Screw connection
With removable terminals: no
1-phase undercurrent possible: yes
3-phase undercurrent possible: no
1-phase overcurrent possible: no
3-phase overcurrent possible: no
1-phase window possible: no
3-phase window possible: no
Includes DC undercurrent function: no
Includes DC overcurrent function: no
DC window function: no
Rated control supply voltage Us at AC 50 Hz: 207..230 V
Rated control supply voltage Us at AC 60 Hz: 230..253 V
Type of voltage for actuation: AC
Current measurement range: 15 A
Min. adjustable drop-out delay time: 0.1 s
Max. permissible drop-out delay time: 20 s
Number of contacts as changeover: 2

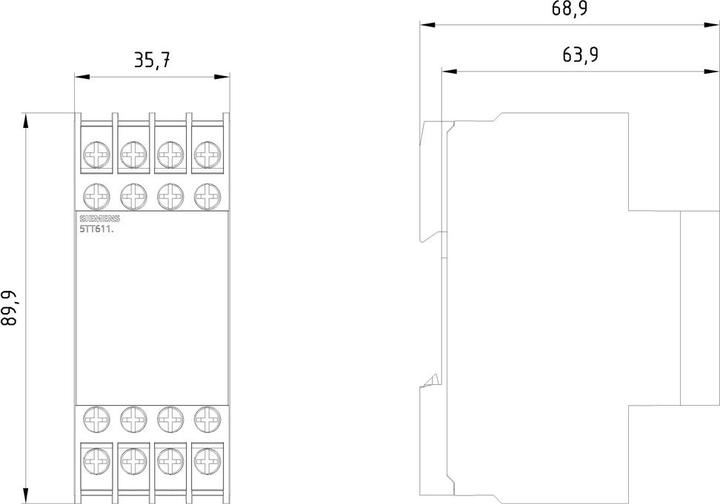

Width: 36 mm
Height: 90 mm
Depth: 64 mm

Siemens Digital Industry Undercurrent Relay T5570 5TT6113: additional details
Undercurrent relay T5570 AC 230V 1/5/10/15A 1-phase with clear cover. Siemens switching devices for applications in residential, commercial, and industrial sectors. The innovative switching devices from Siemens are an essential part of the SENTRON components for electrical installation. With remote switches, switching relays, Insta-contactors, and timers, they offer numerous options for implementing various switching functions. Whether for residential construction, infrastructure, or industrial applications, Siemens provides the right portfolio for all switching functions. This ensures that you have the right device for every requirement! Siemens switching devices are characterized primarily by:
1. Comfortable and easy mounting and connection technology.
2. Reliable safety during installation thanks to standard touch protection.
3. Extensive and easily mountable accessories.
4. Optimal technology for your safety - only from Siemens.
EAN: 4001869183039.
