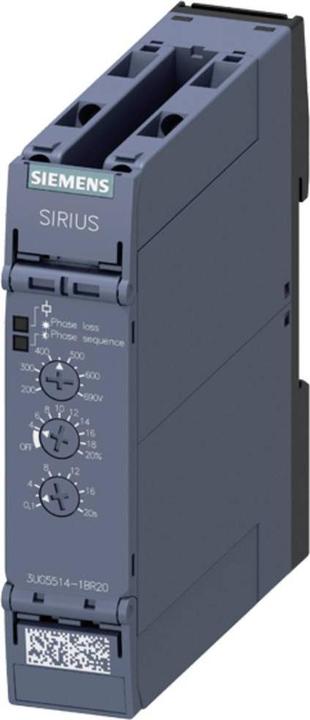

Siemens SIEM mains monitoring relay

Price in EUR including VAT
Delivered between Tue, 14.4. and Thu, 16.4.
Only 1 piece in stock at supplier
free shipping

Product details

Analog adjustable monitoring relay for phase failure, phase sequence, asymmetry, and undervoltage monitoring. Suitable for 3x 160-690 V AC, 15-70 Hz with 2 changeover contacts and screw terminals. The analog adjustable network monitoring relay SIRIUS 3UG5 monitors phase sequence, failure, and asymmetry as well as undervoltage, for example, in mobile installations such as air conditioning compressors, refrigerated containers, construction site compressors, cranes, or solar and wind power plants. It is globally applicable due to international certifications. The space requirement in the control cabinet is reduced thanks to the narrow design. All versions come with removable terminal blocks. In addition to screw terminal technology, the devices are also available with spring-loaded terminals for a quick, maintenance-free, and vibration-resistant connection. Variants with a wide voltage range without auxiliary voltage can be used in all power grids worldwide. The comprehensive accessories, such as device labeling plates, replacement terminals, and sealing covers, are uniform for all relays. The network monitoring relays 3UG5 replace the proven series 3UG4. SIRIUS relays - a program for all cases.

Key specifications

Relay type
Monitoring relay
Output voltage
400 V
Electric current output
3 A
Output current type
AC
Number of poles
3x

General information

Item number
38681046
Manufacturer
Siemens
Category
Relays
Manufacturer no.
3UG55141BR20
Release date
18.9.2023

Relay properties

Relay type
Monitoring relay
Output voltage
400 V
Electric current output
3 A
Output current type
AC
Switching function
Changer
Number of poles
3x
Max. Switching capacity
1.20 kW

Origin

Country of origin
Germany

Sustainability

Manufacturer commitment
RE100SBTi

Voluntary climate contribution

CO₂ emissions
29,26 kg
Climate contribution
EUR 0,74

Scope of delivery

Scope of delivery
1 pc

Product dimensions

Length
90 mm
Width
22.50 mm
Height
100 mm
