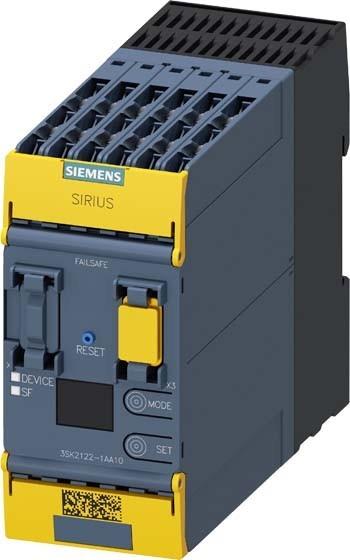

The SIRIUS safety switchgear from Siemens' basic device series 3SK2 is a highly advanced solution for demanding safety applications. With a compact design of 45 mm in width, this device offers a variety of inputs and outputs designed for the implementation of multiple independent safety functions. It supports a parameterizable configuration via the SIRIUS Safety Engineering software, enabling easy commissioning and comprehensive diagnostic capabilities. The semiconductor outputs and the option for expansion through additional output extensions provide flexibility and adaptability for various applications. The device meets high safety standards, including SIL 3 according to IEC 62061 and Performance Level e according to ISO 13849-1, making it a reliable choice for safety-critical environments. Integration into existing systems is facilitated by the use of device connectors for motor starters and coupling relays, simplifying installation and maintenance.

• Parameterizable via SIRIUS Safety Engineering software
• Meets SIL 3 (IEC 62061) and Performance Level e (ISO 13849-1)
• Flexible expandability through 3SK1 output extensions
• Extensive logic functions for independent shutdowns
• Easy implementation of muting and safety door monitoring with pre-configured logic blocks.
