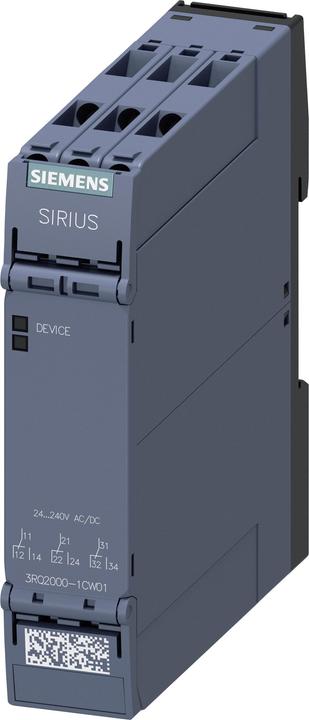

Siemens digital industrial coupling relay 3RQ2000-1CW01

Manufacturer: Siemens Digital Industries
Designation: Coupling relay 3W, AC/DC 24-240V
Type: 3RQ2000-1CW01
Electrical connection type: Screw connection
With removable terminals: No
Rated control supply voltage Us at AC 50 Hz: 24-240 V
Rated control supply voltage Us at AC 60 Hz: 24-240 V
Rated control supply voltage Us at DC: 24-240 V
Voltage type for actuation: AC/DC
Drive, polarity: Polarized
Switching behavior of the drive: Monostable

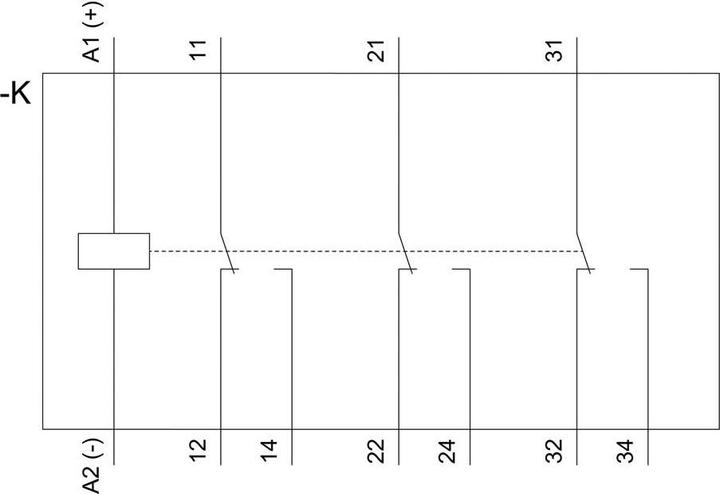

Number of contacts as changeover: 3
With forced-guided contacts: No
Complete device with base: No
With LED display: Yes
Protection class (IP): IP20

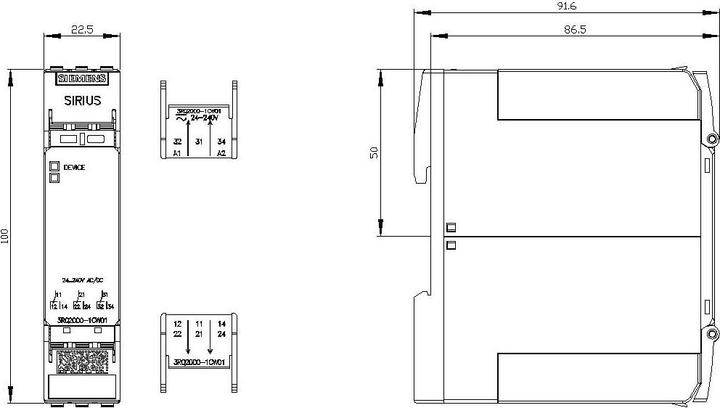

Width: 22.5 mm
Height: 100 mm
Depth: 90 mm

Siemens digital industrial coupling relay 3RQ2000-1CW01: Additional details
Coupling relay in industrial housing, 3 changeover contacts, hard gold-plated, wide voltage AC/DC 24 V to 240 V, screw connection. Coupling relay in industrial housing SIRIUS 3RQ2 for coupling control signals to and from a control system. All coupling relays 3RQ2 feature a wide range voltage input, making them universally applicable. The reduction of variants leads to cost savings. High contact reliability is maintained even at low currents. Removable terminals allow for easy device replacement and quick wiring. Devices are available with one to three changeover contacts, with screw or spring-loaded connection (Push-In), some also with hard gold-plated contacts for switching small currents. The coupling relays 3RQ2 replace the proven series 3RS18. SIRIUS relays - a program for all cases.
EAN: 4047621050447.
