Supply voltage = 100 → 127 V
Time range = 0.5 → 10 s
Operating mode = switch-on delay
Mounting type = DIN rail
Number of time functions = Single
Number of contacts = 1
Time period = Seconds
Power supply = External
Contact arrangement = 1-pole changeover switch
Current max = 1 (DC) A, 3 (AC) A
Connection type = Screw mounting
Delay time = 11 ms

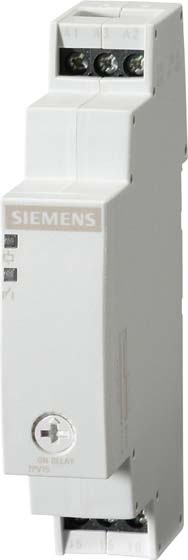

Siemens SIRIUS 7PV15 - timing relay with on-delay. 7PV15 series solid state timing relay for general use in control, start and protection circuits for all switching operations with delays, e.g. in public buildings, airports, industrial buildings, etc. On-delay function Front panel rotary switch LED indication for switch position and voltage Wide voltage range combination Built-in surge suppression 17.5mm wide DIN rail mounting.
