SmallRig Rail Support System Baseplate
Quick coupling plate9 items in stock at supplier
Product details

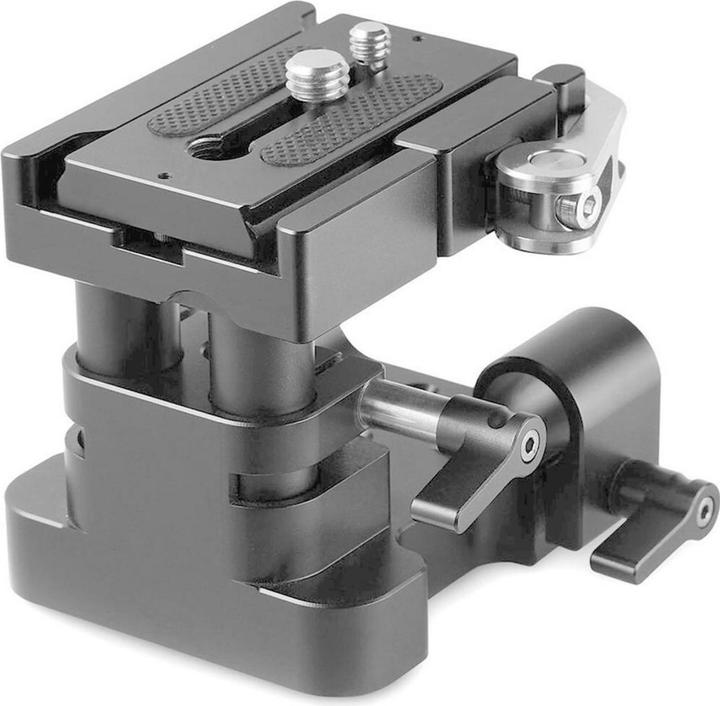

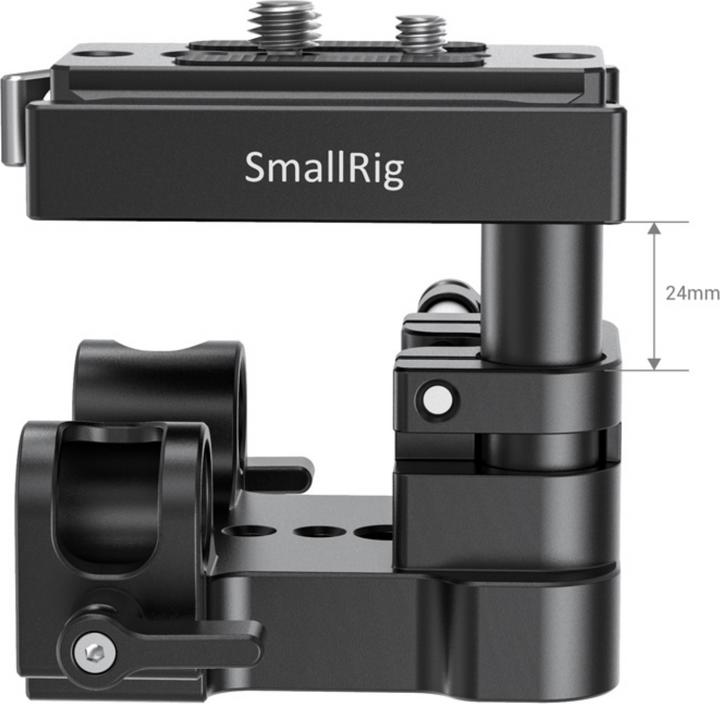

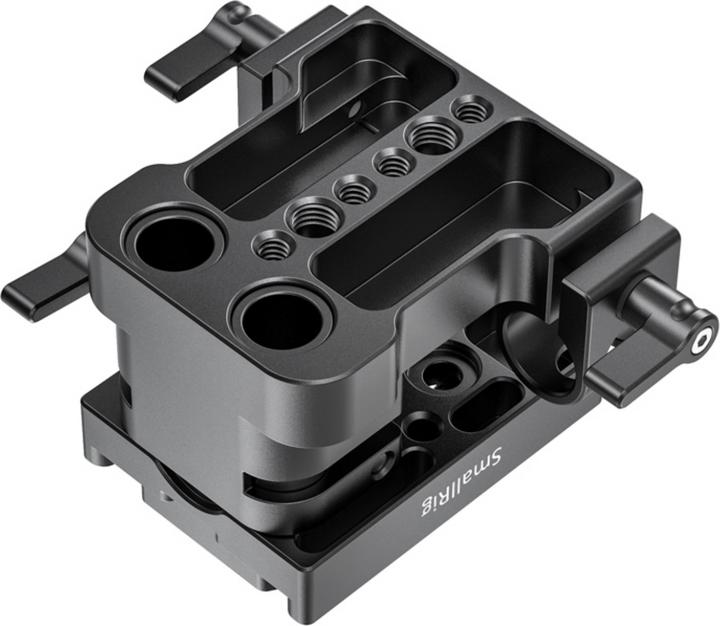

It is a universal adjustable baseplate compatible with mirrorless cameras and DSLRs. It comes with a baseplate and a QR plate of Arca-Swiss standards, locked via a locking lever for quick release and attachment of the camera. The height can be adjusted via a wingnut, enabling an 85mm rod height. The height from the QR plate to the rod centre ranges from 33.6mm to 57.6mm. It is equipped with 1/4"-20 and 3/8"-16 threaded holes to attach QR plates and then a tripod. The QR plate locks via a locking lever for quick release and attachment. The Arca QR plate on the top can be mounted with the camera, featuring convenient detachment for easy switching to handheld shooting. It can attach a 15mm rod for follow focus, a matte box, and long lens support with a dual 15mm rod clamp based on your needs. Its adjustable height can reach up to 24mm maximum via a wingnut, ensuring an 85mm rod height. The wingnut at the side provides enough space for manual adjustment. It is also equipped with 1/4"-20 and 3/8"-16 threaded holes at the bottom for DIY operation, allowing attachment of a quick dovetail and then sitting on a tripod.
Item number | 12594566 |
Manufacturer | SmallRig |
Category | Video accessories |
Manufacturer no. | 2092 |
Release date | 15.1.2020 |
External links |
Colour | Black |
Exact colour description | Black |
Video accessory type | Quick coupling plate |
Material | Aluminium |
Compatible brand | Sony |
Compatible model | Panasonic GH3, X-T2 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |

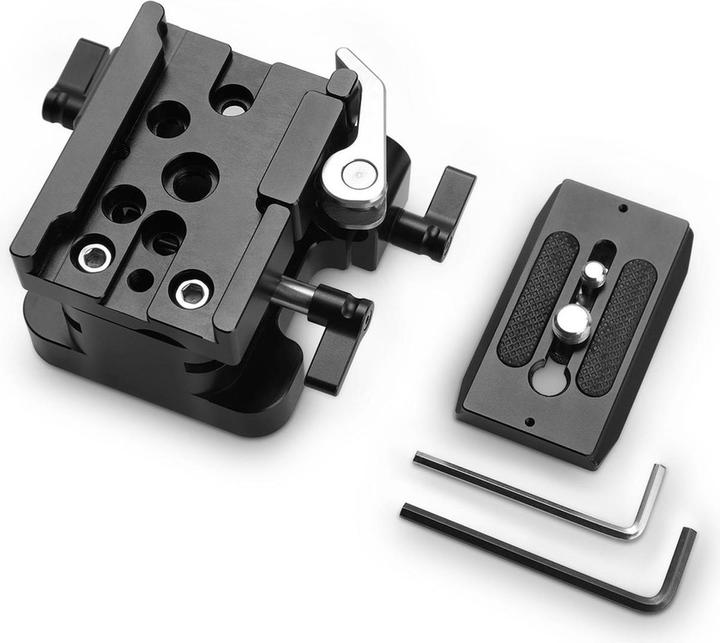

Scope of delivery | SmallRig universal base plate with 15mm rail support system 2092 |
Length | 8.70 cm |
Width | 12.60 cm |
Height | 11.20 cm |
Weight | 482 g |
Length | 12.50 cm |
Width | 11 cm |
Height | 9 cm |
Weight | 400 g |
