Enclosure material: Polystyrene
External dimensions: 110 x 110 x 66 mm
External length: 110 mm
External width: 110 mm
External height: 66 mm
IP protection class: IP66
Color: Gray
Cover color: Gray
With flange: No
Series: TK PS
Shielded: No

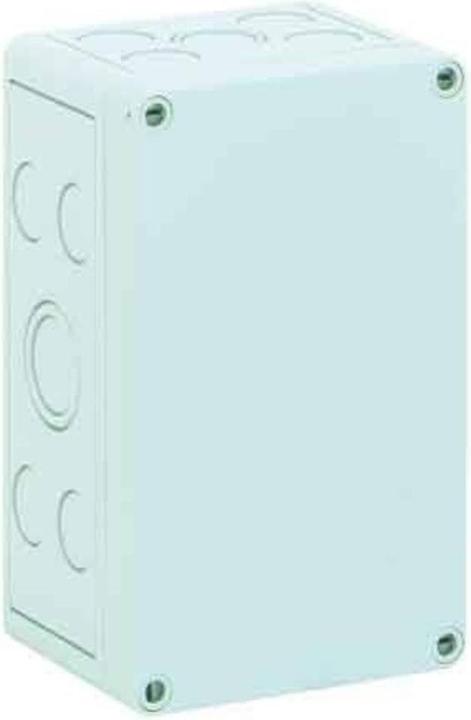

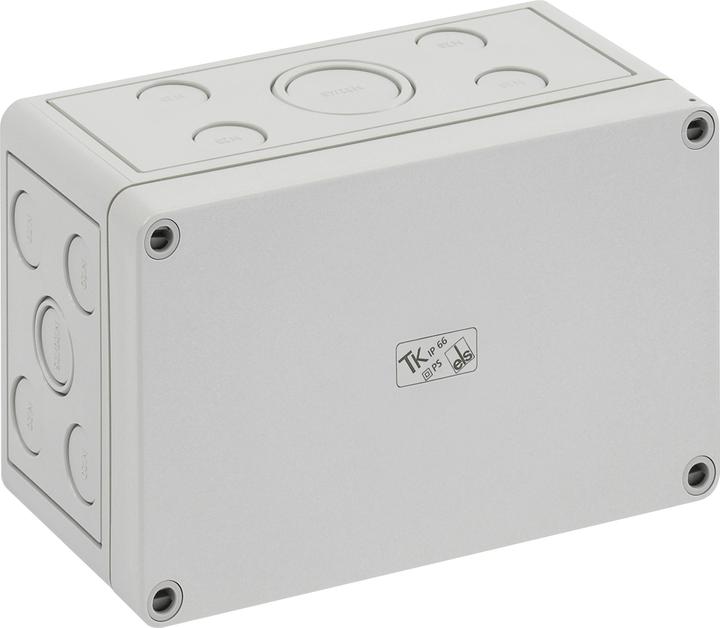

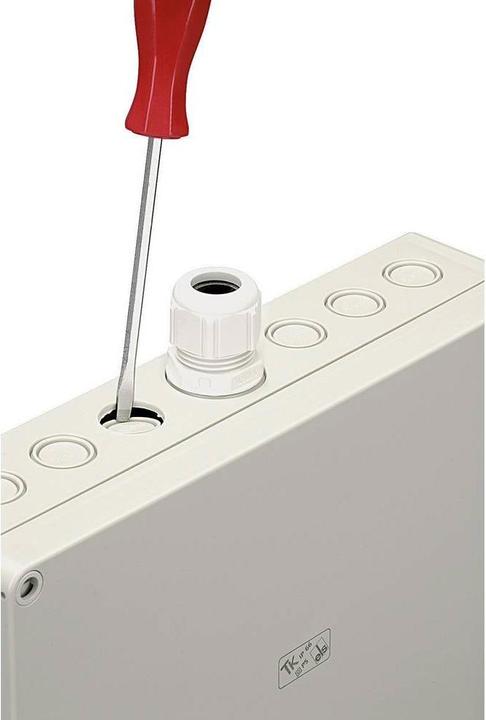

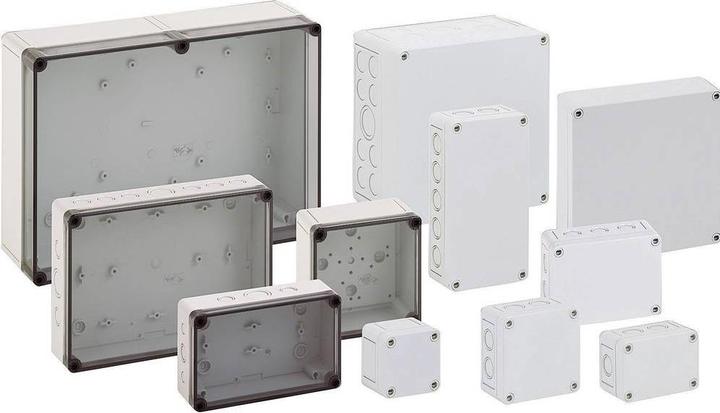

cULus. IP66 enclosure Spelsberg TK-PS with metric cutouts. The TK-PS series from Spelsberg is an empty enclosure with pre-punched metric cutouts for a variety of electrical, electronic, and pneumatic devices. The enclosure base is made of gray polystyrene, and the cover is available in either transparent polycarbonate or gray polystyrene. The TK-PS series meets the IP66 protection class and is resistant to most acids and alkalis. IP66, protection against water ingress according to EN 60529 / DIN VDE 0470-1, IK07, impact-resistant according to DIN EN 5012 / VDE 0470 Part 100. Flammability class: VDE 0471, UL94, 650 °C/HB. Operating temperature range: –25 to +40 °C. With pre-punched openings with metric dimensions (for further details, see the data sheet). Wall mounting using through holes below the cover mounting screws. SMD mounting using cutouts on the underside of the base plate (gasket plugs included). Integrated polyurethane cover gasket, halogen-free.
