Housing material: Polystyrene
Dimensions (outside): 254 x 180 x 111 mm
Length (outside): 254 mm
Width (outside): 180 mm
Height (outside): 111 mm
IP protection class: IP66
Color: Gray
Cover color: Gray
Series: TK PS
Shielded: No

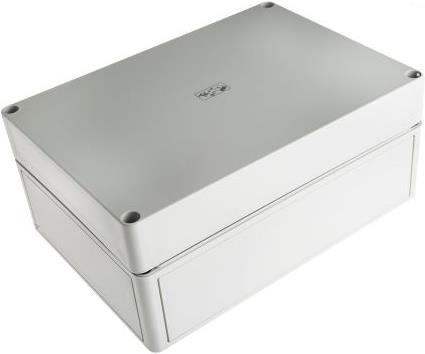

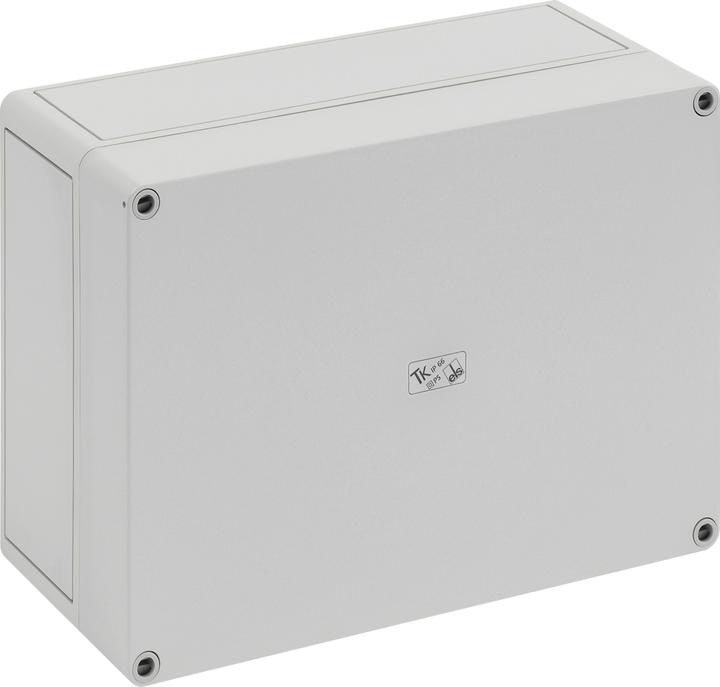

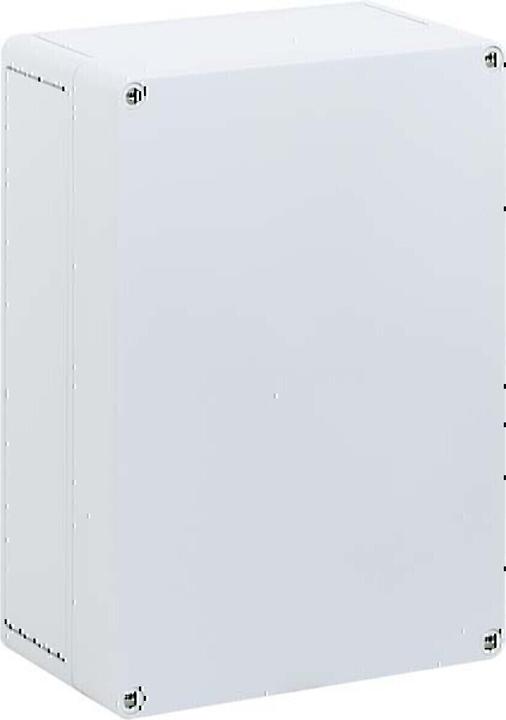

The cULus IP66 enclosure Spelsberg TK-PS is designed without metric knockouts. The TK-PS series is an empty enclosure suitable for various electrical, electronic, and pneumatic equipment. The base is made of gray polystyrene, and the cover is available in either transparent polycarbonate or gray polystyrene. This series meets IP66 protection standards and is resistant to most acids and alkalis.

Features and benefits include:

• IP66 protection against water penetration according to EN 60529 / DIN VDE 0470-1
• IK07 shock resistance according to DIN EN 5012 / VDE 0470 part 100
• Flammability class: VDE 0471, UL94, 650 °C/HB
• Operating temperature range: -25 to +40 °C
• Wall mounting using through holes below the cover fixing screws
• SMD mounting using knockouts on the underside of the base plate (sealing plugs included)
• Integrated polyurethane cover seal
• Halogen-free.
