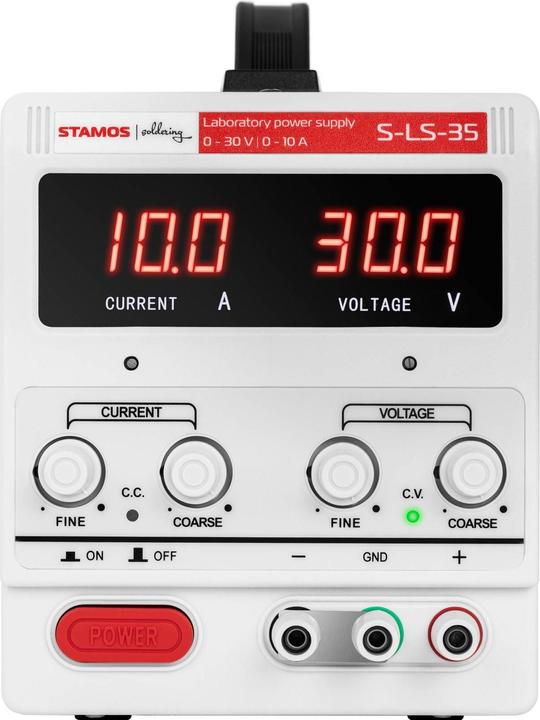

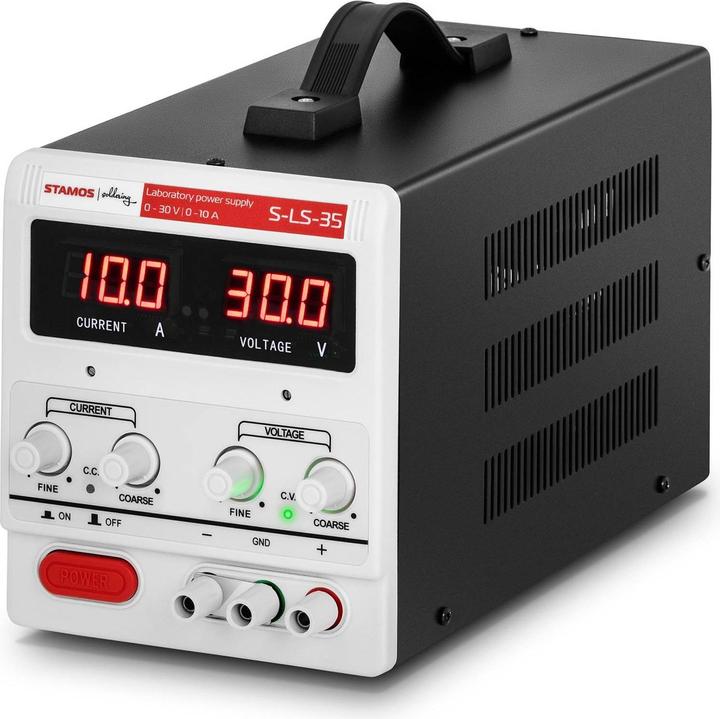

Individual and precise power supply with the laboratory power supply from Stamos Soldering. The S-LS-35 laboratory power supply is specialized for powering external devices with direct current, with adjustable current and voltage settings. The power supply operates very quietly and is excellent for use in schools or hobby applications. Thanks to linear technology, it has low residual ripple and minimal noise. Additionally, the device features a high setting and display resolution of 100 mV / 10 mA. With the large four-digit LED display, you can easily read the voltage and current values at any time. The digits are clearly visible even in poor lighting conditions. Furthermore, the individual values are labeled with their respective unit abbreviations, allowing for clear differentiation between current and voltage at all times.

Technical Details:

• Voltage / Frequency: 230 V / 50 Hz
• Output Voltage: 0 to 30 V DC
• Output Current: 0 to 10 A
• Output Power: 300 W
• Residual Ripple: CV ≤ 10 mV (RMS) / CC ≤ 20 mV (RMS)
• Line Regulation: CV ≤ 0.01 % + 5 mV; CC ≤ 0.01 % + 5 mA
• Load Regulation: CV ≤ 0.01 % + 5 mV; CC ≤ 0.01 % + 5 mA
• Display: LED
• Resolution: 100 mV / 10 mA
• Interface: None
• Operating Temperature: 0 to 40 °C
• Storage Temperature: -10 to +70 °C
• Relative Humidity Operating: ≤ 80 % RH
• Relative Humidity Storage: ≤ 70 % RH
• Protection: OCP, OVP, OTP
• Fuse: 5 A

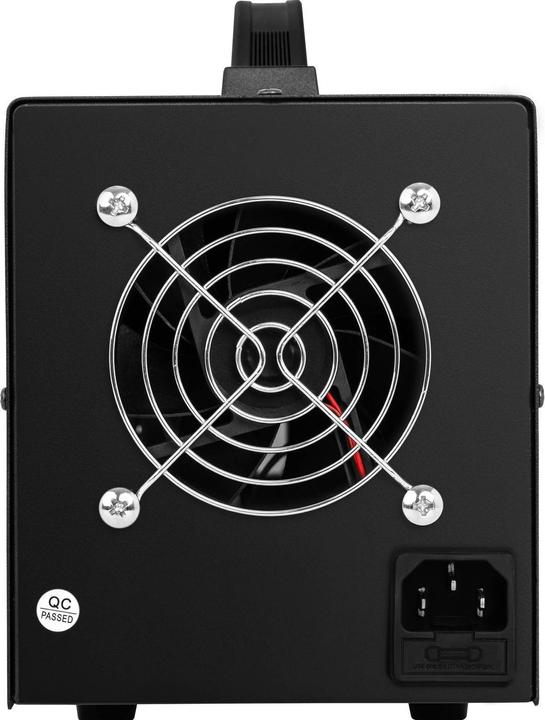

• Cooling: Fan, temperature-controlled
• Power Cable Length: 1.2 m

Scope of Delivery:
Laboratory power supply S-LS-35, power cable, user manual.
