Series = AMPMODU MOD II
Grid = 2.54mm
Number of contacts = 4
Number of rows = 1
Housing orientation = Straight
Jacketed/Non jacketed = Jacketed
Mounting type = Thru-hole mounting
Connection type = Soldering
Contact coating = Tin

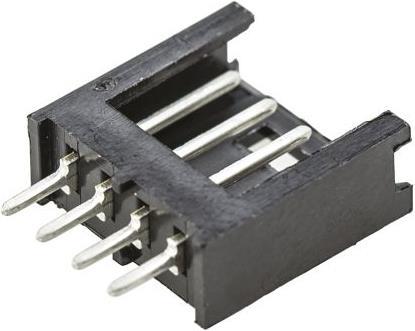

TE Connectivity AMPMODU Mod II jacketed PCB headers, 2.54 mm. AMPMODU Mod II series jacketed PCB headers with a center-to-center spacing of 2.54 mm and jacketing on 3 sides. The housings of the AMPMODU Mod II series jacketed headers are polarized to prevent mismating. A snap-in receptacle in the housing provides a secure, positive connection to the mating female header. AMPMODU Mod II series 2.54 mm jacketed headers are available with vertical or right angle mounting orientation and in single or double row configuration. Features and Benefits. Jacketing for pin protection Alignment to prevent mismating Positive latching locking mechanism. Scope. AMPMODU Mod II jacketed PCB headers are suitable for a wide range of applications. Applications include automotive controls, industrial and instrumentation equipment, computers, telecommunications, medical instruments and storage devices.
