Pressure range: 0.2 to 4.8 (falling) bar, 1 to 6 (rising) bar
Pressure indicator type: Differential
Medium: Air, fresh water, sea water
Output type: 2 normally closed
Pressure indication min: 0.2 (falling) bar, 1 (rising) bar
Process connection: G1/4
Connection: Screw terminal
Operating temperature min: -25°C
Operating temperature max: +70°C
Accuracy: Less than 3.5% (repeat)
Mounting type: Cable mounting

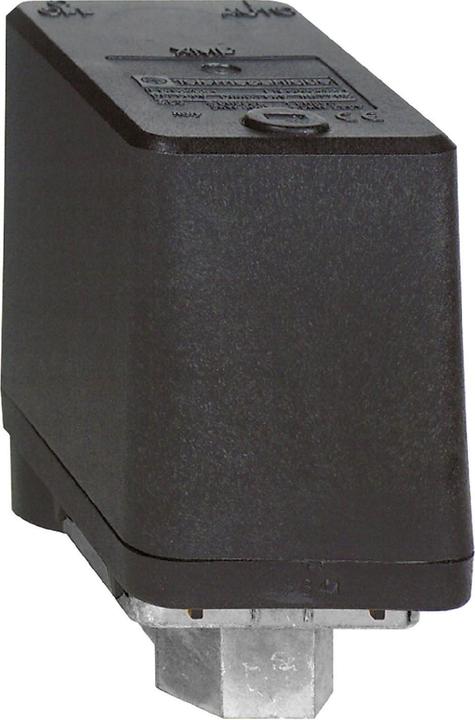

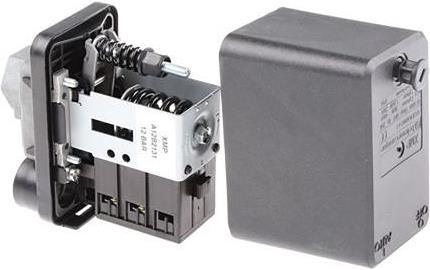

OsiSense XMP adjustable differential pressure sensors are used for control circuits to manage water pressure (both salt and fresh water) and air. The XMLC series pressure sensors feature an adjustable differential and are designed for control between two thresholds. They include a diaphragm pressure actuator with a G 1/4 (female) fluid connection type, two cable entries with a threaded hole for PG 13.5 cable glands, and two normally closed contacts with a latching mechanism.
