TE Sensors Sensor, Inductive M18 8mm, PNP NO, M12

Switch
Price in EUR including VAT
Delivered between Thu, 31.7. and Wed, 6.8.
free shipping

Product details

Telemechanique Sensors Proximity Switch XS118B3PAM12

Manufacturer: Telemechanique Sensors
Designation: Proximity Switch M18 PNP NO B M12
Type: XS118B3PAM12
Sensor Length: 50 mm
Sensor Diameter: 18 mm
Mechanical Installation Condition for Sensor: flush
Switching Distance: 8 mm
Suitable for Safety Functions: no
Switch Function Type: Normally Open
Output Type: PNP/PNP
Electrical Connection Type: M12 Connector
Number of Semiconductor Outputs with Signaling Function: 1
Actuation Type: metallic target
Interface Type: none
Interface Type for Safety-Related Communication: none
Housing Design: Cylinder, Threaded
Housing Coating: nickel-plated
Cascadeable: no
SIL according to IEC 61508: none
Performance Level according to EN ISO 13849-1: none
Max. Output Current at Safe Output: 200 mA
Supply Voltage: 12..24 V
Rated Control Supply Voltage Us for DC: 12..24 V
Voltage Type: AC/DC
Switching Frequency: 1000 Hz
With Monitoring Function for Connected Devices: no
Housing Material: Metal
Pressure Resistant: no
Explosion Protection Category for Gas: none
Explosion Protection Category for Dust: none
Interference Resistance against Magnetic Fields: resistant to magnetic DC and AC fields

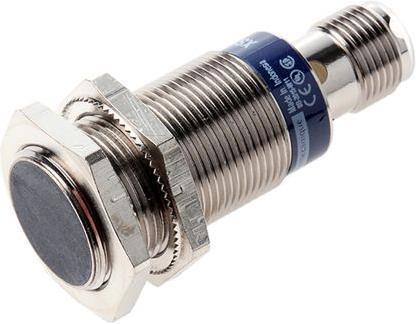

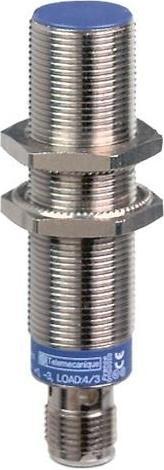

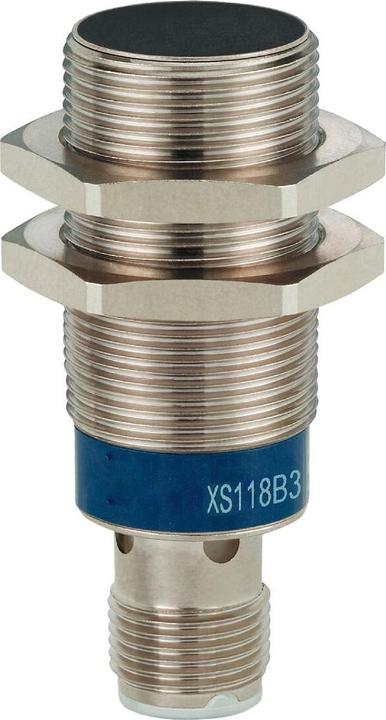

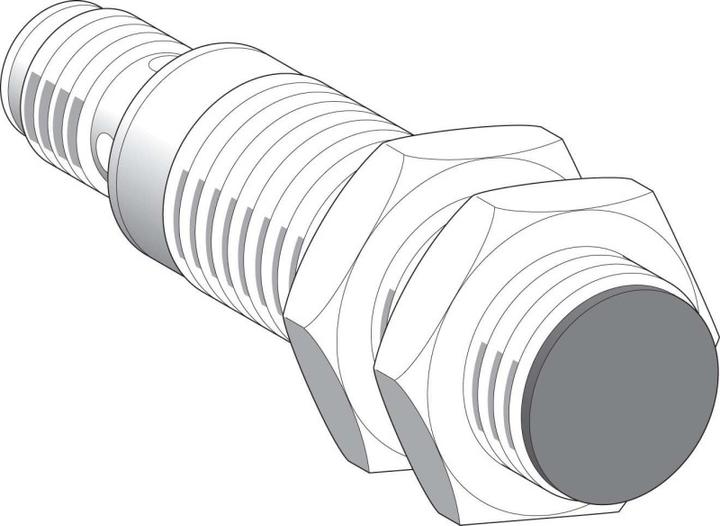

This OsiSense XS cylindrical (M18 thread) inductive proximity sensor features a PPS sensor surface and a nickel-plated brass housing. It has a switching distance of 8 mm, normally open PNP output, and an M12 connector. It operates with a supply voltage of 12 to 24 VDC. This universally applicable cylindrical inductive proximity sensor with thread is designed for flush mounting and offers a larger detection range. It can be directly mounted on a surface or bracket thanks to its external thread and double nuts, and is certified E2, CSA, UL.

Key specifications

Scope of delivery
1
Compatible hardware
Various
Item number
9870691

General information

Manufacturer
TE Sensors
Category
Electronics modules
Manufacturer no.
XS118B3PAM12
Release date
8.10.2018

Compatibility

Compatible hardware
Various

Electronic module properties

Module type
Switch

Origin

Country of origin
Spain

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1

Product dimensions

Length
50 mm
Height
50 mm

Package dimensions

Length
17.50 cm
Width
11.70 cm
Height
1.90 cm
Weight
44 g
