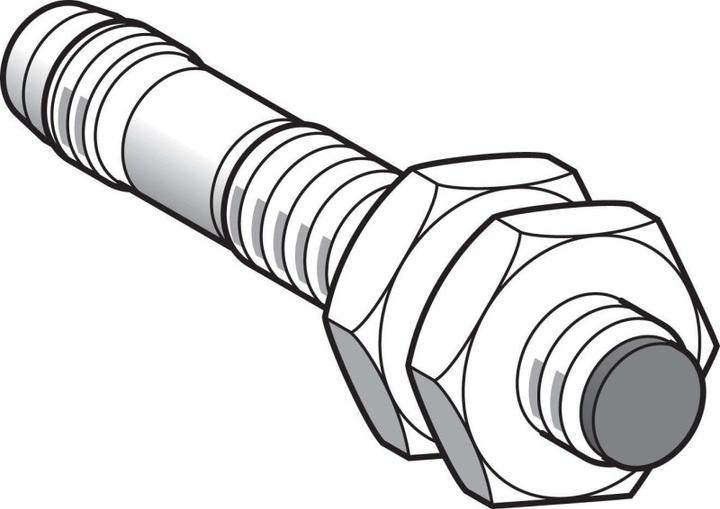

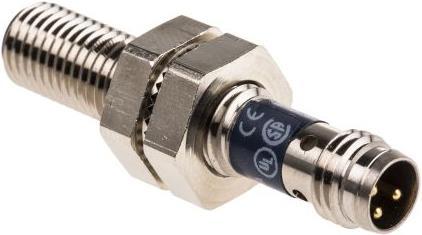

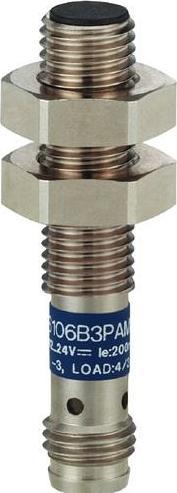

TE Sensors Sensor, Inductive, M8, Sr 1.5mm, PNP
SwitchProduct details
Housing design = Cylindrical
Thread size = M8 x 1
Output type = PNP normally open
Sensing range = 1.5 mm
Connection type = M8 - 3-pole
Supply voltage = 12 → 24 Vdc
Length = 42mm
DC voltage max = 36V
Mounting type = flush mounting
Protection class = IP65, IP67
Housing material = Nickel plated brass
Operating temperature min = -25°C
Extended detection range. Double nominal detection range Flush mounting Fast switching frequency Control with 2 and 3 wires LED status indication Operating temperature range -25 → +70 °C Reverse polarity and short circuit protection (DC version only).
Scope of delivery | 1 piece(s) |
Compatible hardware | Various |
Item number | 9870677 |
Manufacturer | TE Sensors |
Category | Electronics modules |
Manufacturer no. | XS508B1PAM8 |
Release date | 8.10.2018 |
External links |
Compatible hardware | Various |
Module type | Switch |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 piece(s) |
Length | 42 mm |
Height | 10 mm |
