Telemechanique Sensors Proximity Switch XS608B1PAL2

Manufacturer: Telemechanique Sensors
Designation: Proximity Switch M8
Type: XS608B1PAL2
Sensor Length: 50 mm
Sensor Diameter: 8 mm
Mechanical Installation Condition for Sensor: flush
Switching Distance: 2.5 mm
Suitable for Safety Functions: no
Switch Function Type: Normally Open
Switch Output Type: PNP/PNP
Electrical Connection Type: Radial Cable
Number of Semiconductor Outputs with Signaling Function: 1
Number of Safe Semiconductor Outputs: 1
Actuation Type: metallic target
Interface Type: none
Interface Type for Safety-Related Communication: none
Housing Design: Cylinder, Thread
Housing Coating: other
Cascadable: no
SIL according to IEC 61508: none
Performance Level according to EN ISO 13849-1: none
Max. Output Current at Safe Output: 200 mA
Supply Voltage: 12..48 V
Rated Control Supply Voltage Us at DC: 12..48 V
Voltage Type: AC/DC
Switching Frequency: 2500 Hz
With Monitoring Function for Downstream Devices: no
Housing Material: Metal
Pressure Resistant: no
Explosion Protection Category for Gas: none
Explosion Protection Category for Dust: none
Immunity to Magnetic Fields: immune to magnetic static fields

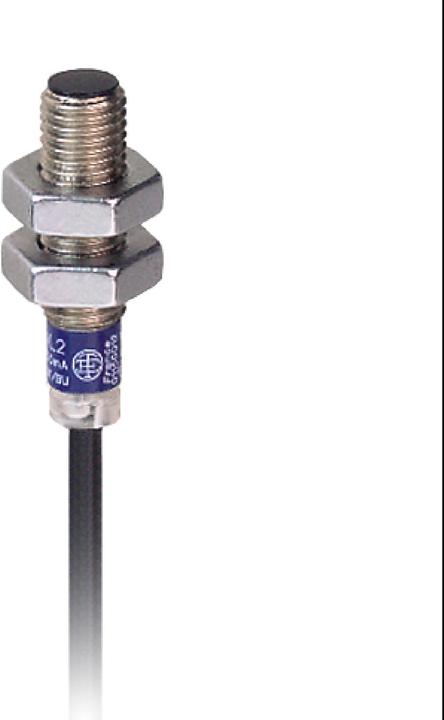

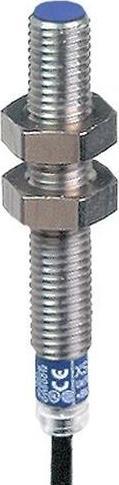

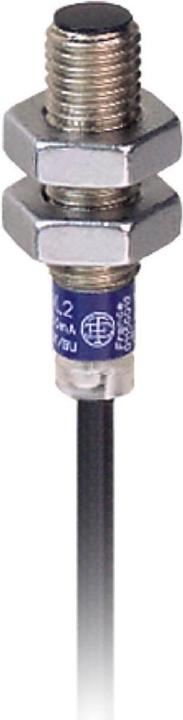

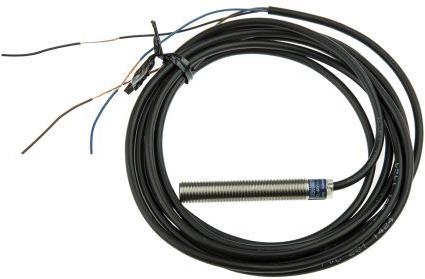

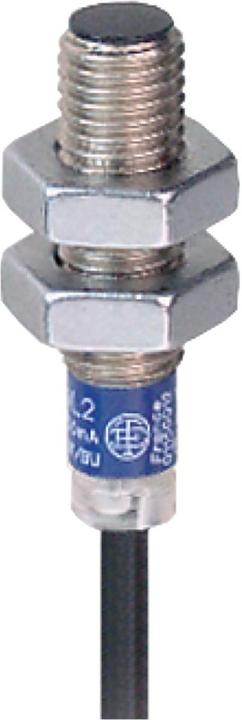

This OsiSense XS cylindrical (M8 thread) inductive proximity sensor features a PPS sensor surface and a stainless steel housing of grade 303. It has a switching distance of 2.5 mm, normally open PNP output, and is pre-wired (2 m cable). It operates with a supply voltage of 12 to 48 VDC. This universally applicable cylindrical inductive proximity sensor with thread can be flush mounted and offers a larger detection range. Thanks to its external thread and double nuts, it can be directly mounted on a surface or bracket and is CSA and UL certified.
