Techly LED/LCD mount for 42-75" black
Wall, 75", 60 kg5 pieces in stock at supplier
Product details

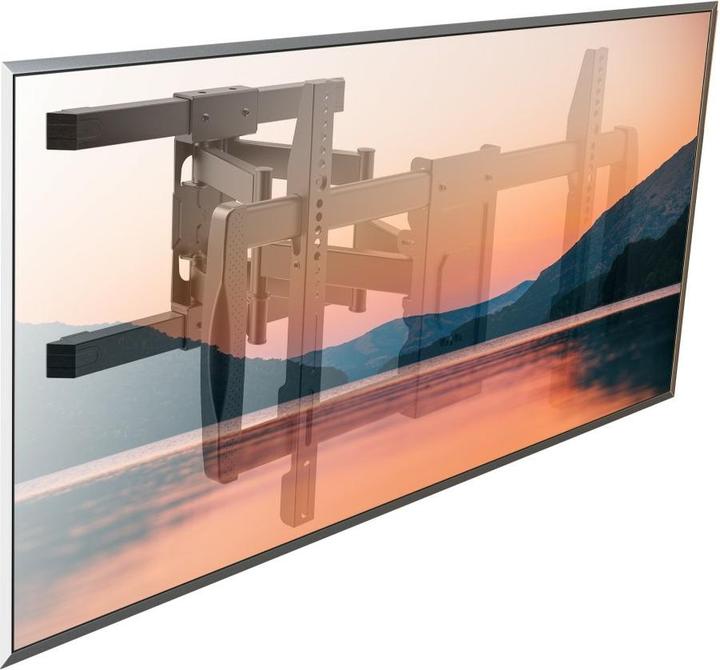

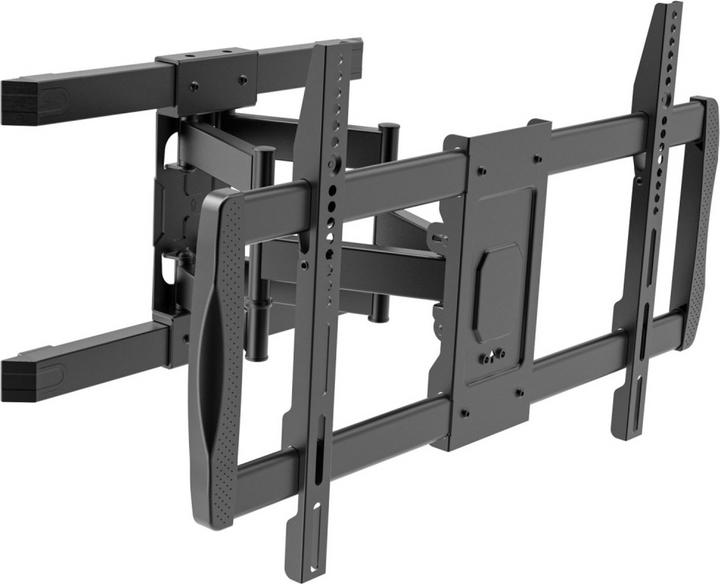

The ICA-PLB 473 is a fully movable dual-arm wall mount for flat and curved televisions up to 75 inches and weighing up to 60 kg. This mount extends 411 mm from the wall and allows the monitor to rotate 90 degrees. When the arm is fully closed, the distance to the wall is only 93 mm. The full mobility provides maximum flexibility – tilt and turn the TV for comfortable viewing from any point in the room. With post-installation height adjustment, the TV can be rotated up to 3 degrees clockwise and counterclockwise to ensure perfect positioning. The integrated cable management system keeps cables organized and protected. The wall plate features sliding rails for a larger TV mounting area.
Features:
- Compact design mount, ideal for large TVs
- Optimized viewing thanks to tilt adjustment of +5 to -15 degrees and rotation of +/-90 degrees
- Easy installation, perfect for home, office, and commercial applications
- Slim design, the back of the TV is only 93 mm from the wall when the arm is fully closed
- Integrated leveling bubble for perfect TV mounting
Specifications:
- Material: Steel
- Surface treatment: Powder coating
- Color: Black
- Supported monitor sizes: 42 - 75 inches
- VESA max: 600x400
- Supported weight: 60 kg
- Distance from the wall: min. 93 mm, max. 411 mm
- Tilt: +5 to -15 degrees
- Rotation: +90 to -90 degrees
- Screen leveling: +3 to -3 degrees
- Type of wall plate: Wall plate with sliding rail
- Integrated cable management
Box contents:
- Dual-arm wall mount for 42-75 inch LED/LCD TV
- Mounting hardware
- Installation manual.
VESA wall mount | 200 x 100 mm, 300 x 300 mm, 400 x 300 mm, 400 x 600 mm, 600 x 200 mm, 600 x 400 mm |
TV Wall Mount Features | Rotatable, Tiltable |
Max. screen diagonal (inch) | 75" |
Max. Wall distance | 24000 cm |
Installation place | Wall |
Max. load | 60 kg |
Number of monitors | 1 |
Item number | 45197663 |
Manufacturer | Techly |
Category | TV mounting solutions (universal) |
Manufacturer no. | ICA-PLB-473 |
Release date | 26.4.2024 |
Colour | Black |
Exact colour description | Black |
Material group | Metal |
Material | Steel |
Installation place | Wall |
TV Wall Mount Features | Rotatable, Tiltable |
VESA wall mount | 200 x 100 mm, 300 x 300 mm, 400 x 300 mm, 400 x 600 mm, 600 x 200 mm, 600 x 400 mm |
Max. screen diagonal (inch) | 75" |
Min. screen diagonal (inch) | 42" |
Max. Screen diagonal (cm) | 190.50 cm |
Min. screen diagonal (cm) | 106.70 cm |
Max. load | 60 kg |
Max. Wall distance | 24000 cm |
Min. wall distance | 2000 cm |
Number of monitors | 1 |
Angle of inclination range | -15° - 5° |
Angle of rotation range | 180° |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Flat rate - steel - black - screen size: 107-191 cm (42"-75"), Mounting kit (wall mount) - full-motion dual arm - for curved panel |
Length | 430 mm |
Width | 716 mm |
Height | 430 mm |
Depth | 430 mm |
Weight | 9259 g |
Length | 32 cm |
Width | 10 cm |
Height | 70.50 cm |
Weight | 8.84 kg |
