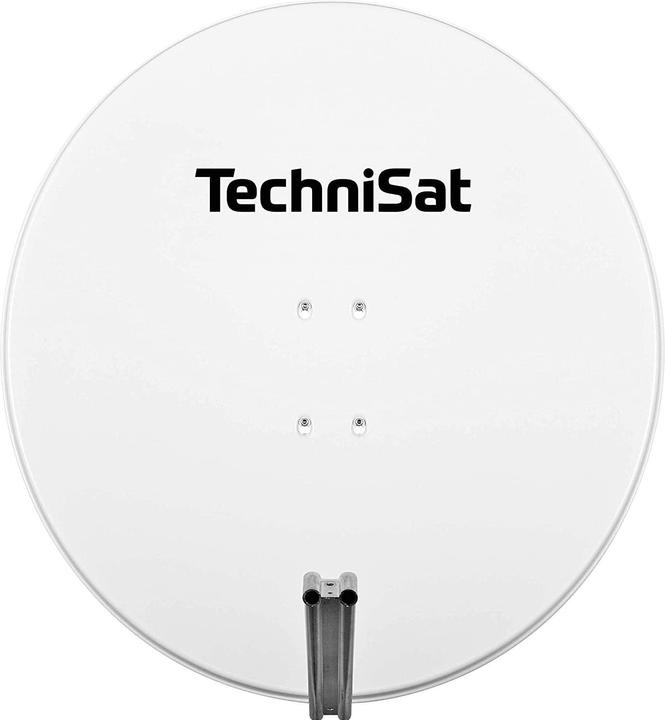

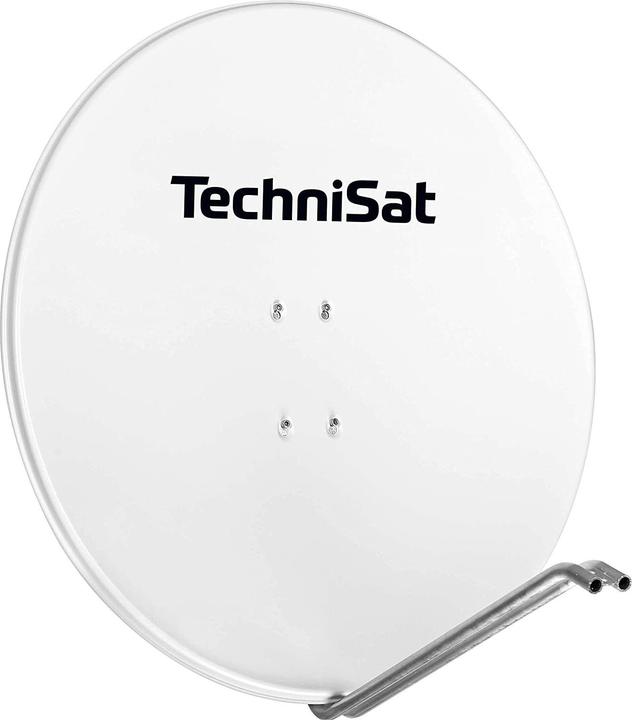

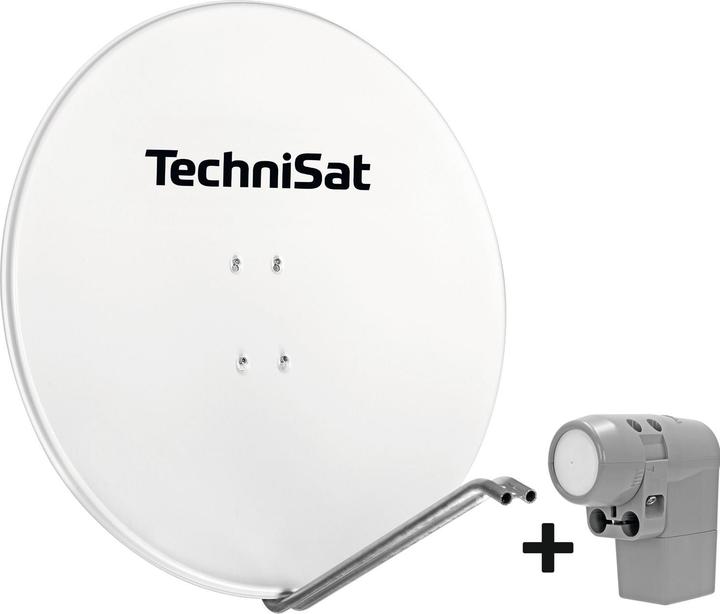

The 85 cm offset mirror is made of high-quality, double-coated aluminum. The accompanying AZ/EL mount is also constructed from premium aluminum. All screws and washers are made of stainless steel. The use of these materials ensures that the outdoor unit is exceptionally durable and completely weather-resistant. Attaching the dish to the fully pre-assembled AZ/EL mount is easy due to special elongated holes. The dish simply hooks in and is securely screwed in place. The reception electronics of the outdoor unit are protected from weather influences by a special weatherproof housing. This housing is attached to the AZ/EL mount and secured with a screw. By removing the lower part of the housing, the cable connection to the LNB can be easily made. The satellite dish is available in various colors, allowing it to be selected to match the surroundings of its installation location.

Material: Aluminum
Material thickness: 1.6 mm
Coating: double powder-coated

Technical specifications:
Nominal size: 0.85 m
F/D: 0.67
G/T: 17.2 dB/K
Gain: 38.2 dB at 11.3 GHz
Offset angle: 21°
Feed type: Multifeed

Input frequency range:
Lower frequency range: 10.7 - 11.7 GHz
Upper frequency range: 11.7 - 12.75 GHz

Output frequency range:
Lower frequency range: 950 - 1950 MHz
Upper frequency range: 1100 - 2150 MHz

LOF:
Lower frequency range: 9.75 GHz ± 3 MHz
Upper frequency range: 10.6 GHz ± 3 MHz

Noise figure:
Lower frequency range: 0.6 dB max.
Upper frequency range: 0.6 dB max.

Power supply:
Vertical voltage supply: 11.5 - 14.5 V
Horizontal voltage supply: 16 - 19 V

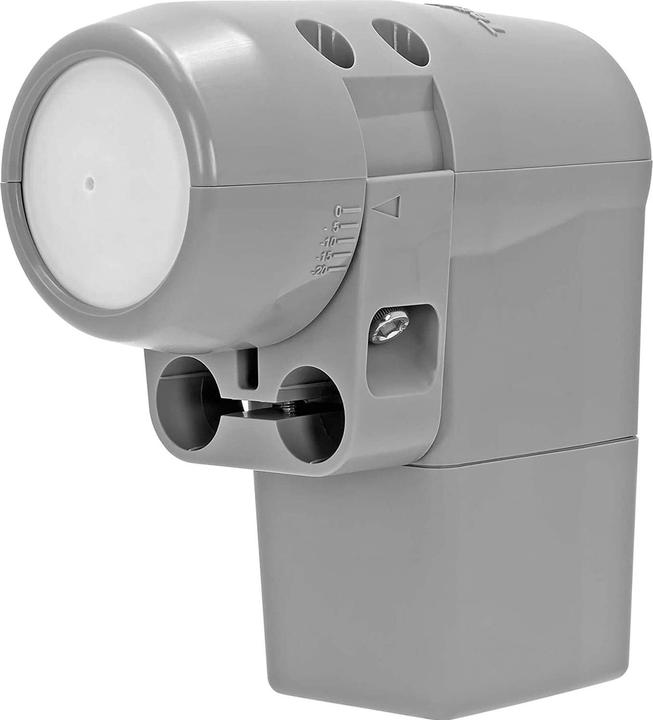

UNYSAT Universal Quattro Switch LNB:
4 outputs for direct connection of up to 4 participants
Vertical voltage supply: 11.5 - 14.5 V
Horizontal voltage supply: 16 - 19 V
Maximum power consumption: 190 mA
Noise figure: 0.6 dB max.
