Telegärtner SMB connector plug, vertical installation 50 Ohm J01160A0021 1 pc.

Price in EUR including VAT
Ratings
Delivered between Tue, 8.7. and Thu, 10.7.
More than 10 pieces in stock at supplier
Free shipping starting at 30,–

Product details

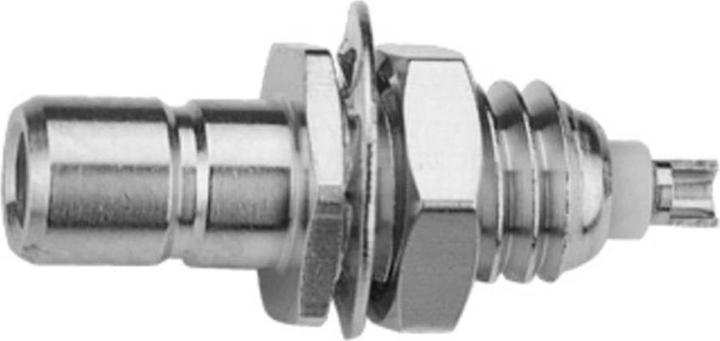

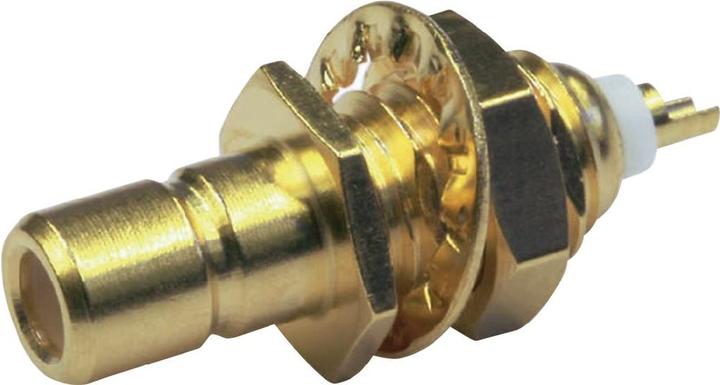

The Telegärtner SMB connector is a high-quality plug designed for vertical mounting and features an impedance of 50 ohms. This Sub Miniature B (SMB) connector is suitable for frequencies up to 4 GHz and provides a reliable connection for internal applications in electronic devices. The connector is made of gold-plated brass, ensuring excellent conductivity and corrosion resistance. With a temperature range of -55 °C to 155 °C, this connector is suitable for a variety of environments. Installation is done through panel mounting, allowing for easy integration into various devices. The Telegärtner SMB connector is an ideal choice for applications requiring a compact and efficient connection.

  • Suitable for frequencies up to 4 GHz
  • Made of gold-plated brass for optimal conductivity
  • Temperature range of -55 °C to 155 °C
  • Easy installation through panel mounting
  • Reliable connection for internal applications.

Key specifications

Plug type
DC connector
Cable + connector type
Male
Item number
14271143

General information

Manufacturer
Telegärtner
Category
Cables + Plugs
Manufacturer no.
J01160A0021
Release date
14.11.2020
External links
Manufacturer's site (de)

Material

Material group
Metal
Material
Gold-plated brass

Cable + Connector Features

Cable + connector type
Male
Plug type
DC connector
Max. temperature
155 °C
Min. temperature
-55 °C
mounting type
Panel mounting
Manufacturer Type
J01160a0021
Connectors Design
Flange plug, Socket, vertical installation

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece
Scope of delivery
1 piece

14-day cancellation right
30-day right of return
24 Months statutory warranty
