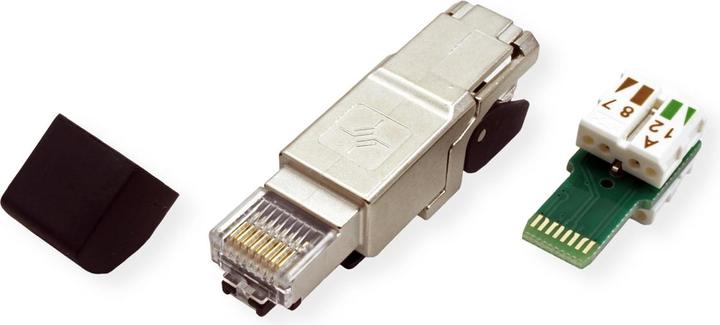

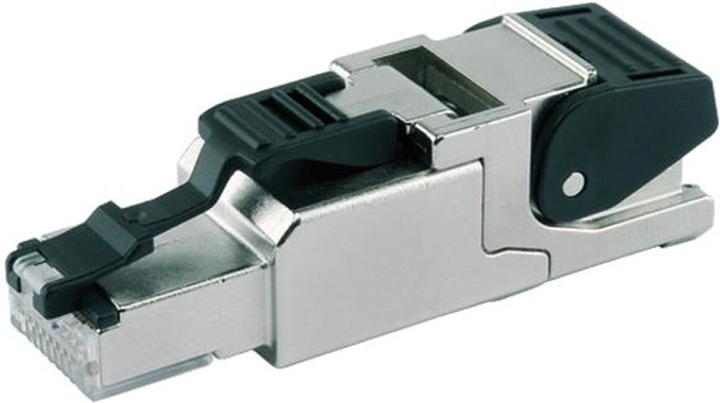

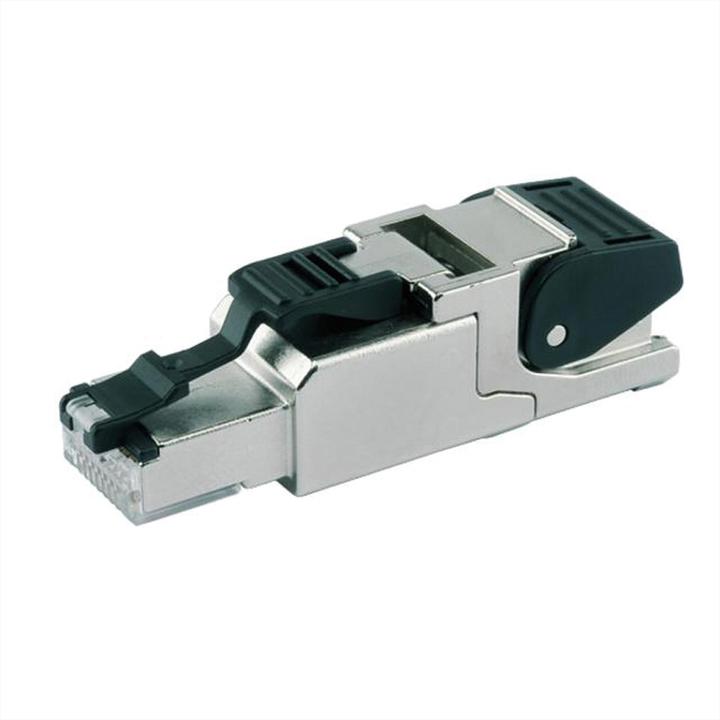

The field-terminable RJ45 connectors of the MPF8 series from Telegärtner can be directly mounted onto the installation cable to connect devices with RJ45 ports to the network. No outlet box or patch cable is required. The MFP8 series is the optimal solution for shielded Modular Plug Terminated Link (MPTL), End-to-End Links (E2E Links), and Direct Attach Cabling (DAC). With the field-terminable RJ45 connector MFP8 from Telegärtner, devices with RJ45 ports can be connected to the installation cable easily, quickly, and securely. If the device is mounted above the cable outlet or if the cable is routed into the device's protective housing, the connection becomes invisible and inaccessible to unauthorized persons, which not only looks good but also provides the user with a crucial advantage in terms of tamper resistance.

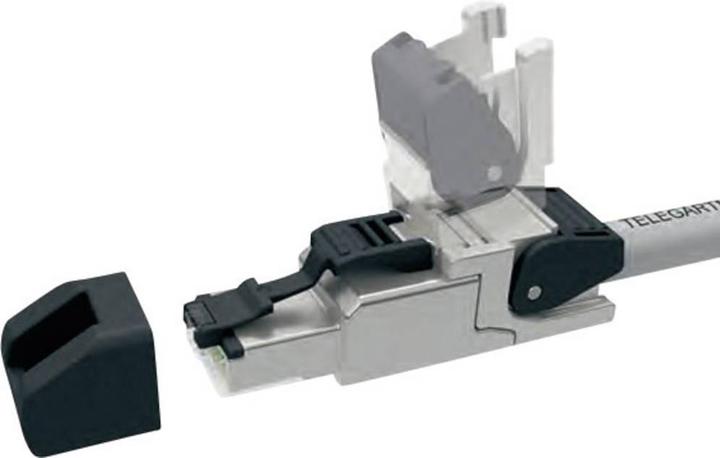

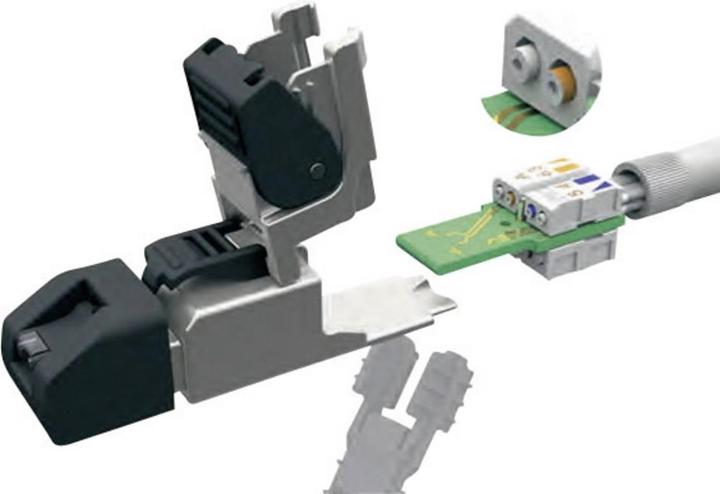

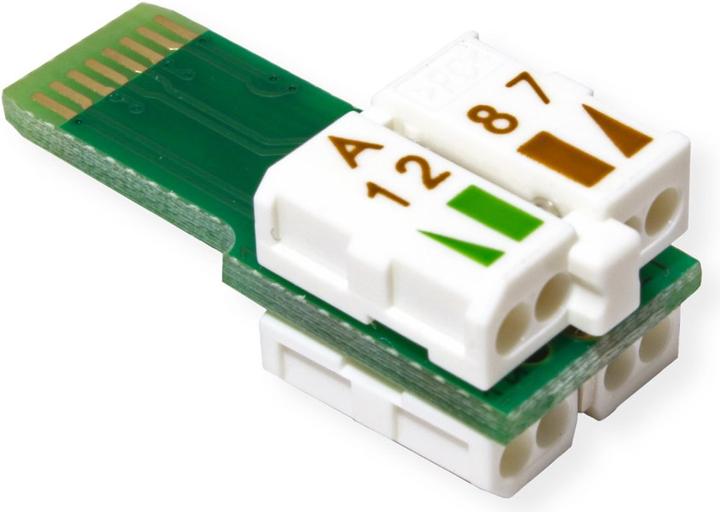

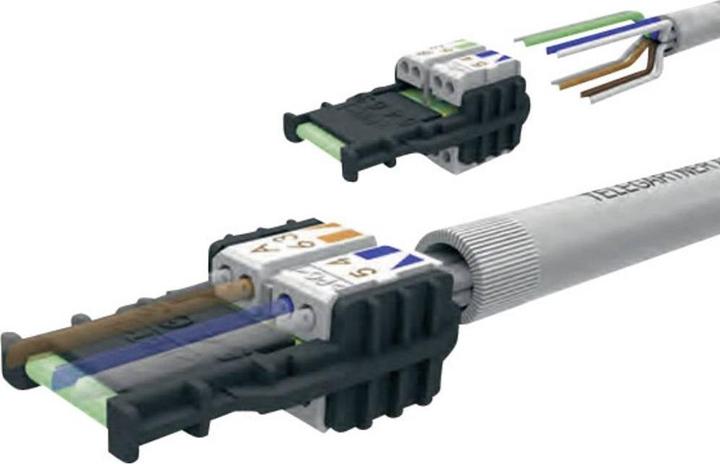

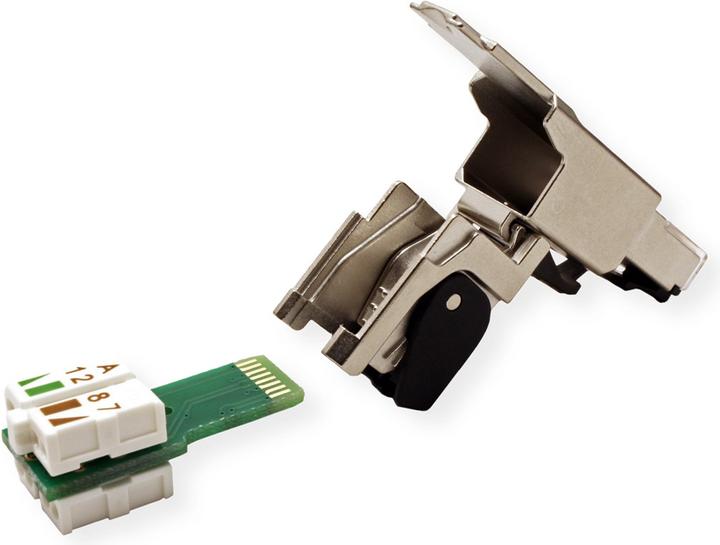

Features: Connector according to IEC 60603-7 RJ45 8P8C, suitable for 10 Gigabit Ethernet 10GBASE-T according to IEEE 802.3, suitable for Four Pair Power over Ethernet 4PPoE according to IEEE 802.3bt, four-chamber conductor manager with T568A color coding, for shielded cabling, multi-port capable, field-terminable in 60 seconds without special tools, optimized for on-site installation, IPC penetration contacts suitable for solid and stranded conductors, protection class IP20, suitable for cable outer diameters of 5.0 to 9.0 mm, three-stage locking strain relief, with pre-assembled protective cap, UL listed, SAP item designation CU-CN MFP8 T568A C6A D1-1.6.

Notes: AWG 24/1-22/1, AWG 27/7-22/7, with pre-assembled protective cap. Fire protection class: Not relevant. Burning drip: Not relevant. Smoke development: Not relevant. Acid development: Not relevant. Short designation: MFP8 T568 A Cat.6A (ISO/IEC).
