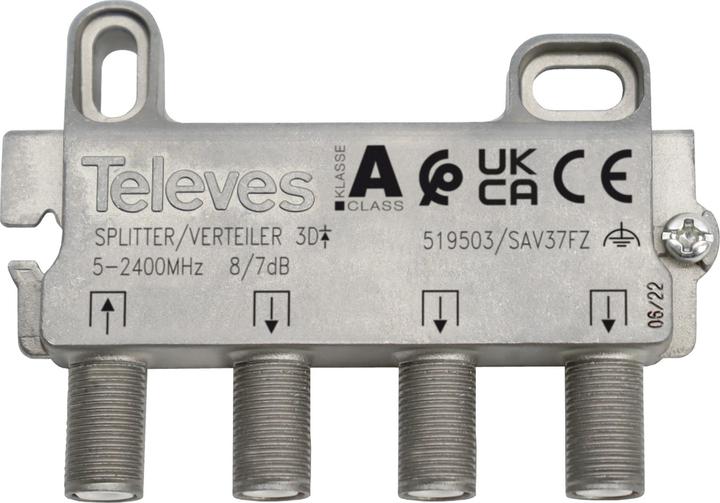

3-way splitter with F-connectors for SMATV installations. Due to the reduced size of the electronic components, it has low insertion losses, which improves its electrical performance. Additionally, its Zamak housing provides good shielding. It is designed for indoor installation and can be mounted on walls, mounting plates with nuts at the connections, or on standard DIN rails.

Highlights

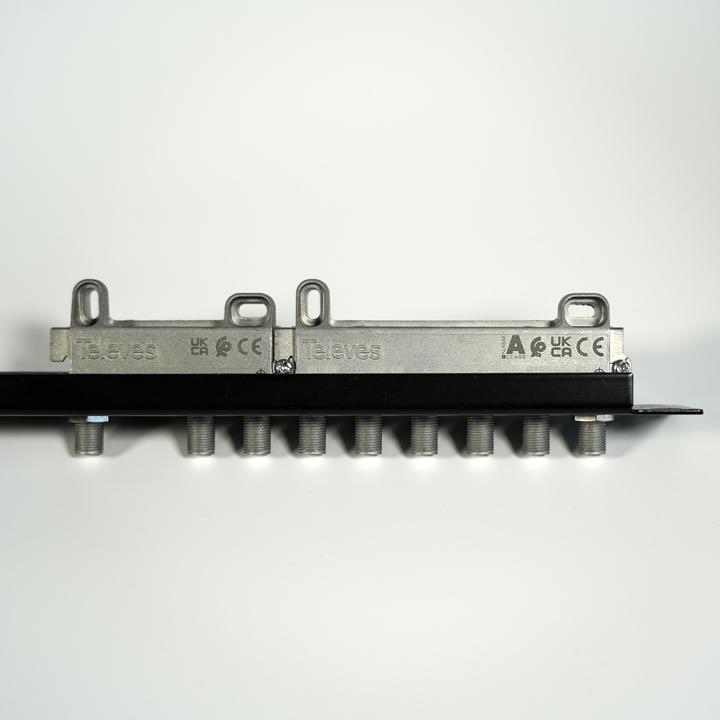

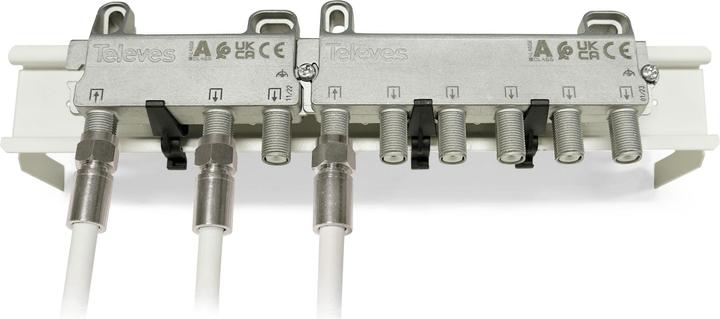

• Flexibility in installation: can be screwed to the wall, mounted on plates with nuts at the connections, or installed on a standard DIN rail (with adapter No. 519901)

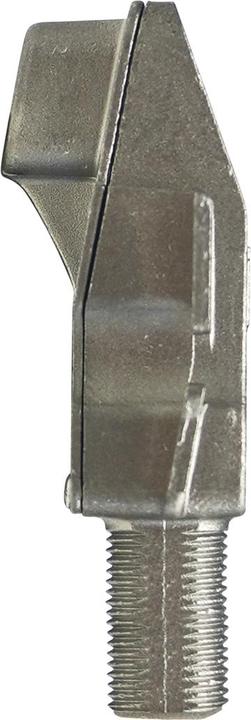

• Convenient cable connection thanks to a 10º angle of the F-connectors towards the installation wall
• Space optimization in enclosures and cabinets: the inputs and outputs are always on the same side
• Better organization of the installation: allows for cabling through the rear

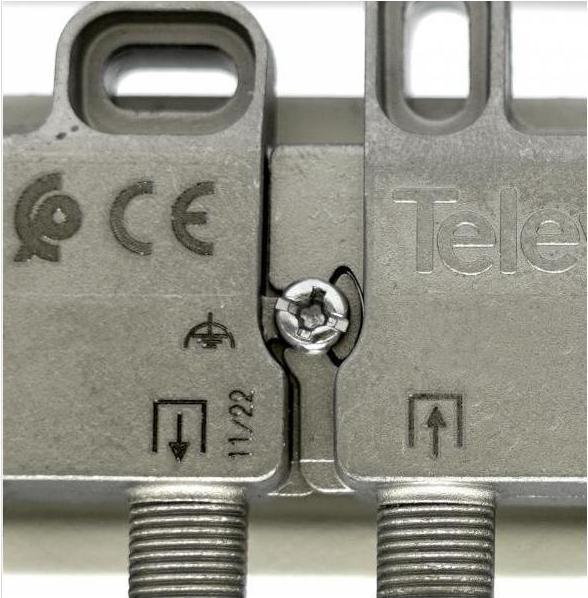

• The elements of the F series can be interconnected using the grounding screw, requiring only a single grounding cable
• The signal level is maintained at the sockets even with long cables, thanks to improved response characteristics of the flatness
• Excellent reliability: robotic manufacturing with next-generation microcomponents
• 100% European design, quality, and manufacturing

Features

• Low insertion losses
• Good shielding (Class A), made of Zamak
• F-connectors with longer threads to facilitate and secure installation on a mounting plate
• Indoor installation
• Includes grounding screw
• DC pass from outputs to input

Technical specifications
Frequency range

• MHz 5 ... 2400

Number of outputs

• 3

Inputs/Frequency band

• TERR

Insertion loss

• dB 8

Isolation

• dB > 20

Inputs/Frequency band

• SAT

Insertion loss

• dB 7

Isolation

• dB > 20

Connectors

• F-socket

Max. voltage

• V 24

Max. current consumption

• mA 350.
