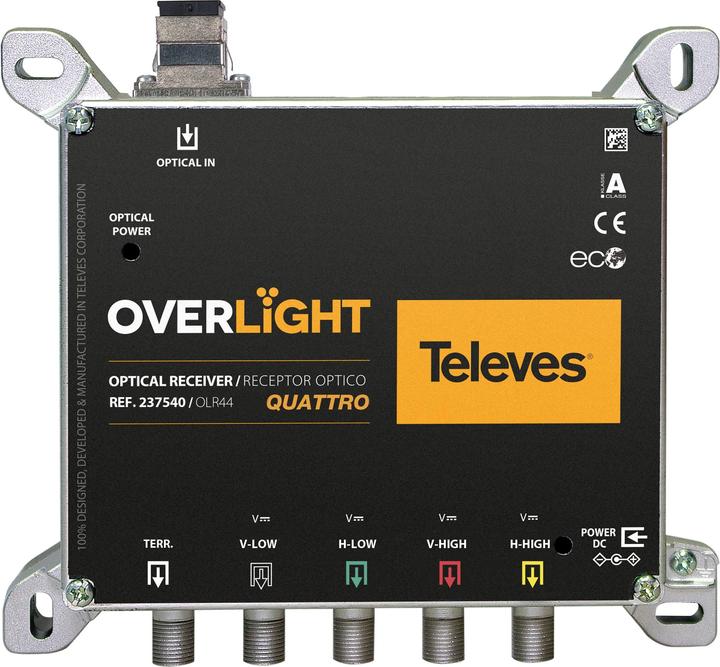

Televes OLR 44 Optical back converter Quatro for multi-switches

Antenna cable
Price in EUR including VAT
Delivered between Tue, 22.7. and Thu, 24.7.
Only 2 pieces in stock at supplier
free shipping

Product details

This optical converter is responsible for capturing an optical television signal (1100...1650 nm), processing it, and restoring the original satellite and terrestrial television signals. It restores the original terrestrial and satellite TV signals by providing 4 RF outputs in Quattro mode: one of the four TVSAT polarity and band combinations is provided at each output.

Thanks to its optimized electronic behavior and low losses, it is possible to reduce the number of required amplifier devices and simplify its use in collective systems, while maintaining signal quality from start to finish. Additionally, it is suitable for use in GPON installations and perfectly tuned for dCSS applications.

This device is part of the Overlight system, which handles the distribution of satellite and DTT signals to multiple users over a single fiber optic cable.

Highlights

  • Very compact in dimensions and weight (137 x 120 x 30 mm)
  • Compatible with GPON installations
  • Low losses
  • Optimized electronic behavior
  • 100% European design, quality, and manufacturing

Features

  • Optical SC/APC connector
  • F-connectors for RF
  • Highly shielded Zamak housing
  • Wall mounting possible
  • LED display to indicate signal status

Technical Specifications

  • Number of TERR outputs: 1
  • Number of Legacy outputs: 4
  • Impedance: 75 Ω
  • Output type: TERR
  • Output voltage dBμV: 79 ... 83
  • Output frequency range MHz: 87 ... 694
  • Output type: Legacy
  • Output voltage dBμV: 64 ... 71
  • Output frequency range MHz: 950 ... 2150
  • Wavelength: 1200 ... 1600 nm
  • Optical device: InGaAs pin photodiode
  • Optical input levels: dBm -13 ... -6
  • RF connections: F socket
  • Optical connections: SC/APC
  • Power supply: Vdc 12 ... 18
  • Max. current consumption (@12V): mA 750
  • Max. current consumption (@18V): mA 570.

Key specifications

Length
0.17 m
Item number
22602119

General information

Manufacturer
Televes
Category
Antenna + Satellite cables
Manufacturer no.
237540
Release date
3.5.2022

Coaxial cable properties

Coaxial cable type
Antenna cable
Number of shieldings
5
Length
0.17 m

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 pcs.

14-day cancellation right
30-day right of return
24 Months statutory warranty
