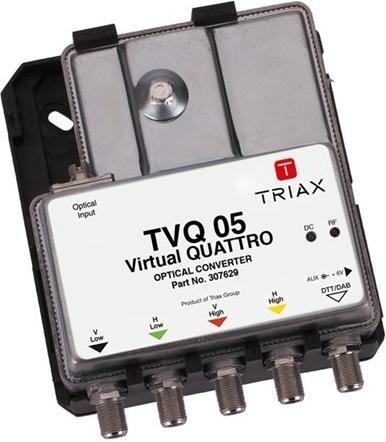

Description Triax TVQ 05 Quattro Optical Return Converter 1x SAT + Terrestrial. Suitable for Triax Opto-LNB TOL 32, TOL 64, and Opto-IES 1. Output connections: 5x F (4x SAT + 1x terrestrial). The optical return converters form the end of the fiber optic distribution network. The stacked optical signal is converted into an electrical RF signal, and the 4 SAT IF levels are reset to the original 1st SAT IF position. The Quattro version TVQ 05 has 4 SAT outputs and one terrestrial output for connecting to multi-switches. The SAT IF levels are assigned to each output (see Quattro LNB). Features: Suitable for Triax Opto-LNB TOL 32, TOL 64, and Opto-IES 1. Built-in AGC for constant RF output level. Optical input level: 0 to -15 dBm. Wavelength: 1310/1550 nm. Input frequency range, vertical: 0.95 - 3.0 GHz. Input frequency range, horizontal: 3.4 - 5.45 GHz. Terrestrial frequency range DVB-T: 470 - 854 MHz. Terrestrial frequency range DAB: 213 - 230 MHz.
