Varia OPNsense complete system with AMD APU3E4, 4GB RAM, silver

Ratings
Currently out of stock
Free shipping starting at 30,–

Product details

This board version is designed for applications that require 2x 3G/LTE modems. SIM sockets can be swapped under GPIO control, allowing for failover between two different networks, even when only one modem is used. Another feature is the build option for a standard PCI-Express slot on the side.

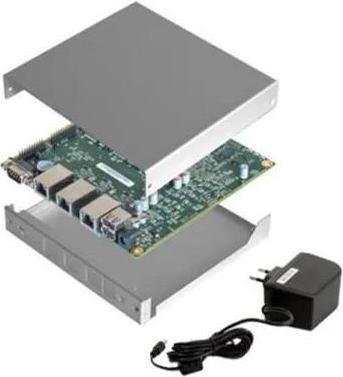

The bundle includes:

  • APU3E4 system board
  • 12 V, 2 A power supply
  • Case (color: silver)
  • Memory: 16 GB mSATA SSD module
  • CPU: AMD Embedded G Series GX-412TC, 1 GHz quad-core Jaguar with 64-bit and AES-NI support, 32K data + 32K instruction cache per core, shared 2 MB L2 cache
  • DRAM: 4 GB DDR3-1333 DRAM
  • Storage: Booting from SD card (internal sdhci controller), external via USB or m-SATA SSD, 1x SATA + power connector, mSATA is shared with miniPCI express
  • 12 V DC, approximately 6 to 12 W depending on CPU load, power connector = 2.5 mm, center positive
  • Connectivity: 3x Gigabit Ethernet channels (Intel i211 NIC)
  • I/O: DB9 serial port, 2x USB 3.0 external + 4x USB 2.0 internal, 3x front-panel LEDs, buttons
  • Expansion: 3x miniPCI express (J14 USB or mSATA, with SIM; J15 USB only, with SIM; J16: full miniPCI express, but no SIM, intended for Wi-Fi), GPIO header, optional I2C bus, COM2 (3.3V RXD/TXD)
  • Board size: 6 x 6 inches (152.4 x 152.4 mm) - same as apu1d, alix2d13, and wrap1e
  • Firmware: coreboot
  • Cooling: Conductive cooling from the CPU to the case with a 3 mm aluminum heat spreader (included).

Key specifications

Development board type
Kit
Memory
4000 MB
Clock speed
1000 MHz
Number of cores
4
Item number
49595533

General information

Manufacturer
Varia
Category
Development boards + Kits
Manufacturer no.
397845
Release date
19.9.2024

Development board properties

Development board type
Kit
Clock speed
1000 MHz
Memory
4000 MB
Number of cores
4
Flash memory
16000000 kB

Power supply

Power supply
Electrical connection
Operating voltage
12 V

Connections

Digital outputs
4
Digital inputs
9
Max. port speed
1000 Mbit/s
Max. SD storage capacity
16 GB

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 GHz Quad Jaguar core with 64 bit and AES-NI support, 12 V, 2 A power supply unit, 32K data + 32K instruction cache per core, APU3E4 system board, CPU: AMD Embedded G Series GX-412TC, Housing (colour: silver), Memory: 16 GB mSATA SSD module, shared 2 MB L2 cache

Product dimensions

Length
60 mm
Width
60 mm
Height
60 mm
