Series: 2002
Wire size: 22 → 12 AWG
Wire gauge: 2.5 mm²
Color: Green/Yellow
Rated current: 24 A
Connection type: Plug in
Operating voltage: 800 V

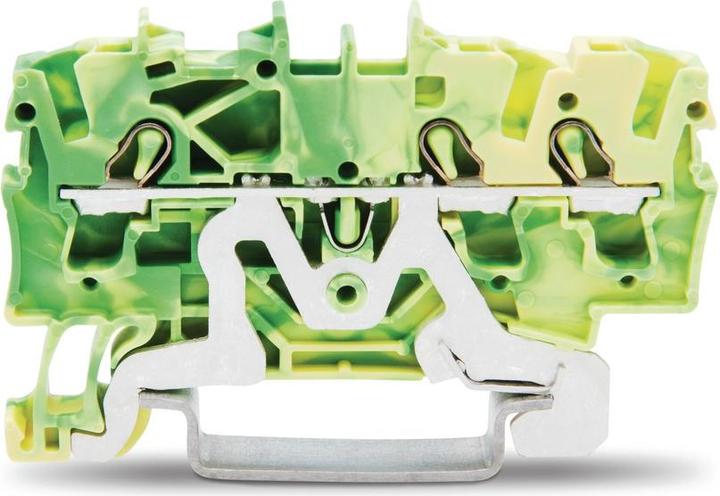

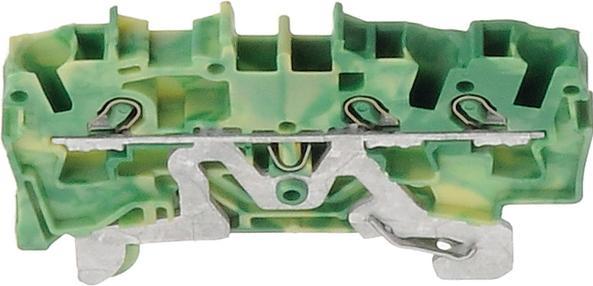

UL, cURus, CSA, NV, CCA-DK/NL, PTB EEx and II. TOPJOB series V/J: 3 conductor / 2.5 mm² terminal blocks. Terminal blocks for DIN rails TS 35 use CAGE CLAMP® technology and are up to 30% smaller than standard terminal blocks. Features and benefits include 3 conductors, direct insertion of rigid and flexible conductors with end tips (no tools required), a simple and fast bridging and testing system, and easy and fast marking/labeling with clip-on markers on the central strip of the terminal block.
