Wago Feed-through terminal
Price in EUR including VAT
Free shipping starting at 30,–

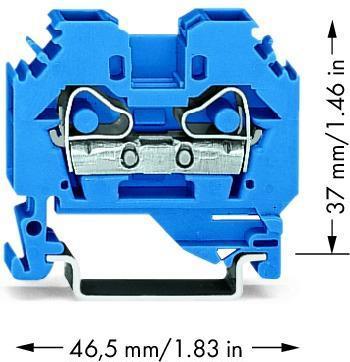

WAGO GmbH & Co. KG Through Terminal Block 282-104
Manufacturer: WAGO GmbH & Co. KG
Designation: Through Terminal Block 0.2-6 mm² blue
Type: 282-104
Connectable conductor cross-section for fine-stranded without ferrule: 0.2..6 mm²
Connectable conductor cross-section for fine-stranded with ferrule: 0.2..6 mm²
Connectable conductor cross-section for single-stranded: 0.2..6 mm²
Connectable conductor cross-section for multi-stranded: 0.2..6 mm²
Rated current In: 41 A
Rated voltage: 800 V
Electrical connection type 1: Spring clamp connection
Electrical connection type 2: Spring clamp connection
Number of levels: 1
Number of connection points per level: 2
Mounting type: DIN rail TH35
Material of insulating body: Thermoplastic
Operating temperature: 105 °C
Flammability class of insulating material according to UL 94: V0
Width: 8 mm
Height: 46.5 mm
Depth: 37 mm
Explosion-proof design "Ex e": yes
End plate required: yes
Color: blue
Internally bridged levels: no
WAGO GmbH & Co. KG Through Terminal Block 282-104: additional details
2-wire through terminal block 6 mm² suitable for Ex i applications
Side labeling holders for mounting rail 35 x 15 and 35 x 7.5
CAGE CLAMP® 6.00 mm² blue.
Item number | 20020541 |
Manufacturer | Wago |
Category | Electronics supplies + Casing |
Manufacturer no. | 282-104 |
Release date | 16.3.2022 |
Colour | Blue |
Compatible hardware | Various |
Manufacturer Type | 282-104 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 50 x |
Scope of delivery | Feed-through terminal 0.2-6mmq blue |
Length | 37 mm |
Width | 8 mm |
Height | 46.50 mm |
Weight | 11.48 g |
