Wago Fieldbus connector PROFIBUS D-Sub connector

Ratings
Currently out of stock
Free shipping starting at 30,–

Product details

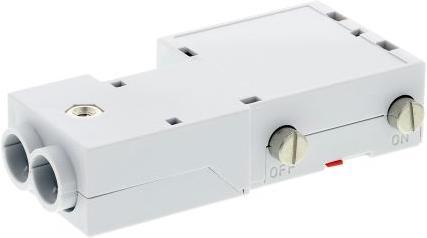

The fieldbus connector is used to connect a PROFIBUS participant to the PROFIBUS bus line.

The fieldbus connector is characterized by the following features:

  • Compact design, making it particularly suitable for connection to an S7 PLC.
  • No parts that can be lost.
  • 2 horizontal cable entries for input and output.

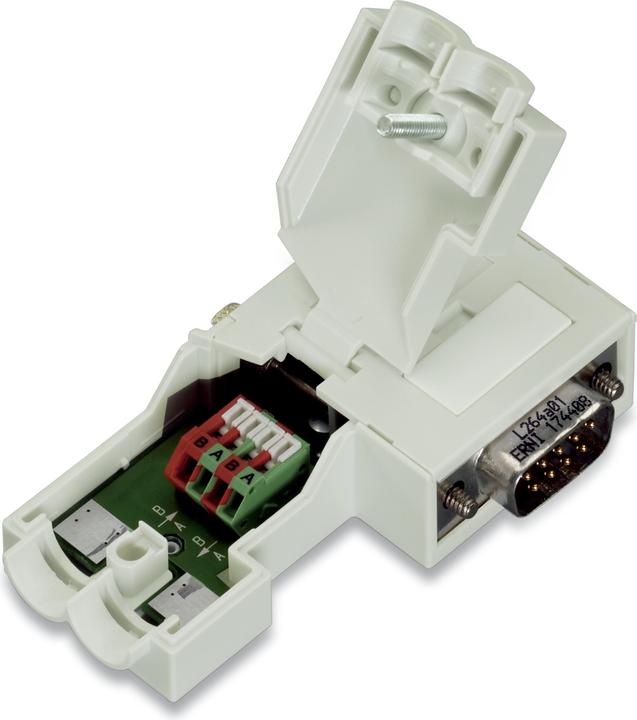

  • Fast and maintenance-free CAGE CLAMP® connection with lockable terminals via a push button.
  • Externally operable switch for turning the termination on or off.

For the first and last bus participant, the termination switch must be set to "ON" (termination resistor activated, outgoing bus line disconnected). For subsequent bus participants, it should be set to "OFF" (termination resistor deactivated).

Key specifications

Plug type
DC connector
Cable + connector type
Male
Item number
9724581

General information

Manufacturer
Wago
Category
Cables + Plugs
Manufacturer no.
750-971
Release date
24.9.2018
External links
Manufacturer's site (de)

Colour

Colour
Grey

Cable + Connector Features

Cable + connector type
Male
Plug type
DC connector
Compatible hardware
Various
Max. temperature
85 °C
Min. temperature
-25 °C
Manufacturer Type
750-971
Connectors Design
Plug, angled
Number of cores
9 x

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece
Scope of delivery
Fieldbus connector

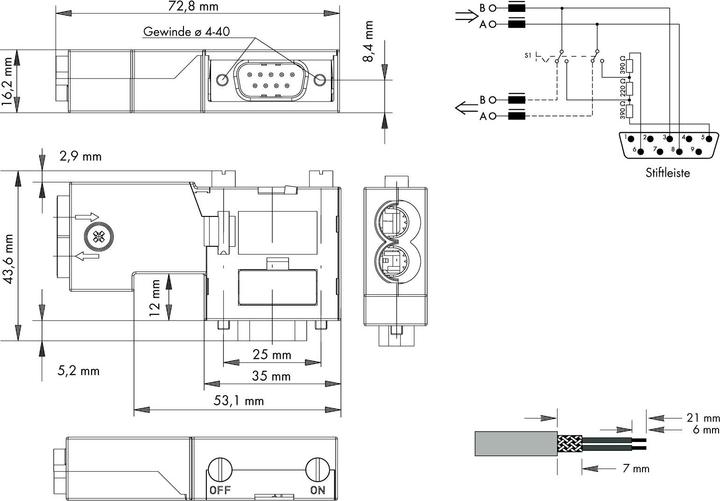

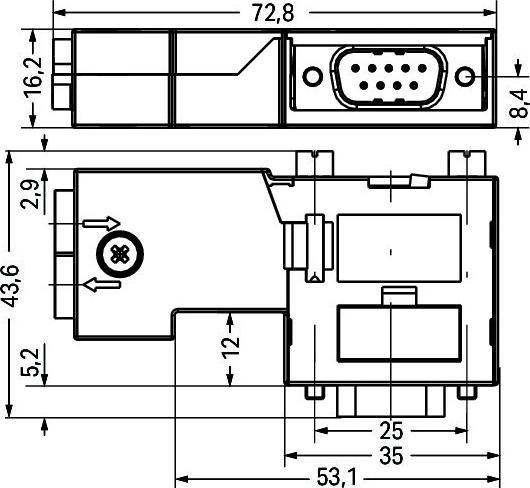

Product dimensions

Length
7.28 cm
Width
4.36 cm
Height
1.62 cm
Weight
45 g
