Series: 2002
Wire size: 22 → 12 AWG
Cable cross section: 2.5mm²
Color: Grey
Rated current: 24A
Number of levels: Triple
Type of connection: Plug in
Operating voltage: 600 V

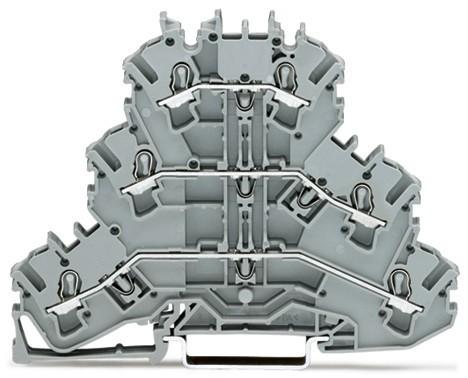

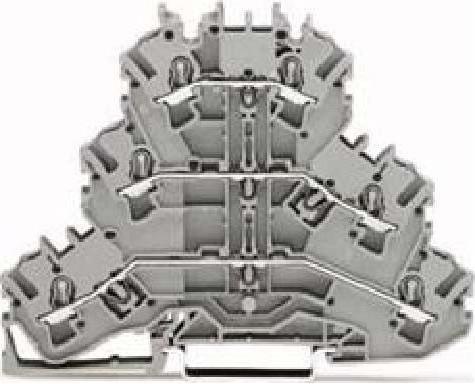

Triple terminal blocks. Three-level TOPJOB® S series terminal blocks for DIN rail 35, with CAGE CLAMP® S to reduce size to 30% compared to standard terminal blocks. Direct insertion of solid wires and flexible conductors with ferrules without tools. Simple and quick testing. Easy marking and identification. The markings are snapped into the middle band of the terminal block. 0.8 mm thick end plates and intermediate plates are available separately. Comb bridges and test sockets are available separately. Earth terminal block, green/yellow, 3-storey, 0.25-2.5 mm² (4 mm²). Through-connected terminal block, blue, 3-storey, 0.25-2.5 mm² (4 mm²). Number of conductors: 2 per floor. Number of floors: 3. Terminal width: 5.2 mm. Dimensions (L x H): 93.5 x 69.5 mm.
