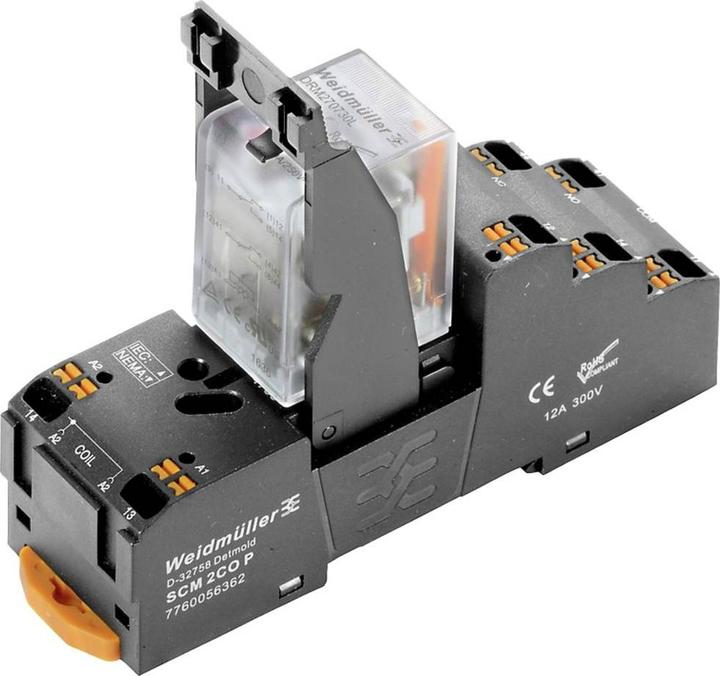

Weidmüller Coupling relay 24VAC

Price in EUR including VAT
Ratings
Delivered between Mon, 15.6. and Thu, 25.6.
5 items ordered
free shipping

Product details

The Weidmüller 24VAC coupling relay is a reliable component consisting of a plug-in relay and a plug-in base. It provides galvanic isolation between the control circuit and the load circuit, enabling safe and efficient control of electrical loads. With an input voltage of 24 volts and a maximum output current of 10 amperes, this switching relay is ideal for various applications in automation technology. Its compact design and easy installation make it a practical solution for integration into existing systems. The relay is designed for a wide range of switching cycles and offers high switching performance, making it a robust choice for demanding applications.

  • Galvanic isolation between control and load circuits
  • Maximum switching capacity of 2500 VA
  • Two normally open and two normally closed contacts
  • High reliability with up to 20 switching cycles
  • Compact design for easy integration.

Key specifications

Relay type
Installation relay
input voltage
24 V
Output voltage
250 V
Electric current output
10 A
Output current type
AC

General information

Item number
34084568
Manufacturer
Weidmüller
Category
Relays
Manufacturer No.
2576070000
Release date
17.5.2023

Relay properties

Relay type
Installation relay
input voltage
24 V
Output voltage
250 V
Electric current output
10 A
Output current type
AC
Resistor
160 Ω
Switching function
Changer
Number of switching cycles
20000000x
Max. Switching capacity
2.50 kW

Smart home features

Smart home
Not compatible

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
29,26 kg
Climate contribution
EUR 0,74

Scope of delivery

Scope of delivery
10 pieces

Product dimensions

Length
82.30 mm
Width
30.60 mm
Height
101.80 mm
Weight
97 g
