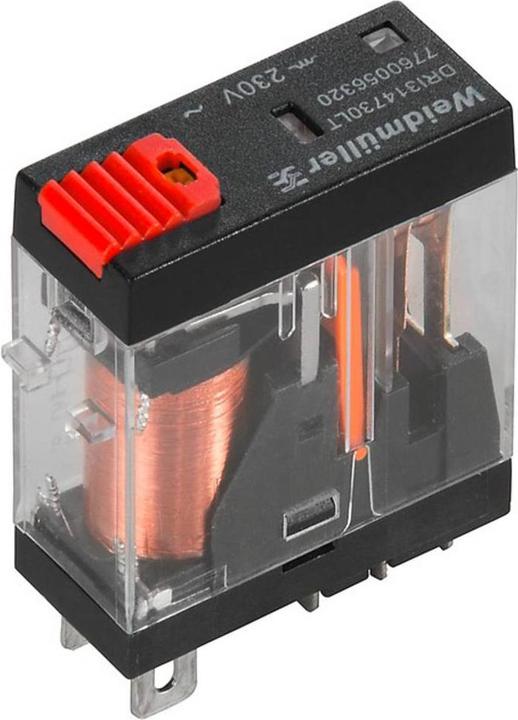

Weidmüller Switching relay 184-253V/AC 1W IP20 7760056320

Price in EUR including VAT
Ratings
Delivered between Mon, 15.6. and Thu, 25.6.
5 items ordered
free shipping

Product details

The Weidmüller switching relay is a compact and versatile device designed for switching, amplifying, and multiplying digital signals at low electrical loads. With an input voltage of 184 to 253 volts AC and a maximum switching current of 10 amperes, this relay is ideal for applications in automation technology and signal processing. Its small form factor allows for easy integration into various systems, while the high number of up to 10 million switching cycles ensures reliable performance over an extended period. The relay is also equipped with an IP20 protection rating, making it suitable for use in protected environments. It is an excellent choice for anyone seeking an efficient and compact solution for their switching needs.

  • Compact design for easy integration into systems
  • High switching capacity of up to 2500 VA
  • Long lifespan with up to 10 million switching cycles
  • Suitable for digital signals with low electrical loads.

Key specifications

Relay type
Switching relay
input voltage
184 V
Output voltage
250 V
Electric current output
10 A
Output current type
AC/DC

General information

Item number
32349663
Manufacturer
Weidmüller
Category
Relays
Manufacturer No.
7760056320
Release date
6.12.2022

Relay properties

Relay type
Switching relay
input voltage
184 V
Output voltage
250 V
Electric current output
10 A
Output current type
AC/DC
Resistor
23500 Ω
Switching function
Changer
Number of switching cycles
10000000x
Max. Switching capacity
2.50 kW

Smart home features

Smart home
Not compatible

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
29,26 kg
Climate contribution
EUR 0,74

Scope of delivery

Scope of delivery
20 pcs.

Product dimensions

Length
33.50 mm
Width
13 mm
Height
31 mm
Weight
19.56 g
