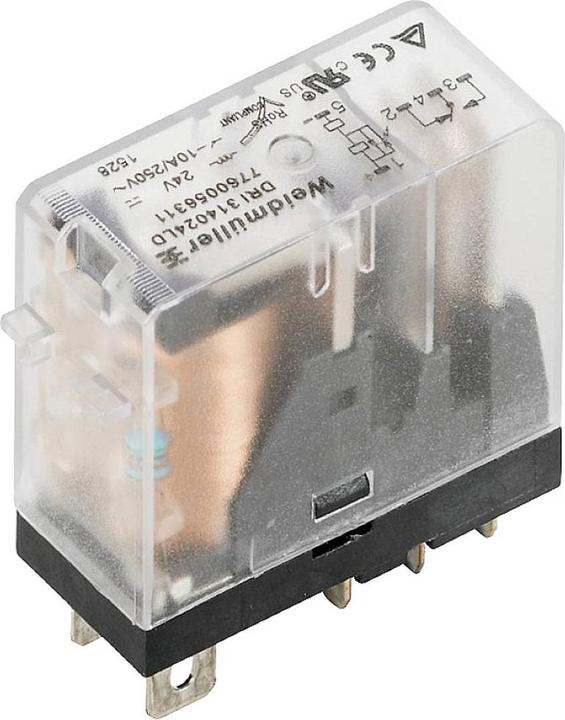

Weidmüller Switching relay 1W IP20 13x31x28mm 7760056304

Price in EUR including VAT
Ratings
Delivered between Thu, 11.6. and Tue, 23.6.
5 items ordered
free shipping

Product details

The Weidmüller switching relay is a compact and powerful device designed for switching, amplifying, and multiplying digital signals under low electrical load. With an input voltage of 24 volts and a maximum output current of 10 amperes, this relay is ideal for industrial applications where space and efficiency are critical. Its small dimensions of 13x31x28 mm allow for easy integration into various systems and control cabinets. The relay offers a maximum switching capacity of 2500 volt-amperes, making it a reliable choice for demanding applications. The changeover switching function provides flexibility in signal processing and enables precise control.

  • Input voltage of 24 volts for versatile applications
  • Maximum output current of 10 amperes
  • Compact dimensions of 13x31x28 mm for easy integration
  • Maximum switching capacity of 2500 volt-amperes for high efficiency.

Key specifications

Relay type
Switching relay
input voltage
24 V
Electric current output
10 A

General information

Item number
32349647
Manufacturer
Weidmüller
Category
Relays
Manufacturer No.
7760056304
Release date
6.12.2022

Relay properties

Relay type
Switching relay
input voltage
24 V
Electric current output
10 A
Resistor
1100 Ω
Switching function
Changer
Number of openers
1x

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
29,26 kg
Climate contribution
EUR 0,74

Product dimensions

Length
28 mm
Width
13 mm
Height
31 mm
Weight
19 g
