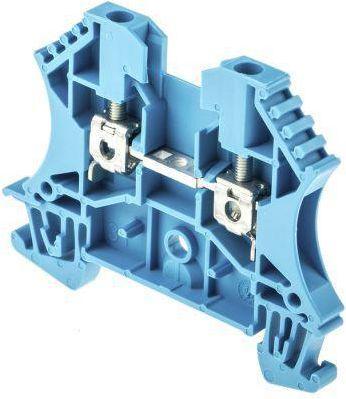

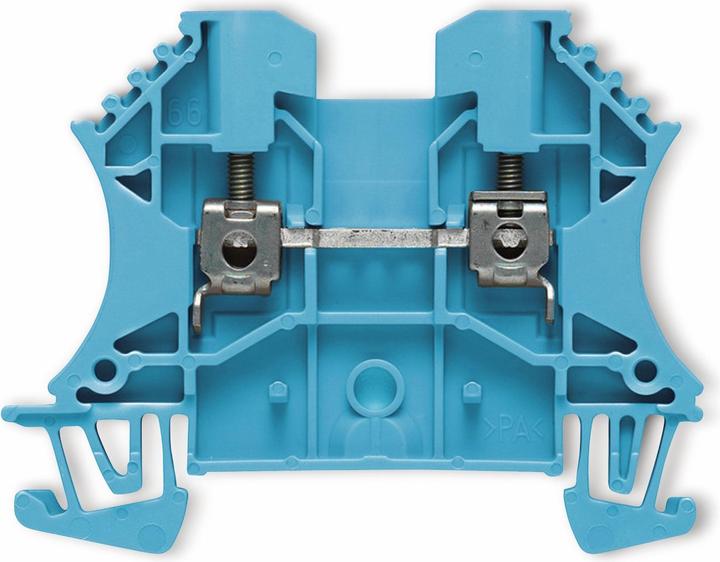

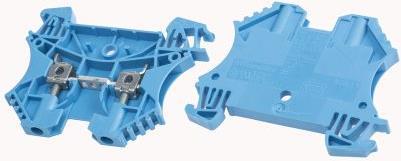

Series = WDU
Wire size = 30 → 12 AWG
Wire cross section = 2.5mm²
Color = Blue
Rated current = 32A
Number of levels = Single
Connection type = Screws
Operating voltage = 800 V
Operating temperature min. = -50°C
Operating temperature max. = +120°C
Approval for hazardous areas = ATEX

CSA approval, UL approval, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg. d. UDSSR. W-Series Terminal Blocks A major advantage of the W-Series is the choice of plug-in (ZQV) or screw (WQV) cross-connections within a modular terminal block. This offers significant time savings compared to other screw terminal blocks. Features and benefits. Terminal blocks in a range of colors Screw and plug-in cross-connection system for screw terminals. Product Application Information. Convenient components to build your terminal block with easy time-saving options. Thanks to the unique patented design, you can now easily connect two conductors with the same cross section in the same clamping point. A great solution when you want to link your assemblies together without risking electrocution or disconnecting cables. Simply place your terminal block, screw it on, and clamp it tight.
