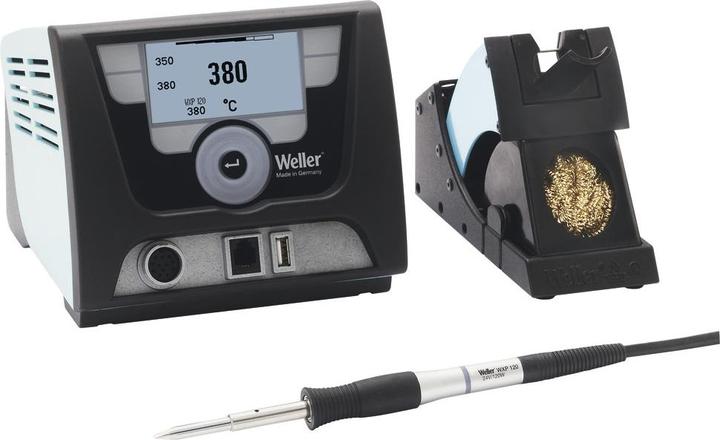

The Weller WX 1010 soldering set is a 1-channel supply unit that includes the WXP 120 soldering iron and the WDH 10 safety rest. The Weller multitool principle allows for the connection of various tools with different power levels to meet every need, thanks to its intelligent power management. The parameters of the intelligent WX soldering tools can be individually set and stored in the tool. They can be connected to any WX station and are immediately ready for use, providing significant time savings in the workplace. Active tools are displayed, and a ring light in the plunger indicates the heating cycle.

Features:

• Multilingual menu navigation
• High functionality
• No stop and go deposits necessary due to integrated usage sensor
• Higher accuracy and better temperature stability thanks to digital sensor evaluation in the piston
• Piston-specific parameterization via parameter memory in the piston
• Visual heating control by LED ring light
• Modern operating concept
• Robust touch screen made of antistatic real glass
• Intuitive operation via turn-click wheel with finger guide
• Graphic LC display with backlight
• Top-of-the-range XT family

Scope of delivery:

• 1 supply unit WX 1
• 1 soldering iron WXP 120
• 1 safety rest WDH 10
• 1 soldering tip XT B
• 1 mains plug
• 1 instruction manual

Technical data:
Power: 200 W
Temperature range: 100-550 °C
Dimensions (L x W x H): 170 x 151 x 130 mm
Channels: 1
Potential equalization socket: Yes
USB interface: Yes
Weight: 3.2 kg.
