2-Channel Soldering and Desoldering Station WXD 2010 with new Desoldering Iron WXDP 120. The WX family is expanded with a new WXD 2 2-channel soldering and desoldering station and the new desoldering iron WXDP120. These new, versatile soldering and desoldering stations are designed for professional repair work on electronic assemblies using the latest technology in industrial manufacturing and laboratory settings. As with all WX tools, the desoldering parameters can be easily programmed and stored in the tool. Power-sharing allows for individual and flexible selection of WX tools for any application area, up to a maximum power of 255 W. The WXDP 120 sets new standards for high-performance soldering and desoldering with a heating time of just 35 seconds.

Features:

• Digital, electronically controlled 2-channel soldering and desoldering station
• Soldering and desoldering tools with intelligent WX technology
• Connection to an external compressed air system for high vacuum
• Automatic shutdown of tools in idle mode
• ESD-safe glass display
• Easy and quick adjustment of soldering and desoldering parameters
• Cost savings, as only one power supply unit is needed for multiple applications
• Reduced rework due to optimal tool usage and correct working temperature
• Operating costs are lowered by extended service life of desoldering nozzles

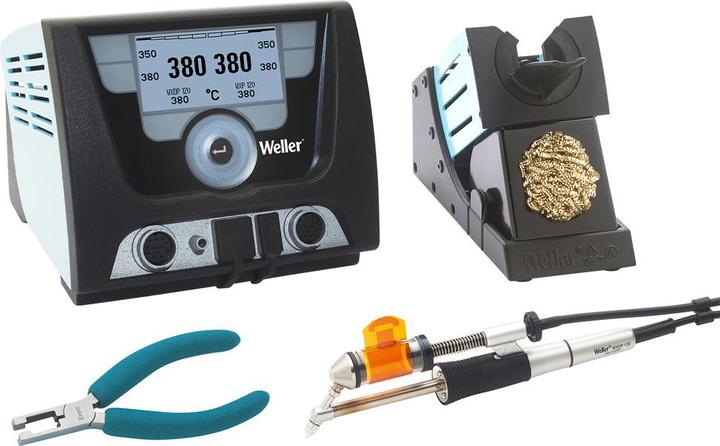

Delivery includes:
1 piece power supply unit WXD 2
1 piece desoldering iron WXDP 120
1 piece stand WDH 70
1 piece desoldering nozzle pliers PDN
1 piece suction nozzle XDS 1, inner diameter 1.4 mm
1 piece power plug
1 piece operating manual

Technical specifications:
Power: 200 W
Temperature range: 50-550 °C
Dimensions L x W x H: 174 x 154 x 135 mm
Channels: 2
Grounding socket: yes
USB interface: yes
Weight: 6.999 kg

Item number: COO53428399
Shop number: 806512.
