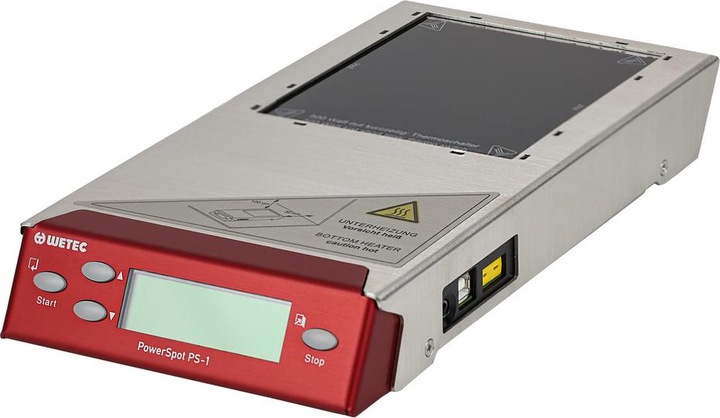

The PowerSpot infrared underheater has been specially developed for fast and gentle heating of PCBs. Particular attention was paid to achieving the most homogeneous temperature distribution possible. Mechanical stresses caused by localised overheating or cold edge zones are kept to a minimum. This makes the underheaters particularly suitable for processing large PCBs.

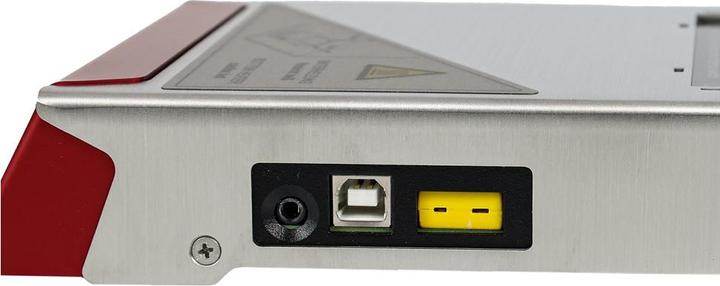

The underheater can also control devices (e.g. an extraction unit) or be controlled by an external device (PLC or foot switch). Interfaces are available for this purpose.

Features:

• Temperature-controlled or power-controlled operation
• Compact design for maximum ergonomics
• Infrared radiant heater with closed surface
• Simple operation thanks to optimised menu navigation
• autoprofiler function

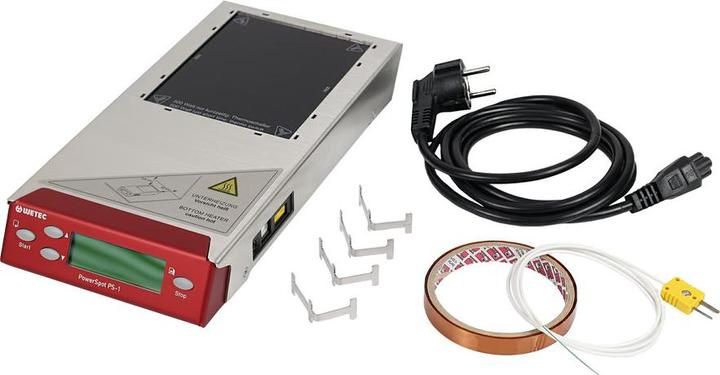

Scope of delivery:
1 PowerSpot underheater
1 sensor type K
4 pcb supports
1 power plug
1 operating manual

Technical Data:
Power: 50-500 W
Temperature range: 50-200 °C
Dimensions L x W x H: 300 x 150 x 40 mm
PCB size: max. 150 x 130 mm
Heatable surface: 105 x 130 mm
Weight: 1.2 kg

Attention: PCB holder not included in the scope of delivery

Item no.: MARHXWT.0050
Shop number: 800941.
