Zebra DS3678-HD

1D barcodes, 2D barcodes
Price in EUR including VAT
Delivered between Mon, 4.8. and Mon, 11.8.
More than 10 pieces in stock at supplier
free shipping

Product details

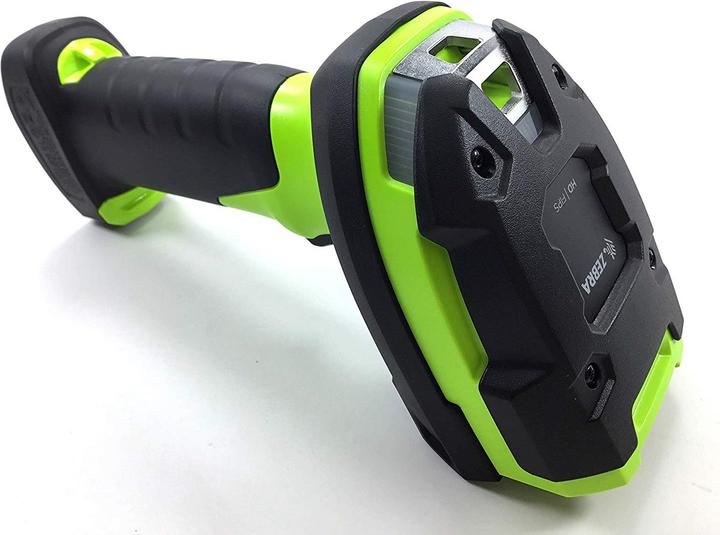

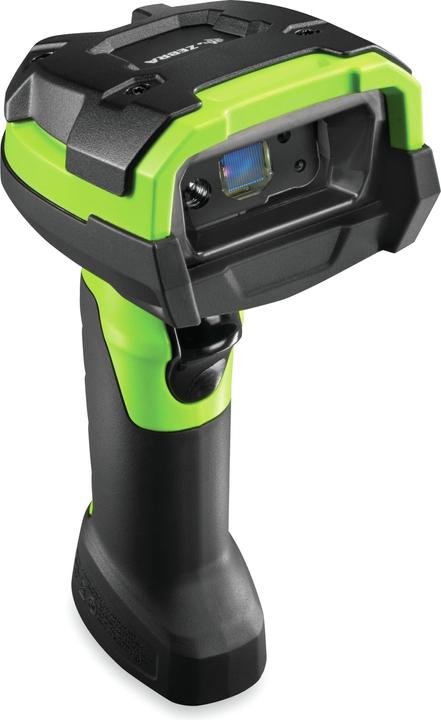

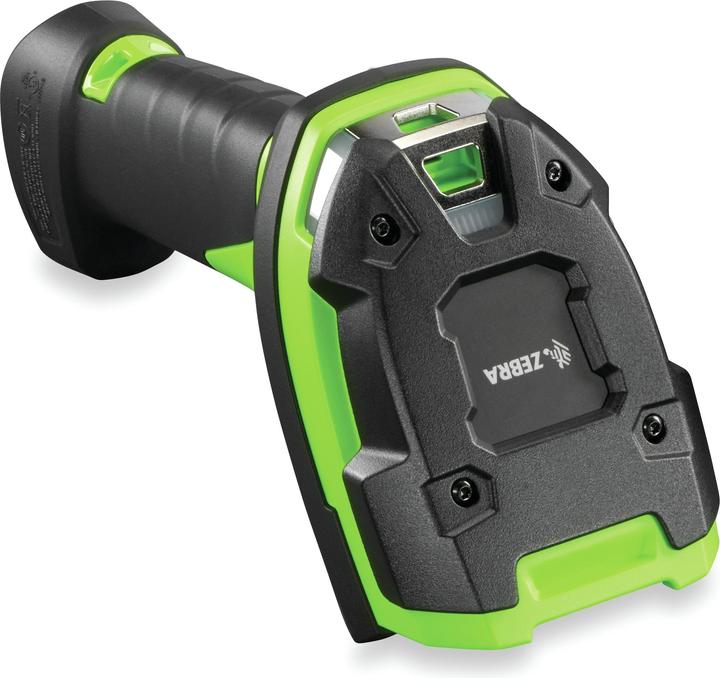

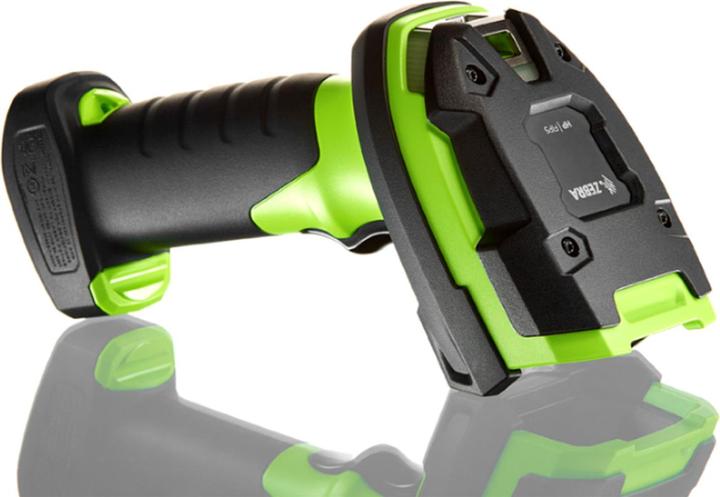

The rugged Bluetooth area imager Zebra DS3678 offers exceptional performance with extreme durability. Thanks to its innovative housing design and area imaging technology, it contains no moving parts. This makes the balanced handheld scanner nearly completely dust- and water-resistant (IP67) and provides drop resistance of up to 2.4 meters. The DS3678 is therefore perfect for any applications in harsh conditions both indoors and outdoors, even at extreme temperatures ranging from -30 to +50 °C. Additionally, this scanner series is the only one on the market to feature an IP65-certified Bluetooth charging/transmission station, which offers maximum energy efficiency and uninterrupted data exchange without interference from internal wireless networks.

Whether standard, ER, HD, HP, or DPM barcode, the DS3678 provides a dedicated variant for every application and quickly and reliably captures nearly all 1D and 2D barcodes at a range of up to 21 meters. The reading confirmation is provided through practical triple feedback: two bright LEDs in the line of sight, a clear tone, and a short vibration. This ensures clarity after each scan and significantly increases user efficiency.

Order separately: interface cables, charging/transmission station, power supply, power cable.

Key specifications

Scanner type
Hand-held scanner
Connections
RS-232USB
Signal transmission
BluetoothCableRadioWi-FiWireless
Documents
Item number
9877607

General information

Manufacturer
Zebra
Category
Barcode scanners
Manufacturer no.
DS3678-HD2F003VZWW
Release date
9.10.2018

Colour

Colour
Black
Exact colour description
BlackGreen

Barcode scanner properties

Scanner type
Hand-held scanner
Barcode Scanner Version
Scanner only
Scanning method
Imagers
Barcode Scanner Features
Keyboard inscription
Connections
RS-232USB
Signal transmission
BluetoothCableRadioWi-FiWireless
Protection type (IP code)
IP67
Max. Drop height
2.40 m

Reading properties

Scanner functions
1D barcodes2D barcodes
Minimum print contrast
15 %
Max- Scan distance
66 cm
Stack codes
Aztec CodeChina Han Xin CodeCodabar/MW7Code 11Code 128Code 39Code 93CompositesData matrixEAN / UPCGS1 DataBarMaxiCodeMicro QR CodeMicroPDF417MSI/PLESSEYPDF417QR codeTLC-39
Read angle lengthwise max.
45°
Read angle cross max.
45°

Display

Display functions
Tiltable

Wireless transmission

Wireless transmission
BluetoothRadio Frequency (RF)Wi-Fi
Max. range
100 m

Battery properties

Battery type
Li-ion
Capacity
3100 mAh

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
185 mm
Width
76 mm
Height
132 mm
Weight
309 g

Package dimensions

Length
21.50 cm
Width
10.10 cm
Height
9 cm
Weight
498 g
