Best Exsys products in the Controller cards category
On this page you'll find a ranking of the best Exsys products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Exsys Thunderbolt zu 3x PCIe Expansion Box
The EX-1019 is an external expansion box with three half-length PCI Express slots that can be connected to a computer with a Thunderbolt 3/4 or USB 4 port. It features one 2-lane and two 1-lane PCI Express slots with 5 and 3.3 volts, suitable for NVMe drives, graphics processors, or specialized PCIe cards for professional applications. Power can be supplied via either a plug-in power supply or the terminal block (20-24 VDC). No drivers or software installation is required.
- 3x half-length PCIe slots expandable via the Thunderbolt 3/4 or USB 4 port of the computer
- 2x PCIe x1 (1-lane, data rate: 8 GT/s), 1x PCIe x2 (2-lane, data rate: 16 GT/s)
- Supports both 5V and 3.3V add-on cards
- Fully compliant with PCI Express 3.0 specifications
- Additional Thunderbolt 3 / USB 4 port for cascading or peripherals
- Supports data transfer rates of up to 40 Gbit/s
- Power supply: 20-24 VDC via barrel connector or terminal block
- Integrated USB-C PD controller up to 60W, e.g., for charging the host laptop
- Robust metal housing, suitable for industrial applications
- Power LED indicator
Delivery includes:
EX-1019, USB-C cable (Thunderbolt 3 / USB 4) 1.0 m, power supply 20V/3.25A, mounting bracket, manual.
2. Exsys I/O multi card
The EX-44032 PCI-Express I/O card provides 32 serial RS-232 high-performance UART 16C950 outputs. It is designed to expand 32 additional serial outputs for PCs, small workstations, or servers via the PCI Express bus. The EX-44016 comes with four octopus cables. The EX-44032 does not require any external expansion modules. All outputs are routed externally via octopus cables.
3. Exsys PCI-E card 4x USB 3.2 Gen 1
The EX-11194 USB 3.2 Gen 1 PCIe card provides four external Super-Speed USB 3.2 Gen 1 ports. It is designed to connect multiple USB 1.1, 2.0, or 3.2 Gen 1 devices to your workstation, desktop, or server. It supports USB 1.1 Low-Speed (1.5 Mbps), Full-Speed (12 Mbps), USB 2.0 High-Speed (480 Mbps), and USB 3.2 Gen 1 Super-Speed (5 Gbps). This card is the perfect technology for external storage enclosures, digital cameras, webcams, scanners, and more. It is self-powered and supports 3.0 A of power at each port. The EX-11194 comes with a low-profile bracket that allows installation in slim PC cases with a maximum height of 8 cm.
USB 3.2 Gen 1 PCIe card with four external ports
Supports 3.0 A at each port
Compatible with Microsoft Windows Standard Open HCD drivers
Supports up to 123 devices
Fully compliant with PCI Express Gen 2 specifications
Backward compatible with USB 1.1 and 2.0
Hot swapping and plug-and-play
Chipset: Renesas D720201
Package contents:
EX-11194, low-profile bracket, CD, manual.
4. Exsys PCIe card 2P Parallel EPP/ECP incl.LowProfileB?gel,ASIX chipset
The EX-46001 PCI-Express parallel card provides a parallel SPP/EPP/ECP high-performance output. It expands your PC, workstation, or server with an additional parallel output via the PCI-Express bus. With the EX-46001, there are no conflicts with IRQ and I/O addresses, and it is PCIe Plug-and-Play compatible. The package includes a low-profile bracket for installation in slim PC cases.
PCI-Express x1 parallel card with one port
Interface: SPP (Standard Parallel Port), EPP (Enhanced Parallel Port), ECP (Enhanced Capacity Port)
I/O addresses and interrupts are assigned by the operating system, IRQ sharing
PCIe interface compatible with Rev. 1.0a to 3.0 specifications
Compatible with IEEE 1284-SPP/Byte/ECP mode
128 Byte FIFO Buffer
Package contents:
EX-46001, low-profile bracket, driver CD, manual.
5. Exsys EX-44041-2

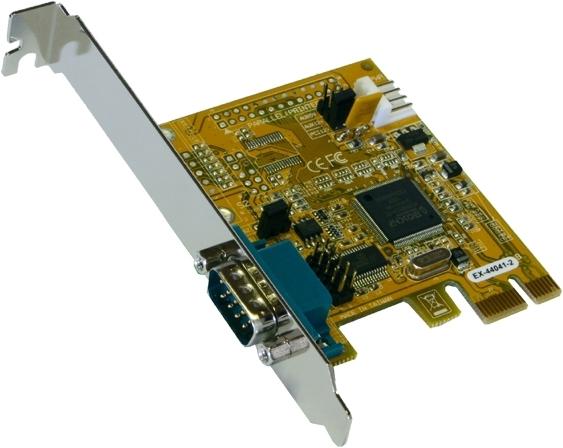

The EX-44041-2 PCI-Express I/O card provides a serial RS-232 high-performance UART 16C550 output. It is designed to expand an additional serial port for PCs, workstations, or servers via the PCI Express bus. The card is fully PCI-Express Plug-and-Play compatible and has no conflicts with IRQ and I/O addresses. Additionally, +5V or +12V can be configured on pin 9 of the serial connector for a POS system (Power over System).
Interface: RS-232 V.24
FIFO Buffer: 16C550 with 16 bytes
±15kV IEC1000-4-2 ESD protection for RS232 I/Os
I/O addresses and interrupts are assigned by the operating system, IRQ sharing
Data Bits: 5, 6, 7, 8 / Stop Bits: 1, 1.5, 2 / Parity: none, even, odd, space, mark
Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
PCI Express interface compatible with 1.0a specification
WHQL certified
Chipset: MosChip MCS9901CV
Package contents:
EX-44041-2, driver CD, manual.
6. Exsys GmbH USB 3.2 Gen2 PCIe (x2) card with 5 ports (3A+2C connections)
The EX-12006 USB 3.2 Gen 2x1 with PCIe Slot (Gen3x4) card provides five external super-speed+ USB 3.2 Gen 2x1 ports, including three USB-A and two USB-C connectors. It is designed to connect two additional USB 1.1, 2.0, 3.0, and 3.2 Gen 2 end devices to your workstation, desktop, or server. It supports USB 1.1 low-speed (1.5 Mbps), full-speed (12 Mbps), USB 2.0 high-speed (480 Mbps), USB 3.0 super-speed (5 Gbps), and USB 3.2 Gen 2x1 super-speed+ (10 Gbps). This technology is ideal for external storage, digital cameras, webcams, scanners, and more. The EX-12006 supports 3.0A power to the external USB 3.2 Gen 2x1 ports with USB-C connectors.
- USB 3.2 Gen 2x1 PCIe x4 card with three USB-A and two USB-C female connectors
- Compliant with USB 3.2 Rev. 1.0 and Intel xHCI Rev. 1.0 specifications
- Fully PCI Express Gen3 Specification compliant
- Compatible with USB Attached SCSI Protocol Rev. 1.0
- Supports hot swapping and plug-and-play
- Support at USB-A female port: 0.9 Amper / 5 Volt / 4.5 Watt
- Support at USB-C female port: 3.0 Amper / 5 Volt / 15.0 Watt
- Supports up to 127 USB devices (USB 1.1, USB 2.0, USB 3.0, and USB 3.2 Gen 2x1)
- Chipset: Asmedia ASM3142
Packaging contents:
EX-12006, Driver CD, Manual.
7. Exsys Pci-Express Card 8xserial
The Exsys PCI-Express 8x Serial Card is a powerful controller card that provides a reliable connection for serial devices. With eight RS-232 ports via a cable with 9-pin connectors, it allows for the simultaneous connection of multiple serial devices. This card is compatible with PCI Express x1 and also supports larger PCI Express slots such as x2, x4, x8, and x16, enhancing its flexibility in various system configurations. It is designed for use in operating systems such as MS Windows 2000, XP, and 2003 Server, and offers easy installation with the included driver and manual. The full-profile expansion card is ideal for applications requiring robust serial communication.
- Supports up to 8 serial RS-232 connections
- Compatible with various PCI Express slot sizes
- Easy installation with driver CD and manual
- Sturdy construction with a weight of 900 grams.
8. Exsys 2S Serial RS-232/422/485 PCIe Card Surge Protection & Optical Isolation (FTDI Chip Set)
The EX-45032IS PCIe I/O card provides two serial RS-232, 422, and 485 high-performance UART 16C550 outputs with 15KV ESD overvoltage protection and 2.5KV optical isolation. It is designed to expand two additional serial ports for PCs, small workstations, or servers via the PCIe bus. The card is fully plug-and-play compatible. It supports ATTATM Auto RS-485 transmitter features. For each port, the transmission type can be individually set to RS-232, 422, or 485. POS (Power over System) is not adjustable.
Controller cards
EUR178,95
Exsys 2S Serial RS-232/422/485 PCIe Card Surge Protection & Optical Isolation (FTDI Chip Set)
9. Exsys EX-44140-2 PCI Express

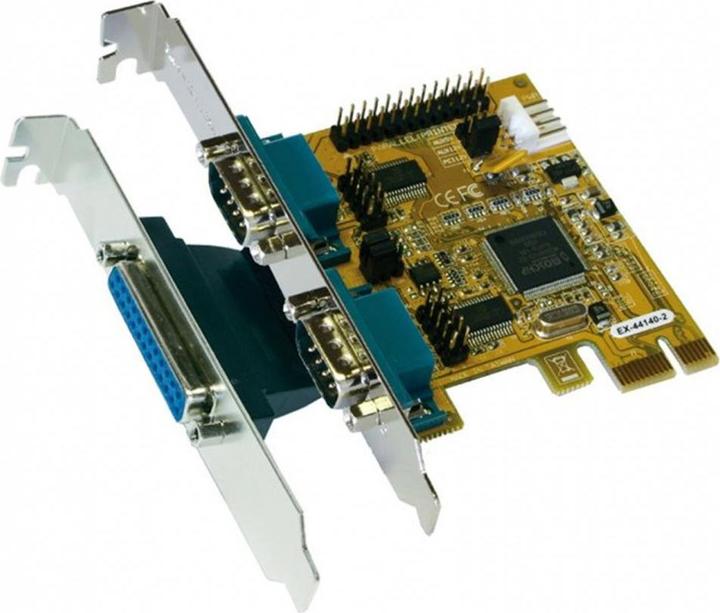

The EX-44140-2 PCI-Express I/O card provides two serial RS-232 high-performance UART 16C550 ports and one parallel EPP/ECP output. It is designed to expand two additional serial ports and one parallel Centronics port for PCs, workstations, or servers via the PCI Express bus. The card is fully PCI-Express Plug-and-Play compatible and has no conflicts with IRQ and I/O addresses. Additionally, +5V or +12V can be configured on pin 9 of the connector for a POS system (Power over System).
Interface: Serial RS-232 V.24 / Parallel EPP/ECP
FIFO Buffer: 16C550 with 16 bytes
I/O Addresses: assigned by the operating system
Interrupt: assigned by the system BIOS with interrupt sharing
Data Bits: 5, 6, 7, 8 / Stop Bits: 1, 1.5, 2 / Parity: none, even, odd, space, mark
Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
PCI Express interface compatible with 1.0a specification
Chipset: MosChip MCS9901CV
Package contents:
EX-44140-2, 25-pin slot adapter, driver CD, manual.
10. Exsys EX-1095, PCI Express to Expansion Box
The EX-1095 is a PCI-Express adapter for the expansion products EX-1030 (case with 4xPCI slot board), EX-1035 (4xPCI slot board without case), EX-1040 (case with 2xPCI and PCI-Express slot board each), and EX-1045 (2xPCI and PCI-Express slot board without case). The EX-1095 also comes with a low-profile bracket, allowing the card to be installed in small cases with a maximum height of 8 cm. Please note! The EX-1095 is only available optionally with the aforementioned EXSYS products and must be ordered separately.
PCI-Express slot adapter PCI Express Base compliant, specification: Revision 1.0a PCI Express Advanced Error Reporting, supports capability including ECRC, supports extended virtual channel (VC), supports active state link power management, supports wake event and beacon.
Main features: Network data transfer rate of 250 Mbit/s, connectivity technology wireless, connectivity host interface PCIe.
System requirements: Compatible operating systems Win 2000, XP, Server 2003, Vista, Linux, Mac OS.
Weight and dimensions: Width 45 mm, depth 120 mm, dimensions W x D x H 45 x 120 x 0 mm, weight 500 g.
Connectivity: Additional connections 1x DVI, cable included 1x DVI.
Technical details: Certification CE, FC, ROHS, WHQL, supported protocols ECRC, VC.
Operating temperature range: 32 - 131 °F. Climatic conditions: Humidity during operation 5 - 90%, temperature range during operation 0 - 55 °C.
