Best Finder products in the Transformer category
On this page you'll find a ranking of the best Finder products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

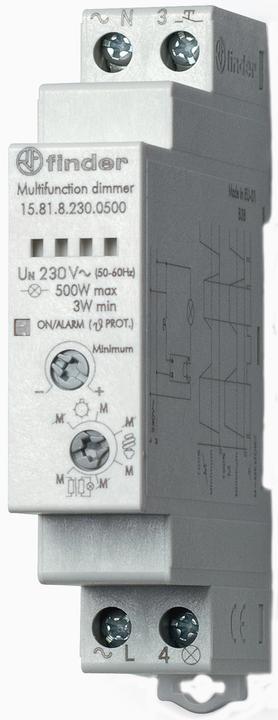

1. Finder Current surge switch/dimmer
The Finder pulse switch/dimmer 15.81.8.230.0500 is a versatile device designed for use in electrical installations. It allows for the control of light sources and offers both leading-edge and trailing-edge dimming. With a nominal voltage of 230 V and a maximum switching capacity of 500 W, this dimmer is suitable for various types of lamps, including incandescent and halogen lamps. The integrated memory function ensures that the last set brightness is retained even after the light is turned off. The dimmer is intended for mounting on a DIN rail and features a compact design that allows for easy integration into existing systems. Operation is via a selector switch that provides two modes for three types of lamps, and the minimum brightness can be individually adjusted. The Finder pulse switch/dimmer is a reliable solution for flexible lighting control in residential and commercial spaces.
- Leading-edge and trailing-edge dimming
- Integrated memory function for saving brightness settings
- Two modes selectable for three types of lamps
- Adjustable minimum brightness
- Suitable for mounting on DIN rail.
2. Finder Impulse switch with dimmer, series 15.51.8.230 15.51.8.230.0400 230 V/AC 1 NO contact/dimmer 230 V/
Description Impulse switch with dimmer, series 15.51.8.230 Also suitable for electronic ballasts of halogen lamps Electronic impulse switch for flush-mounted boxes or chassis mounting with dimmer and integrated memory function (last selected brightness) for ""soft"" ON and OFF switching. Can be used with incandescent and halogen lamps. Features: 1 semiconductor output up to 400 W for connection to 230 V/AC. Technical data: Operating voltage: 230 V/AC Contact type: 1 NO/dimmer Product dimension, width: 50 mm Product dimension, length: 49.5 mm Switching capacity: Min. 15 W/Max. 400 W Switching voltage: 230 V/AC Switching current: - Protection class: IP40 Type: 15.51.8.230.0400 Ambient temperature: -10 - +50 °C Further technical data: Permissible contact load: incandescent/halogen lamps (230 V) 400 W, halogen lamps via transformer or electronic transformer Note: CE approval.
Transformer
EUR45,94
Finder Impulse switch with dimmer, series 15.51.8.230 15.51.8.230.0400 230 V/AC 1 NO contact/dimmer 230 V/
3. Finder Electronic dimmer, 15.11 15.11.8.230.0400
Electronic dimmer, 15.11 slave dimmer with phase-cut and phase-control dimming methods. Control input 0-10 V, adjustable load types for transformer and lamp loads up to 400 W, LEDs up to 100 W. The minimum brightness is adjustable. This electronic dimmer is used to regulate the lighting level. It can be controlled either via the optional master dimmer type 15.10 from Finder or by an analog signal from a higher-level building management system. The compact device is versatile as it covers a wide range of different lamp types, including dimmable LEDs or dimmable energy-saving lamps up to 100 W, halogen lamps, electronic or electromechanical transformers, as well as ballasts up to 400 W.
Technical data:
- Width: 17.5 mm
- Color: Gray
- Weight: 53 g
- Rated voltage: 230 V/AC
- Rated voltage range: 110 - 230 V/AC
- Product dimensions, height: 60.8 mm
- Switching power: 400 W
- Protection class: IP20.
