Kws Door holder 1011
1 PieceMore than 10 items in stock at supplier
Product details

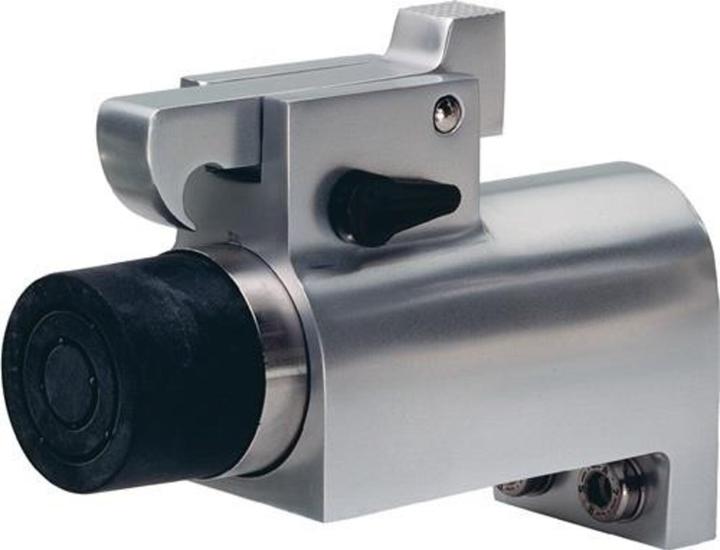

Scope of delivery: Door stop 1011.02 aluminum painted in silver

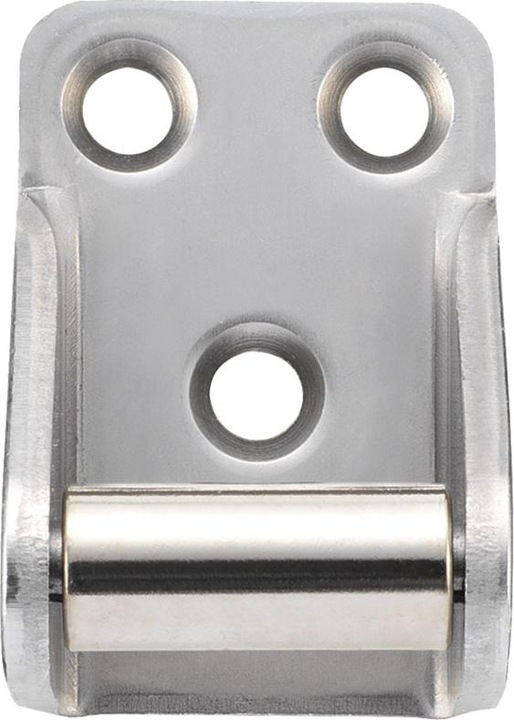

Product description: Aluminum, roller bracket made of steel, with mounting materials, black rubber buffer, spring-loaded. Maximum door weight usage is approximately 60 kg. Function: To lock, the door is pushed against the stop until the catch hook clicks into place. To release, the catch hook is activated while simultaneously pressing the door against the stop. Moving the switch lever from position A to B releases the locking mechanism. The stop then functions only as a spring-loaded buffer. Installation: The mounting bracket is attached to the wall with two screws and dowels at the greatest possible distance from the door hinge, the door stop is then slid on and secured with two screws. The roller bracket is to be screwed onto the appropriate spot on the door.

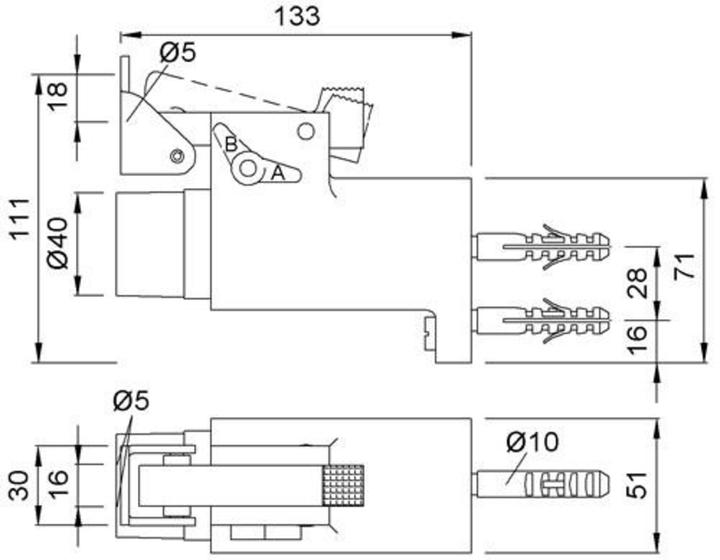

Technical data:
- Width: 51 mm
- Length: 133 mm
- Depth: 133 mm
- Height: 111 mm.
