Philips Lighting Control Gear HF-M RED 118 SH

Manufacturer: Philips Lighting
Name: Control Gear ECG
Type: HF-M RED 118 SH
Design: Electronic
Multiwatt Design: No
Dimming 0-10 V: No
Dimming 1-10 V: No
Dimming DALI: No
Dimming DSI: No
Dimming DMX: No
Dimming Potentiometer (integrated device): No
Dimming GPRS: No
Dimming LineSwitch: No
Dimming manufacturer-specific: No
Dimming mains voltage modulation: No
Dimming phase cut: No
Dimming phase angle: No
Dimming programmable: No
Dimming RF: No
Dimming sine wave reduction: No
Dimming Touch and Dim: No
Dimming Zigbee: No
Dimming with push button: No
No dimming function: Yes

Suitable for lamp type HI: No
Suitable for lamp type HM: No
Suitable for lamp type HS: No
Suitable for lamp type LS: No
Suitable for lamp type T7: No
Suitable for lamp type T16: No
Suitable for lamp type T16-R: No
Suitable for lamp type T26: No
Suitable for lamp type T38: No
Suitable for lamp type T-R: No
Suitable for lamp type T-U: No
Suitable for lamp type TC-D: No
Suitable for lamp type TC-DD: No
Suitable for lamp type TC-DEL: Yes
Suitable for lamp type TC-F: No
Suitable for lamp type TC-L: No
Suitable for lamp type TC-QEL: No
Suitable for lamp type TC-S: No
Suitable for lamp type TC-SEL: No
Suitable for lamp type TC-T: No
Suitable for lamp type TC-TEL: Yes

Suitable for lamp power (1-lamp): 18 W
Suitable for number of lamps: 1
Suitable for lamp power: 18 W
Nominal voltage: 230-240 V
Housing: Plastic housing
With strain relief: No
Protection class (IP): IP20
Protection class: None

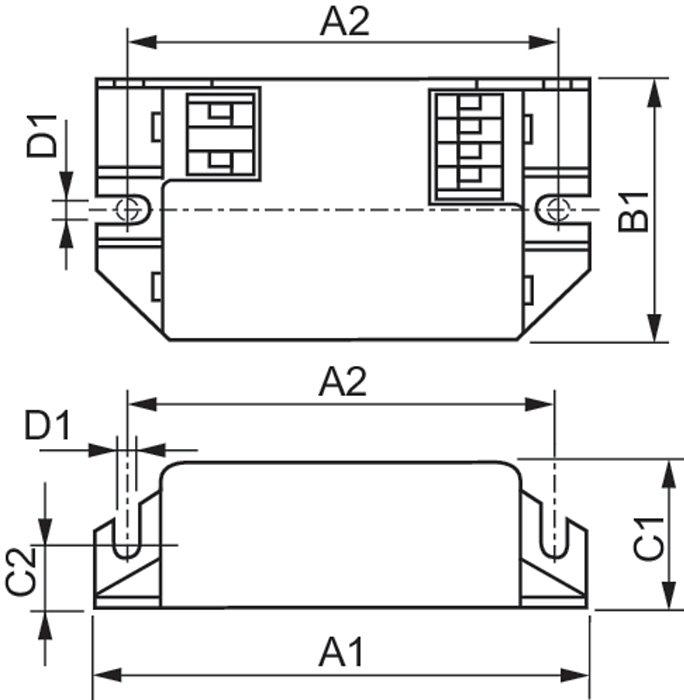

Length: 80 mm
Width: 40 mm
Height: 22 mm

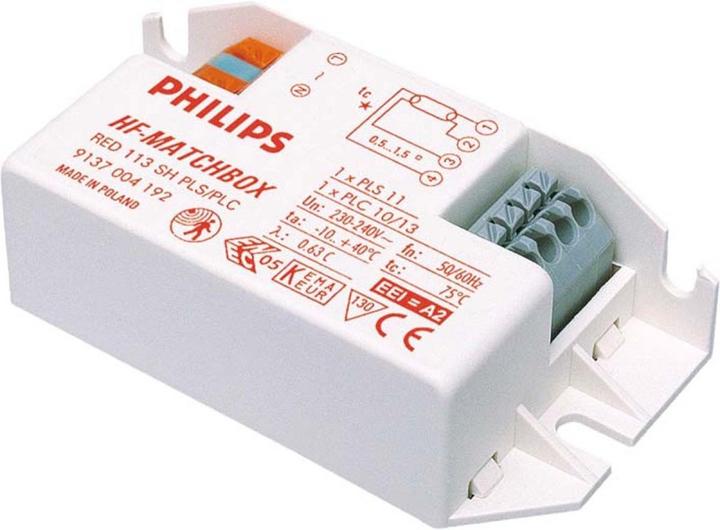

Philips Lighting HF-M RED 118 SH control gear: HF-Matchbox Red (Warm Start) is an electronic control gear that opens up entirely new design possibilities for lighting designers. The advantages of electronic control gears for compact fluorescent lamps can thus be utilized in an increasing number of applications, including lighting control systems.
