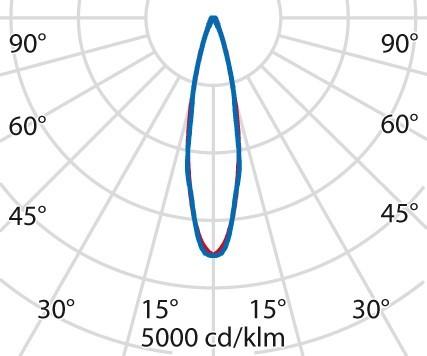

LED spotlight for outdoor and indoor use, made of a die-cast aluminum housing coated with a grainy gray polymer powder paint following a chemical surface treatment (ISO 9227). The diffuser is made of extra-bright hardened flat glass with screen printing applied on the inside and is firmly sealed to the housing with high-temperature resistant silicone adhesive. The optics consist of technopolymer lenses with increased light transmittance. The optical unit has been specifically designed for architectural lighting, allowing for precise light distribution without color deviation through the combination of internally developed optics and light sources.

The highly elastic, wear-resistant silicone gasket and the cable gland made of nickel-plated brass (M16x1.5) are suitable for cables with a diameter of 5-10 mm. External screws are made of stainless steel. The wall mounting bracket is also made of stainless steel and comes with a 1-meter long cable (H05RN-F 3G1 mm²). A stainless steel goniometer for directional adjustment is included in the package.

An accessory, the snoot, is suitable for versions with narrow beam light optics (C/l). The fixture is supplied with a converter and is compatible with RGBW. For the TW versions, please contact the company. The ELL 35x65 and 65x35 versions also require contacting the company. The TYK+ 10 RM versions belong to Class III, have no output cables, and may only be powered by the power supplies available as accessories.

Waterproof dimmable DALI2 power supplies with an IP66 protection rating are available in painted aluminum die-cast housings or on IP20 metal plates for installation in waterproof junction boxes. The electrical connection between the power supplies and the respective spotlights must be made via a cable with a maximum length of 20 meters. The RGBW and Tunable White versions should be powered at 48V DC with SELV drivers, which are available as accessories. Color management is done via the DMX interface. A DMX signal generator for the RGBW and Tunable White versions must be ordered separately.
