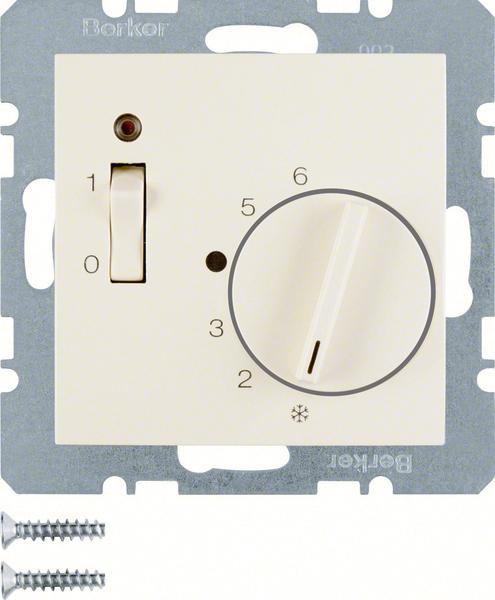

Berker Room Temperature Controller 20308982

Manufacturer: Berker
Description: Room temperature controller with normally open contact
Type: 20308982
Design: On/Off
Power Supply Type: 230 V AC
Connection: 2-Wire
With Receiver: No
Measuring Range: 5..30 °C
External Sensor: No
Thermal Feedback: Series
Control Characteristic: Other
Suitable for Heating: Yes
Number of Heating Outputs: 1
Suitable for Cooling: No
Differential Value: 0.5 K
Adjustable Differential: No
Temperature Readable: No
With Noise Level Indicator: No
Sensor/Probe Design: Bimetal
Mounting Type: Flush-mounted
With Display: No
Operation: Rotary
Concealed Operation: No
With Drinking Water Control: No
Contact Type: Normally Open (NC)
Max. Voltage of Contacts: 230 V
Max. Contact Load: 10 A
Protection Class (IP): IP20
Protection Class (NEMA): 1
Explosion-Proof: No
Color: White
RAL Number: 9001
Height: 71 mm
Width: 71 mm
Depth: 46 mm
Class of Temperature Controller: I
Power Consumption in Standby: 0 W
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT Support Available: No

Berker Room Temperature Controller 20308982: Additional Details
Temperature controller with normally open contact, central piece, rocker switch, and LED, with printing, regulation knob with temperature range limitation, with on/off switch and control LED for on, with thermal feedback, with separate connection for night setback, e.g., for actuator drives that are normally closed, without spread claws, with plug terminals, neutral wire required. When the set temperature is reached, the contact opens. Flush-mounted installation, standard program. Material: Plastic, thermoplastic, shatterproof, halogen-free. EAN: 4011334309420.
